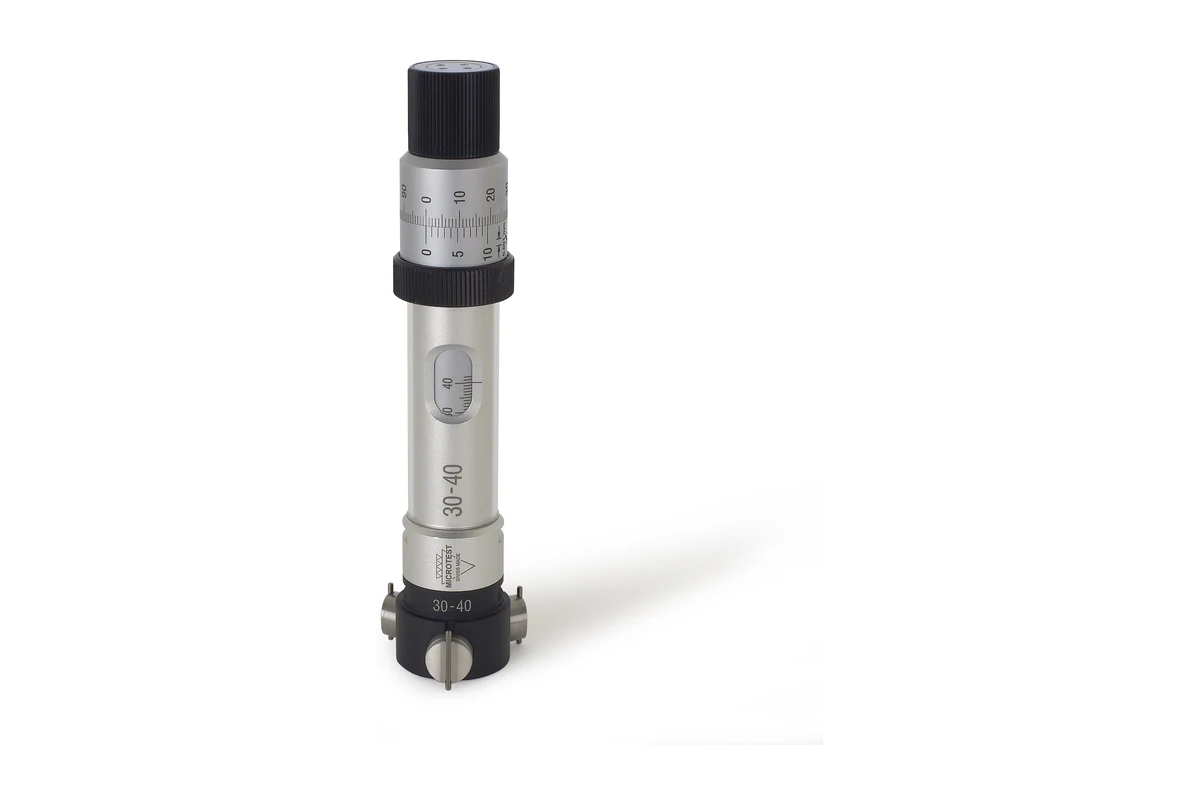

MICROTEST 30-40 mm - ausgefahren

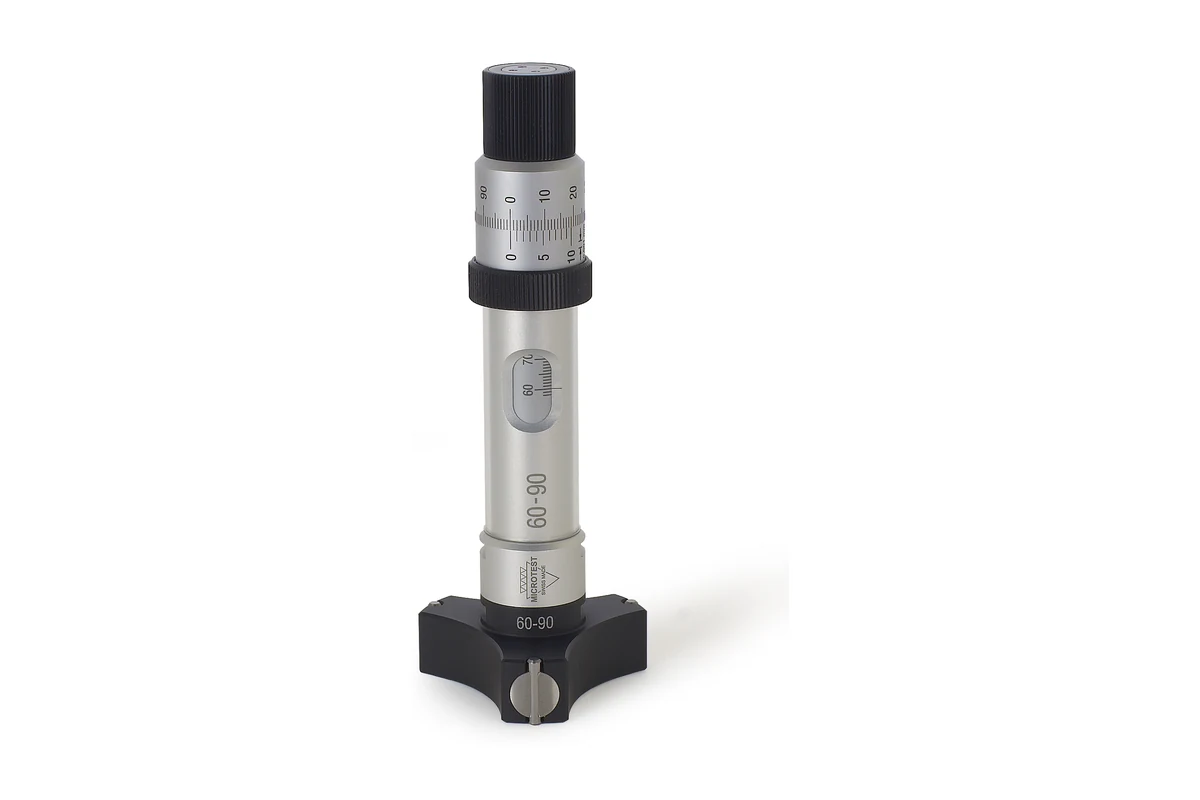

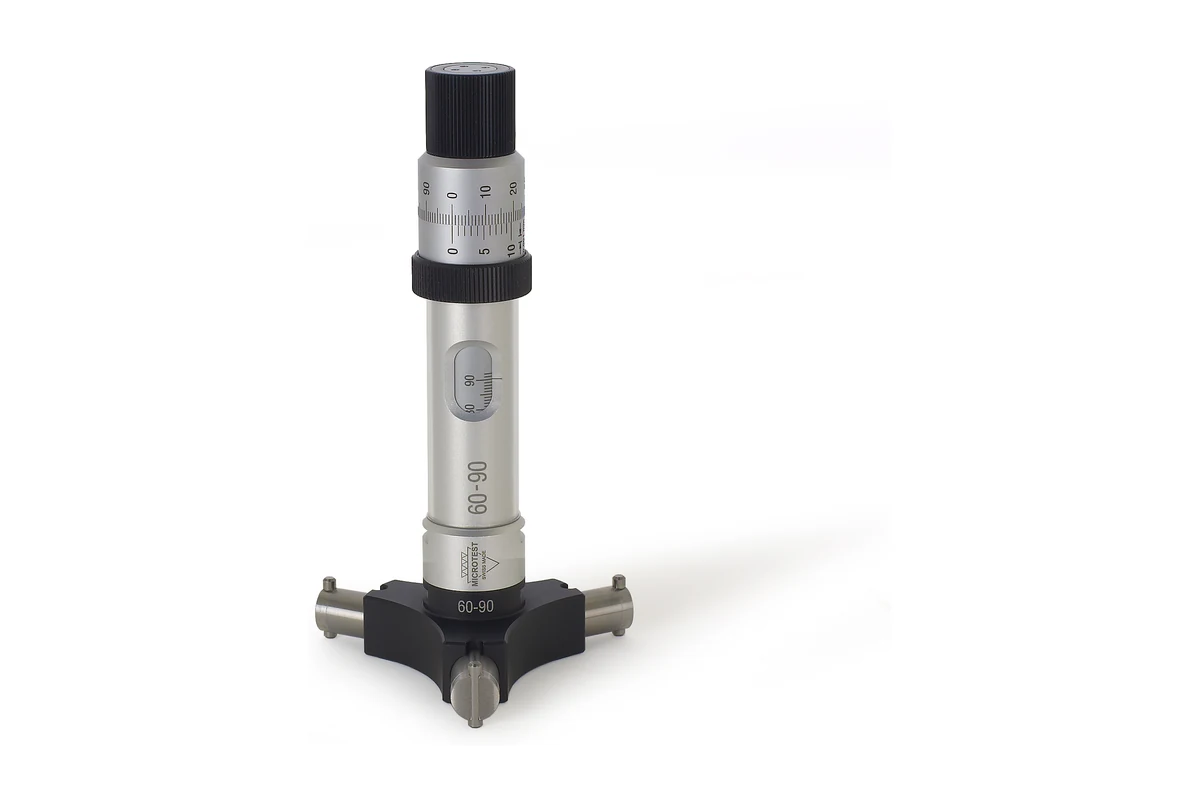

MICROTEST 60-90 mm - ausgefahren

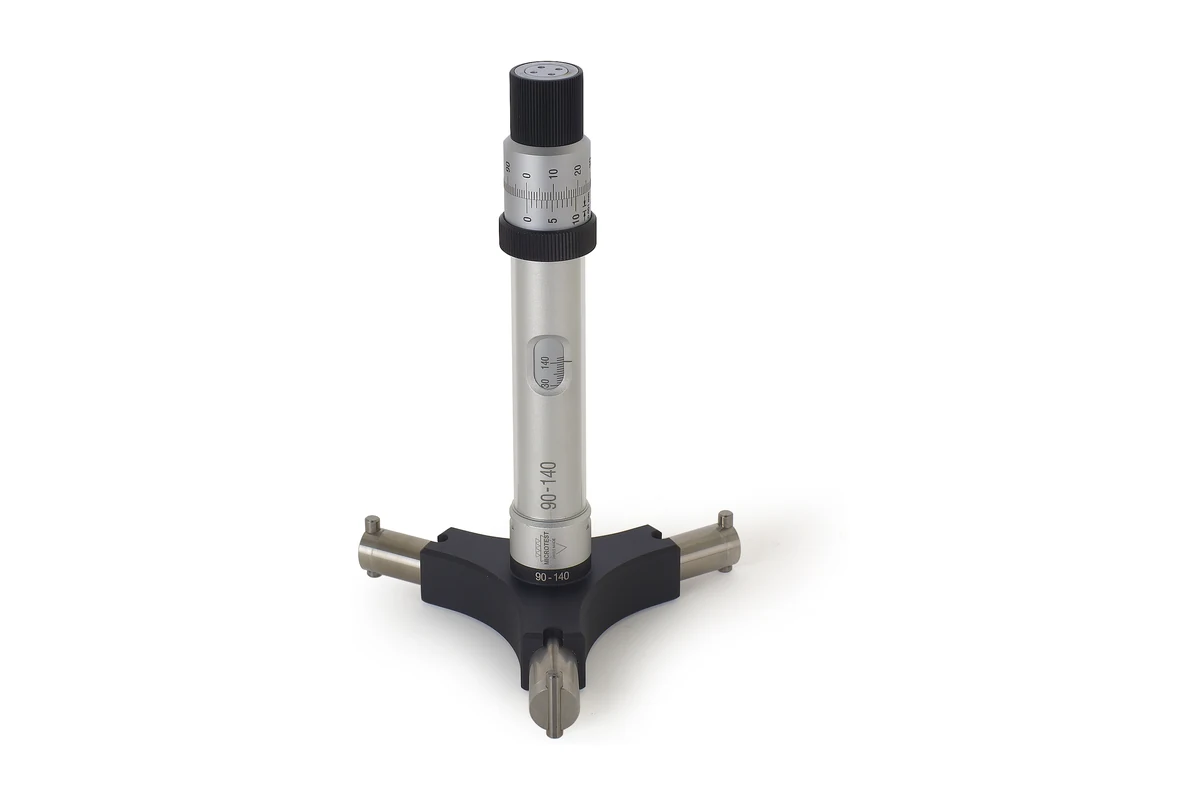

MICROTEST 90-140 mm - ausgefahren

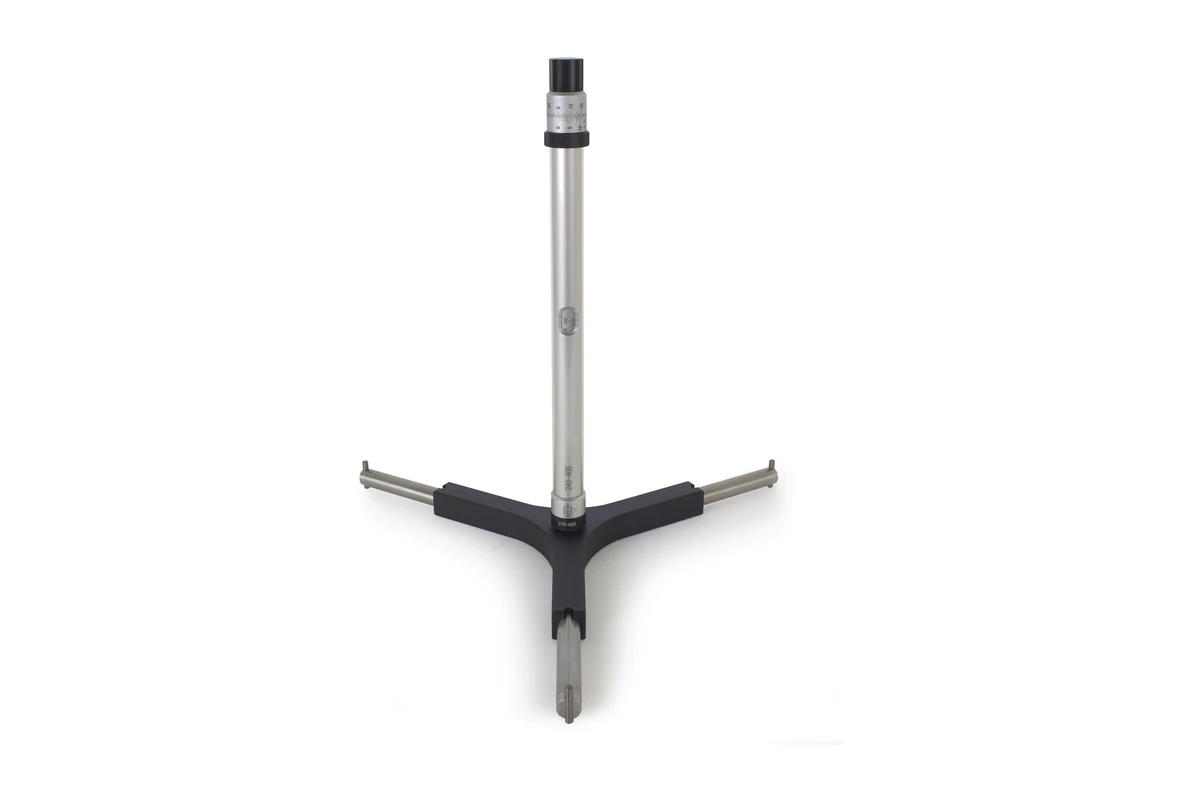

MICROTEST 240-400 mm - ausgefahren

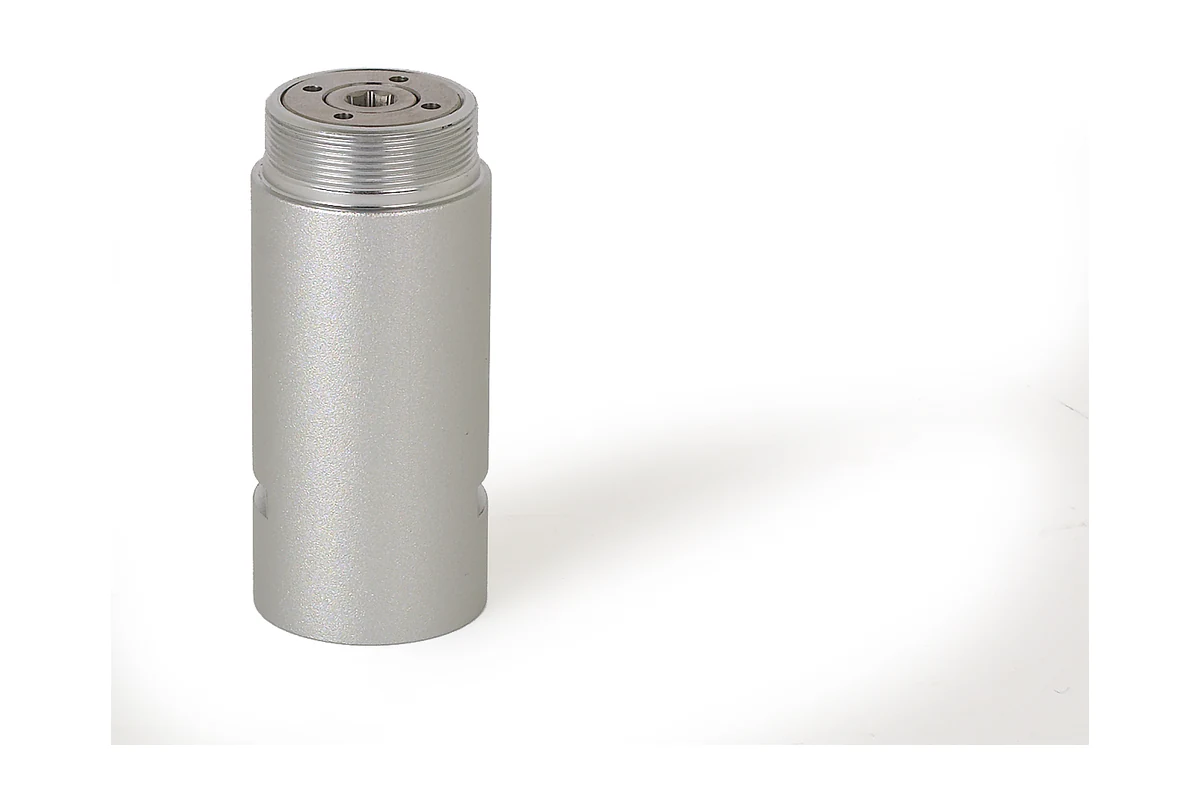

MICROTEST Verlängerung 50 mm

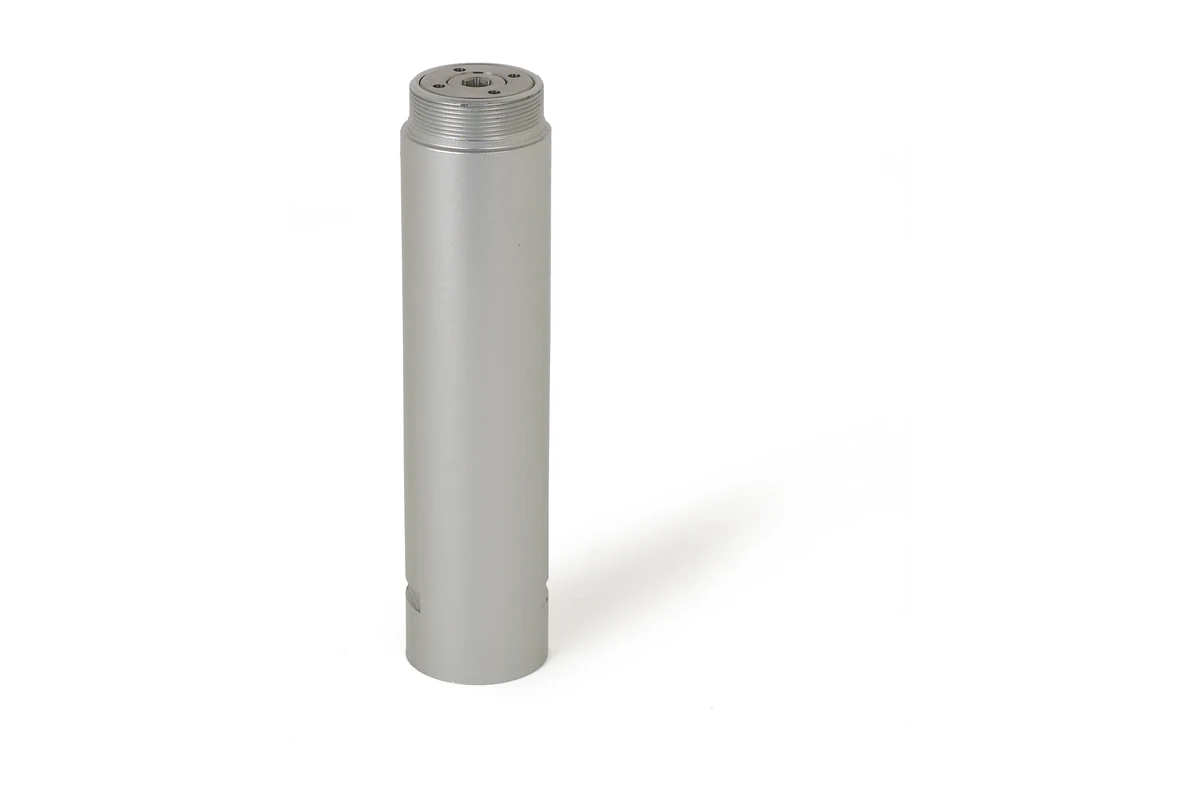

MICROTEST Verlängerung 100 mm

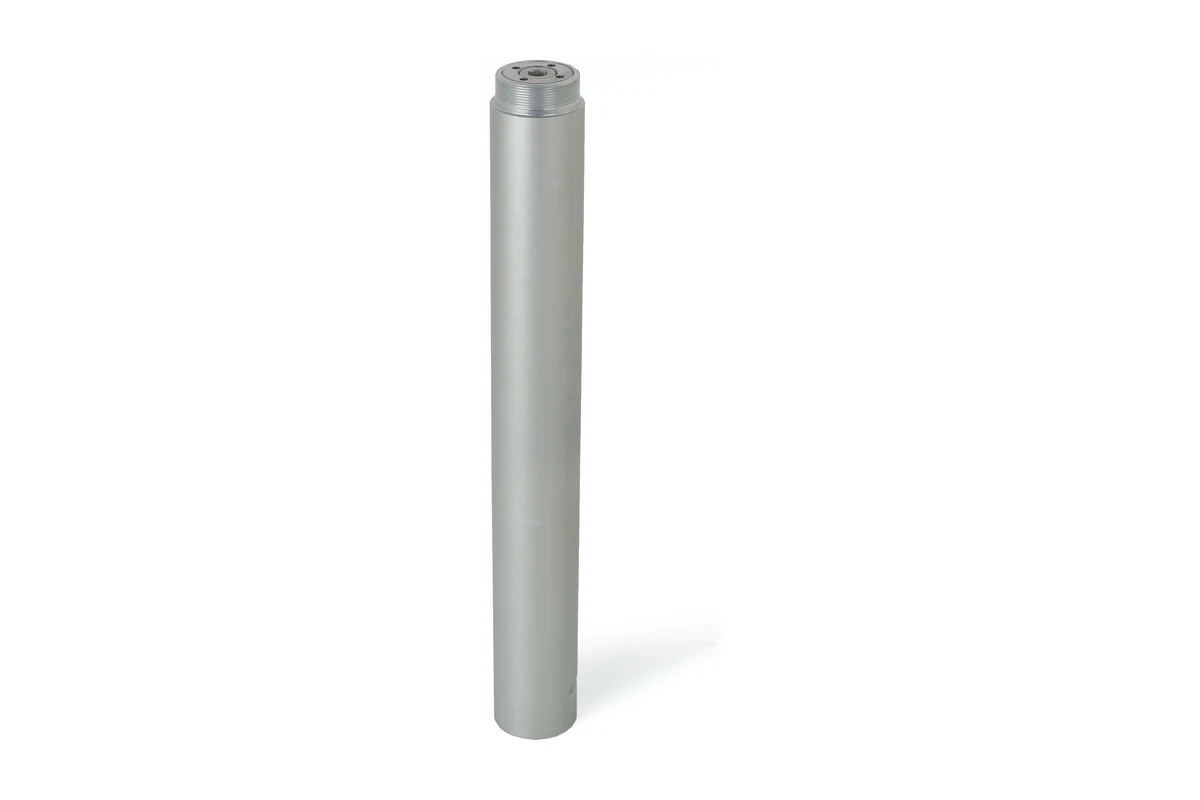

MICROTEST Verlängerung 200 mm
MICROTEST – MICROTEST
MICROTEST inside micrometers
Mechanical MICROTEST inside micrometers for through and blind bores with large measuring ranges from 30 to 1150 mm.
- For through and blind bores
- Large measuring ranges from 30 to 1150 mm
- 0.001 mm scale and parallax-free reading
- Carbide contacts, 1 mm spindle pitch and ratchet coupling
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Internal measurement of large diameters
MICROTEST inside micrometers are designed for bores beyond the range of conventional three-point micrometers. The imported versions cover 30 to 1150 mm and are suitable for through bores, blind bores and short centring recesses.
Wide range per instrument
Each instrument covers a comparatively large span, reducing the number of individual gauges required when diameters change. Different measuring depths are available according to size.
Mechanical precision reading
The 0.001 mm scale provides a parallax-free reading. A 1 mm spindle pitch and ratchet coupling support fast, consistent operation. Carbide pins provide wear-resistant measuring contacts.
Setting and system extension
Range-dependent error limits apply. Reference gauges and extensions support setting and use on particularly large workpieces; extensions to about 1500 mm are available on request. Ballbach provides calibration, repair and application advice.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Resolution | Measuring depth | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|

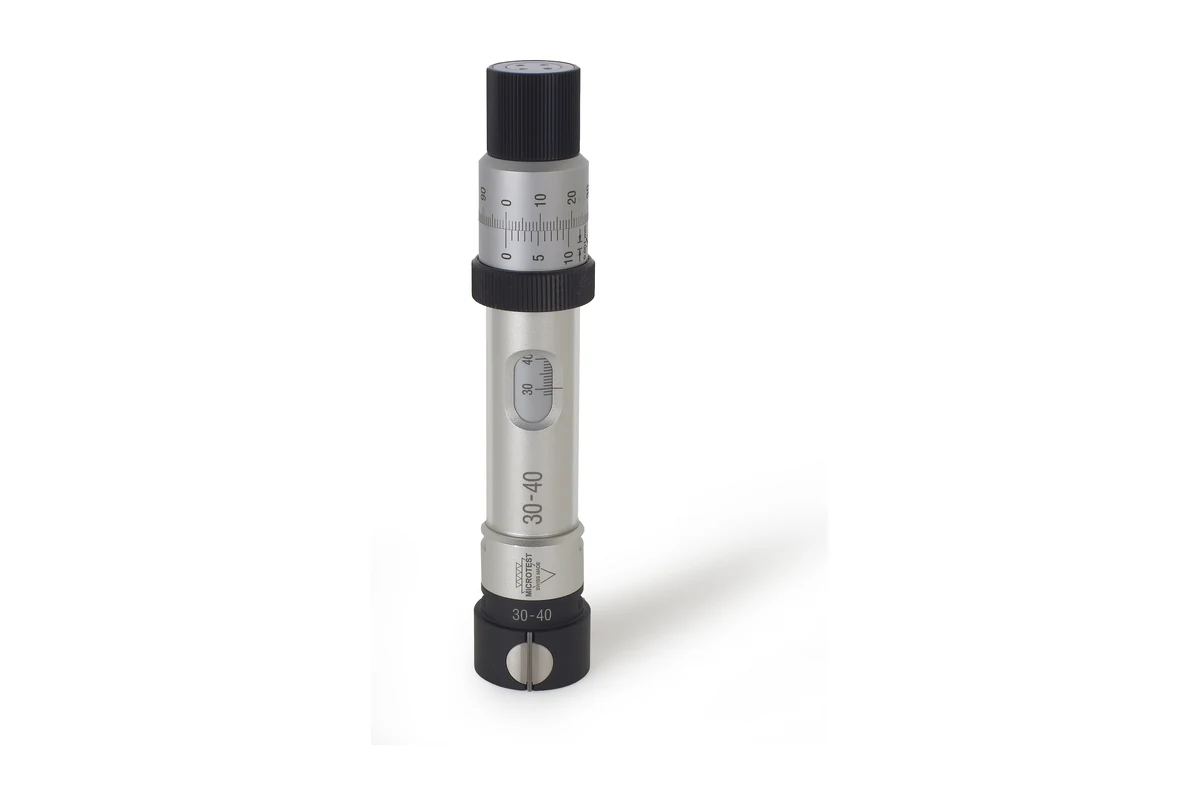

| 2534001 | Messbolzen mit Hartmetallstiften | 30-40 mm | 0,001 mm | 110 mm | €1,592.00 | ||
2534001 – Additional information about this version
MICROTEST 30-40 mm MICROTEST inside micrometer 30-40 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 30-40 mm; Resolution: 0,001 mm; Measuring depth: 110 mm. |
|||||||

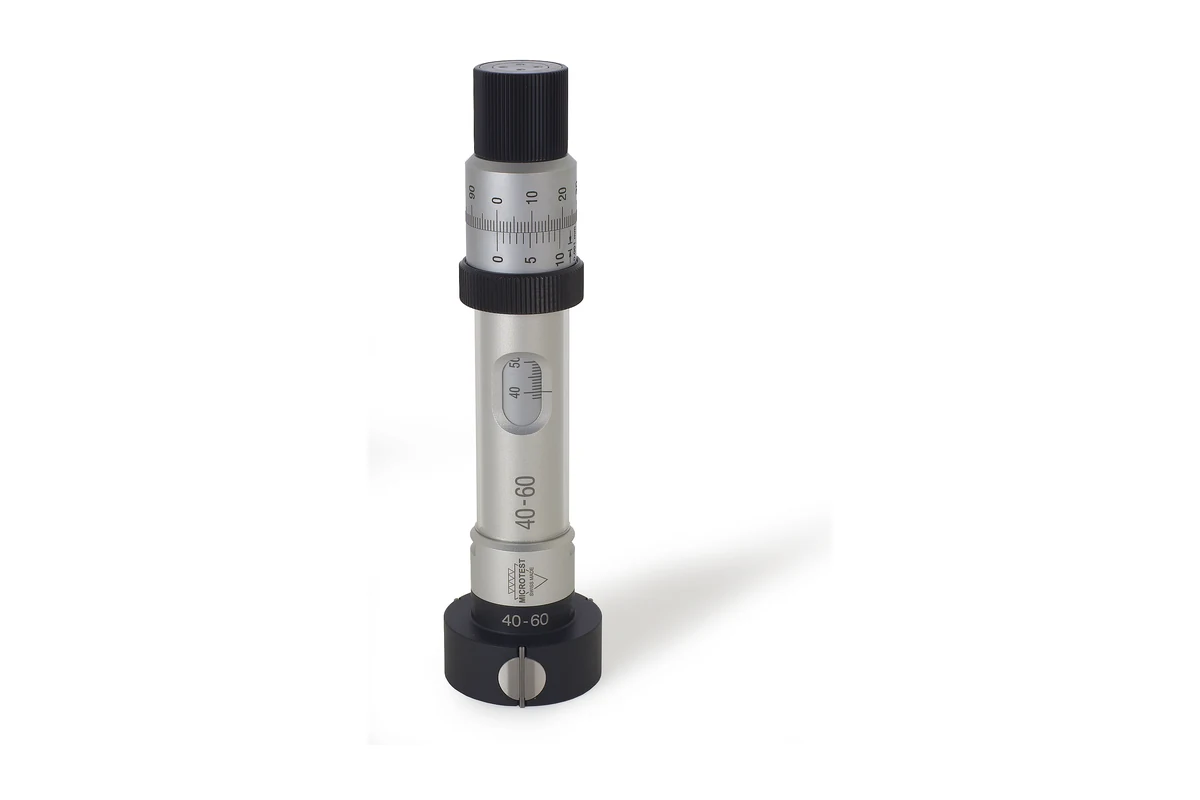

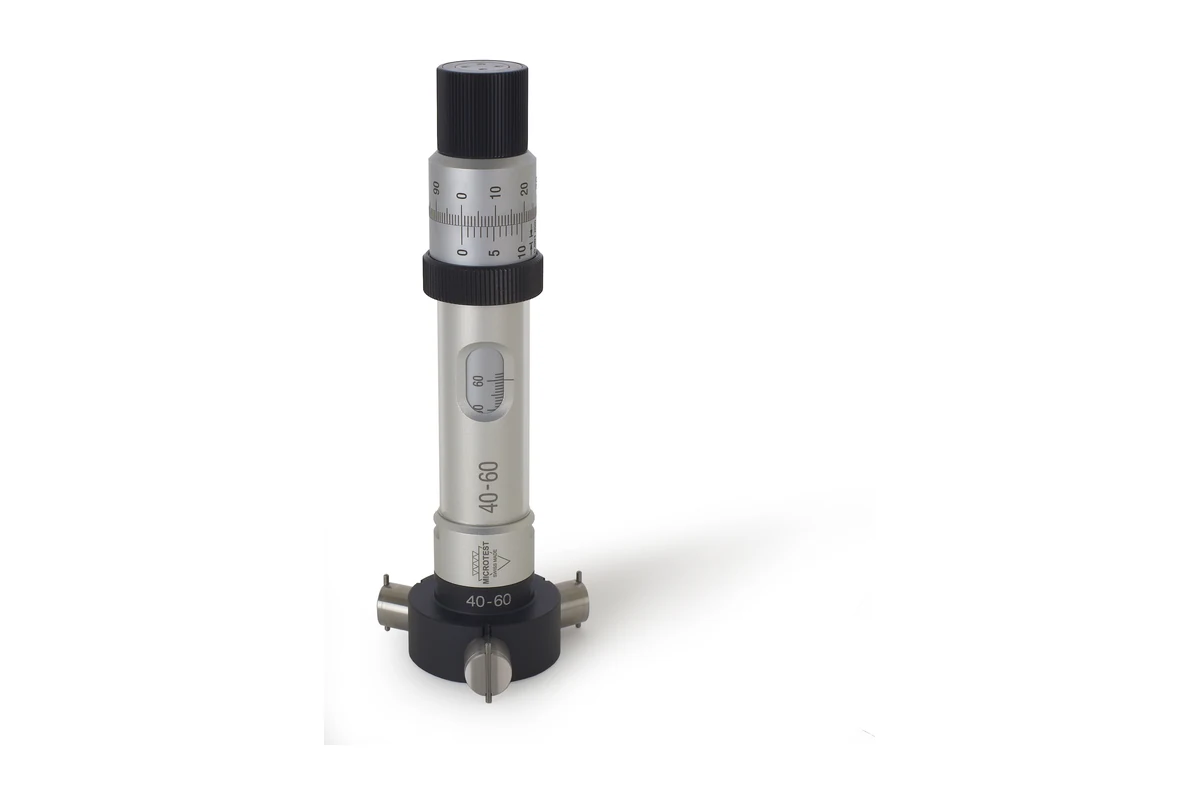

| 2534002 | Messbolzen mit Hartmetallstiften | 40-60 mm | 0,001 mm | 110 mm | €1,781.00 | ||
2534002 – Additional information about this version
MICROTEST 40-60 mm MICROTEST inside micrometer 40-60 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 40-60 mm; Resolution: 0,001 mm; Measuring depth: 110 mm. |
|||||||
| 2534003 | Messbolzen mit Hartmetallstiften | 60-90 mm | 0,001 mm | 110 mm | €2,432.00 | ||
2534003 – Additional information about this version
MICROTEST 60-90 mm MICROTEST inside micrometer 60-90 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 60-90 mm; Resolution: 0,001 mm; Measuring depth: 110 mm. |
|||||||

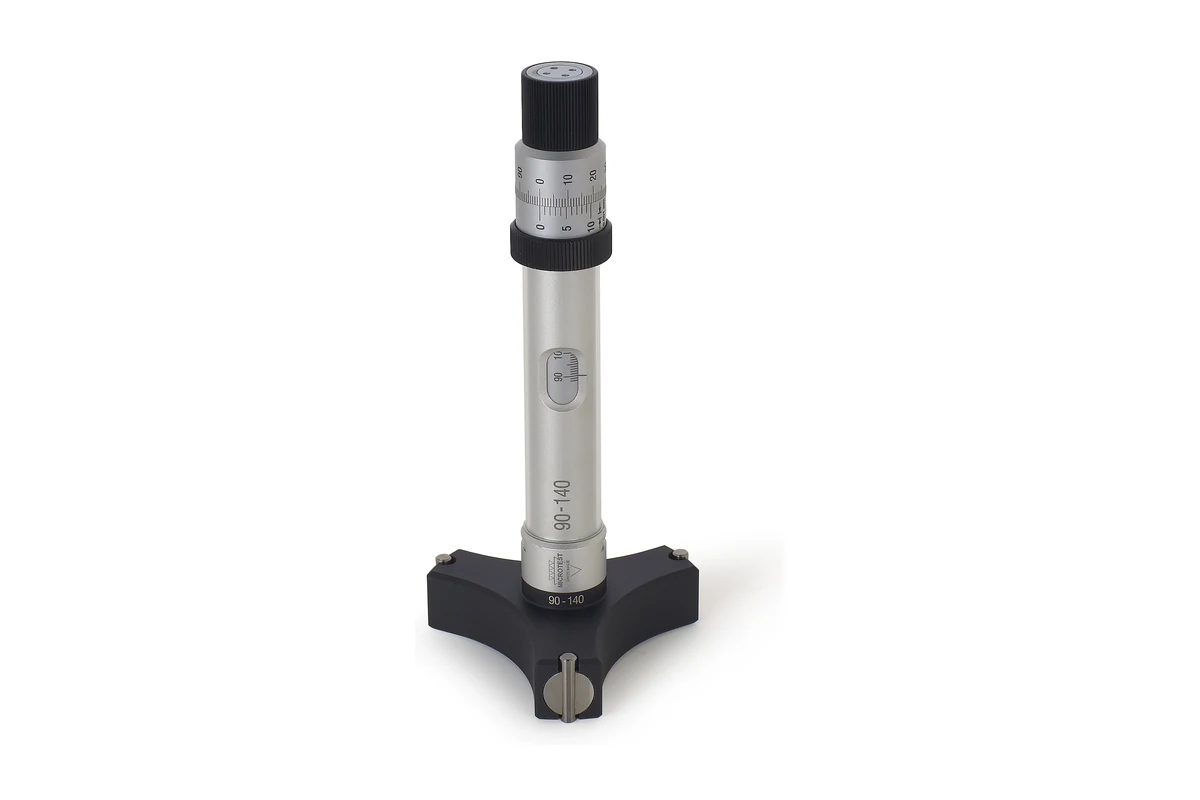

| 2534004 | Messbolzen mit Hartmetallstiften | 90-140 mm | 0,001 mm | 140 mm | €2,883.00 | ||
2534004 – Additional information about this version
MICROTEST 90-140 mm MICROTEST inside micrometer 90-140 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 90-140 mm; Resolution: 0,001 mm; Measuring depth: 140 mm. |
|||||||

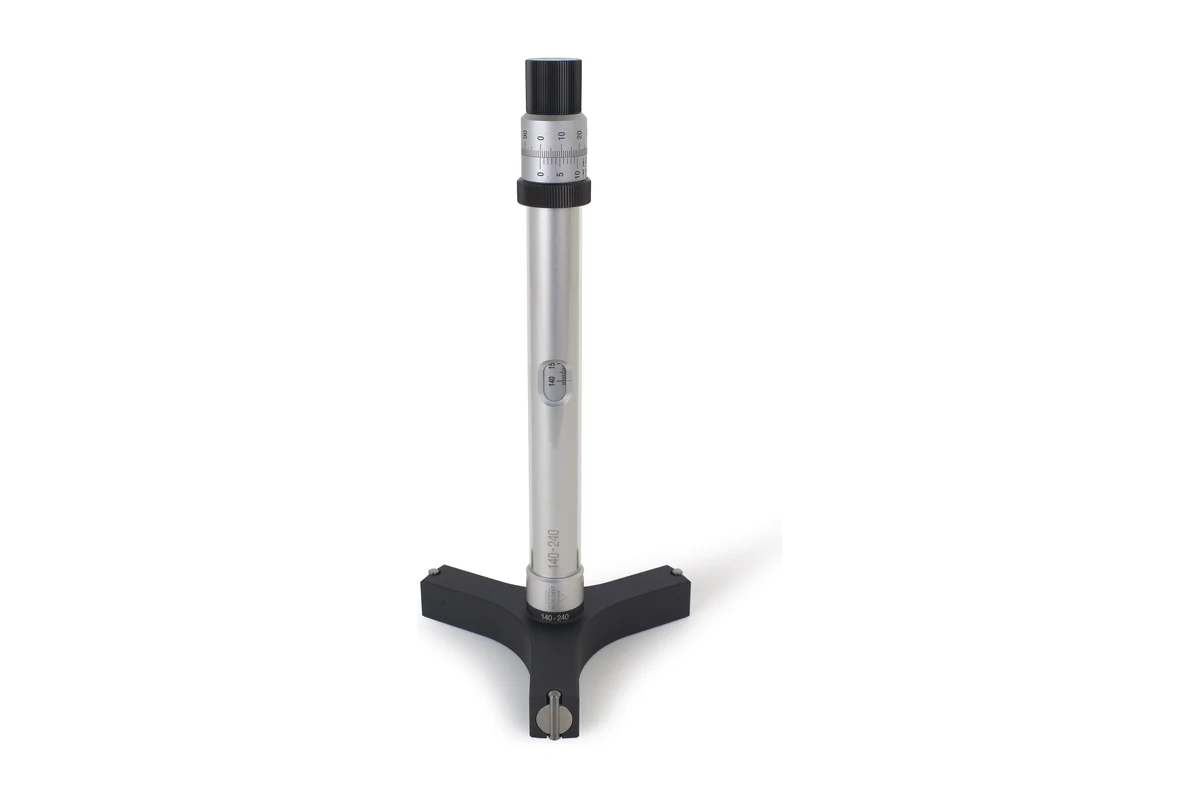

| 2534005 | Messbolzen mit Hartmetallstiften | 140-240 mm | 0,001 mm | 210 mm | €5,067.00 | ||
2534005 – Additional information about this version
MICROTEST 140-240 mm MICROTEST inside micrometer 140-240 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 140-240 mm; Resolution: 0,001 mm; Measuring depth: 210 mm. |
|||||||

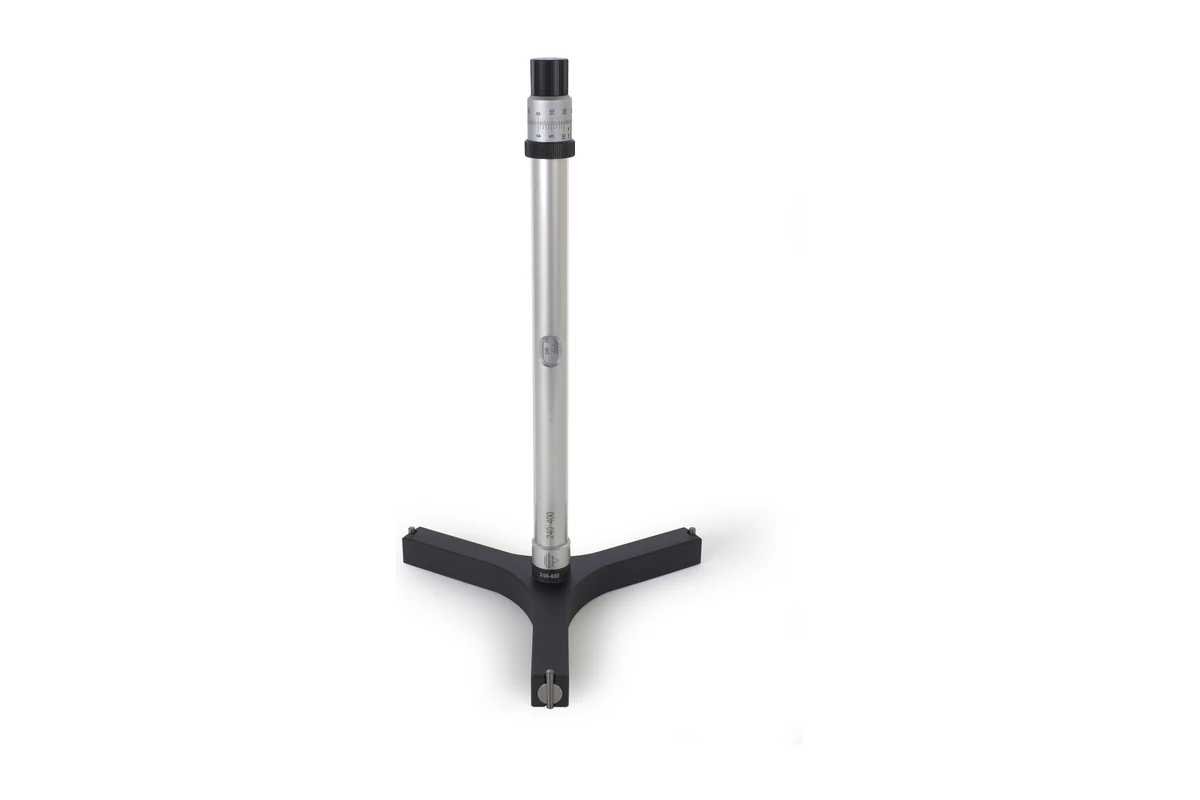

| 2534006 | Messbolzen mit Hartmetallstiften | 240-400 mm | 0,001 mm | 300 mm | €7,241.00 | ||
2534006 – Additional information about this version
MICROTEST 240-400 mm MICROTEST inside micrometer 240-400 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 240-400 mm; Resolution: 0,001 mm; Measuring depth: 300 mm. |
|||||||
| 2534007 | Messbolzen mit Hartmetallstiften | 400-650 mm | 0,001 mm | 520 mm | €12,139.00 | ||
2534007 – Additional information about this versionMICROTEST inside micrometer 400-650 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 400-650 mm; Resolution: 0,001 mm; Measuring depth: 520 mm. |
|||||||
| 2534008 | Messbolzen mit Hartmetallstiften | 650-900 mm | 0,001 mm | 520 mm | €14,979.00 | ||
2534008 – Additional information about this versionMICROTEST inside micrometer 650-900 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 650-900 mm; Resolution: 0,001 mm; Measuring depth: 520 mm. |
|||||||
| 2534009 | Messbolzen mit Hartmetallstiften | 900-1150 mm | 0,001 mm | 520 mm | €20,371.00 | ||
2534009 – Additional information about this versionMICROTEST inside micrometer 900-1150 mm is a version of the MICROTEST inside micrometers product family. Technical features: Measuring range: 900-1150 mm; Resolution: 0,001 mm; Measuring depth: 520 mm. |
|||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions
90° angle attachment
90° angle attachment is an accessory item for compatible measuring instruments and systems.
Ballbach item no. 2534701
