Mitutoyo – Serie 570
Mitutoyo Series 570 ABSOLUTE Digimatic height gauges
Digital ABSOLUTE height gauges for accurate measurement and scribing with direct LCD readout.
- Digital ABSOLUTE height gauges for accurate measurement and scribing with direct LCD readout.
- ABSOLUTE linear encoder retains the reference
- 0.01 mm digital resolution
- Tolerance judgement and data functions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and operating principle

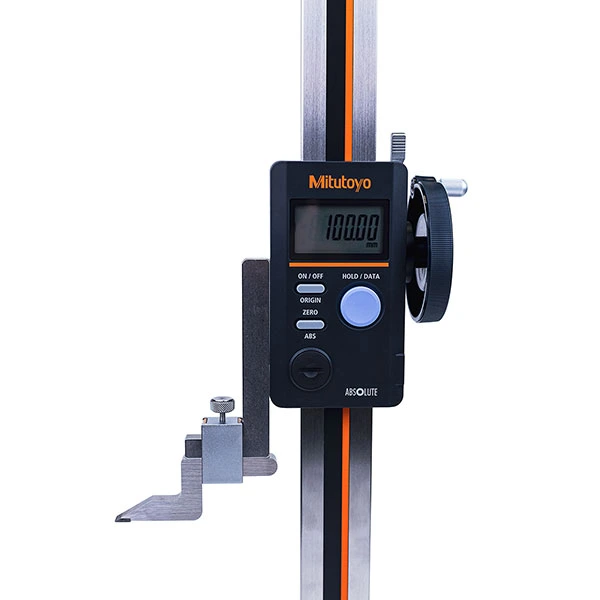

Series 570 combines precise height measurement and scribing with an ABSOLUTE linear scale. The stored origin remains available after power-on, reducing setup time in repeated workshop measurements.
Functions
Frequently used measuring functions, preset and tolerance judgement support efficient inspection. The fixed LCD is easy to read; a carbide-tipped scriber is supplied.
Measuring ranges and accuracy
The Ballbach range includes 300 and 600 mm versions. Resolution is 0.01 mm; the maximum permissible error is shown for each model.
Accessories
The scriber and mounting accessories used with Series 192/570 are linked to this family as well and appear after the main gauges.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Technical features | Resolution / graduation | Base size / design | Maximum permissible error | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 5004001 | Digimatic Höhenmess- und Anreißgerät | 0 – 300 | Ziffernschritt 0,01 mm, E MPE ±3 µm | 0,01 | ABSOLUTE Digimatic; Serie 570 | ±3 µm | €786.00 | ||
5004001 – Additional information about this versionMessbereich 0 – 300 mm · 0,01 mm · ±3 µm |
|||||||||
| 5004002 | Digimatic Höhenmess- und Anreißgerät | 0 – 600 | 0,01 | ABSOLUTE Digimatic; Serie 570 | ±5 µm | €1,382.00 | |||
5004002 – Additional information about this versionMessbereich 0 – 600 mm · 0,01 mm · ±5 µm |
|||||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions
Hartmetallbestückte Anreißnadel
9 x 9 mm; Länge 80 mm
Ballbach item no. 5003101
Halterung für Anreißnadel
Passend zu Serie 192 / 570
Ballbach item no. 5003102
Einspannschaft für Schwenkklemme
9 x 9 mm; Länge 50 mm
Ballbach item no. 5003103
Schwenkklemme
Für Ø 4/8 mm; Schwalbenschwanz
Ballbach item no. 5003104
