Rules to DIN 866
Working, inspection and workshop rules made of steel for accurate length and alignment tasks.
- Working, inspection and workshop rules made of steel for accurate length and alignment tasks.

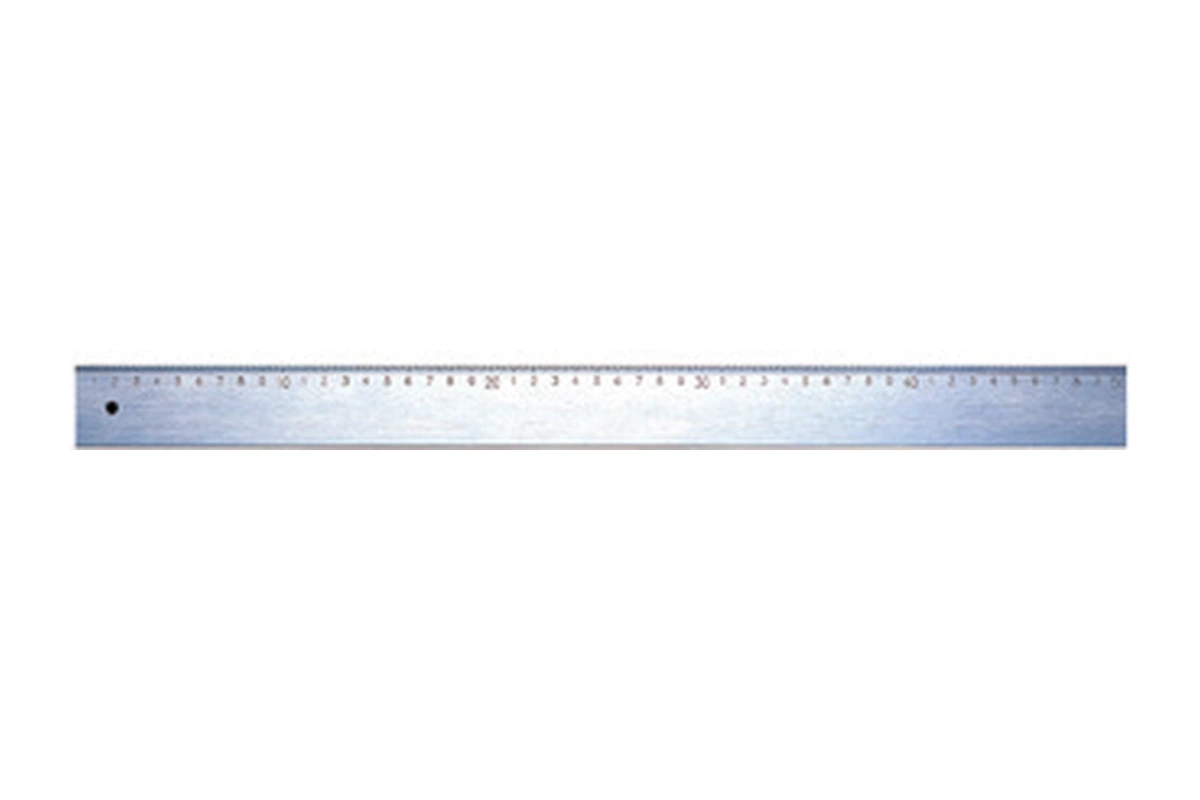

- Form B working rules and Form A inspection rules
- Lengths up to 6000 mm
- Laser graduated, carbon steel; stainless steel on request
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and selection
DIN 866 rules are available as Form B working rules, Form A inspection rules and a bevelled workshop rule. They are used for direct length transfer, checking and alignment.
Technical design
Graduations are structured in millimetres, 5 mm and centimetre sections. Scales are laser marked; standard material is carbon steel, with stainless versions available on request.
Variants and use
Working and inspection rules cover lengths from 500 to 6000 mm. Workshop rule 6028201 is included as an additional catalogue version without a listed price.
Advice and service
Ballbach assists with selecting form, length and cross-section. Calibration information is shown in the separate service section.
Article variants
Select the suitable version
| Ballbach item no. | Version | Length | Cross-section | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 6028001 | Working rule DIN 866 Form B | 500 mm | 25 x 5 mm | €35.00 | ||
6028001 – Additional information about this version
Working rule DIN 866 Form B; 500 mm; 25 x 5 mm. |
||||||
| 6028002 | Working rule DIN 866 Form B | 750 mm | 30 x 6 mm | €45.00 | ||
6028002 – Additional information about this versionWorking rule DIN 866 Form B; 750 mm; 30 x 6 mm. |
||||||
| 6028003 | Working rule DIN 866 Form B | 1000 mm | 30 x 6 mm | €51.00 | ||
6028003 – Additional information about this versionWorking rule DIN 866 Form B; 1000 mm; 30 x 6 mm. |
||||||
| 6028004 | Working rule DIN 866 Form B | 1500 mm | 30 x 6 mm | €72.00 | ||
6028004 – Additional information about this versionWorking rule DIN 866 Form B; 1500 mm; 30 x 6 mm. |
||||||
| 6028005 | Working rule DIN 866 Form B | 2000 mm | 40 x 8 mm | €126.00 | ||
6028005 – Additional information about this versionWorking rule DIN 866 Form B; 2000 mm; 40 x 8 mm. |
||||||
| 6028006 | Working rule DIN 866 Form B | 2500 mm | 40 x 8 mm | €211.00 | ||
6028006 – Additional information about this versionWorking rule DIN 866 Form B; 2500 mm; 40 x 8 mm. |
||||||
| 6028007 | Working rule DIN 866 Form B | 3000 mm | 40 x 8 mm | €278.00 | ||
6028007 – Additional information about this versionWorking rule DIN 866 Form B; 3000 mm; 40 x 8 mm. |
||||||
| 6028008 | Working rule DIN 866 Form B | 4000 mm | 50 x 10 mm | €430.00 | ||
6028008 – Additional information about this versionWorking rule DIN 866 Form B; 4000 mm; 50 x 10 mm. |
||||||
| 6028009 | Working rule DIN 866 Form B | 5000 mm | 60 x 12 mm | €727.00 | ||
6028009 – Additional information about this versionWorking rule DIN 866 Form B; 5000 mm; 60 x 12 mm. |
||||||
| 6028010 | Working rule DIN 866 Form B | 6000 mm | 70 x 15 mm | €1,177.00 | ||
6028010 – Additional information about this versionWorking rule DIN 866 Form B; 6000 mm; 70 x 15 mm. |
||||||
| 6028101 | Inspection rule DIN 866 Form A | 500 mm | 30 x 6 mm | €42.00 | ||
6028101 – Additional information about this version
Inspection rule DIN 866 Form A; 500 mm; 30 x 6 mm. |
||||||
| 6028102 | Inspection rule DIN 866 Form A | 1000 mm | 40 x 8 mm | €72.00 | ||
6028102 – Additional information about this version
Inspection rule DIN 866 Form A; 1000 mm; 40 x 8 mm. |
||||||
| 6028103 | Inspection rule DIN 866 Form A | 1500 mm | 40 x 8 mm | €117.00 | ||
6028103 – Additional information about this version
Inspection rule DIN 866 Form A; 1500 mm; 40 x 8 mm. |
||||||
| 6028104 | Inspection rule DIN 866 Form A | 2000 mm | 50 x 10 mm | €183.00 | ||
6028104 – Additional information about this version
Inspection rule DIN 866 Form A; 2000 mm; 50 x 10 mm. |
||||||
| 6028105 | Inspection rule DIN 866 Form A | 3000 mm | 50 x 10 mm | €381.00 | ||
6028105 – Additional information about this version
Inspection rule DIN 866 Form A; 3000 mm; 50 x 10 mm. |
||||||
| 6028106 | Inspection rule DIN 866 Form A | 4000 mm | 60 x 12 mm | €626.00 | ||
6028106 – Additional information about this version
Inspection rule DIN 866 Form A; 4000 mm; 60 x 12 mm. |
||||||
| 6028107 | Inspection rule DIN 866 Form A | 5000 mm | 70 x 15 mm | €916.00 | ||
6028107 – Additional information about this version
Inspection rule DIN 866 Form A; 5000 mm; 70 x 15 mm. |
||||||
| 6028108 | Inspection rule DIN 866 Form A | 6000 mm | 80 x 15 mm | €1,322.00 | ||
6028108 – Additional information about this version
Inspection rule DIN 866 Form A; 6000 mm; 80 x 15 mm. |
||||||

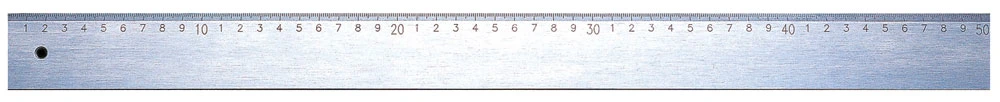

| 6028201 | Bevelled workshop rule to DIN 866 | On request | On request | Price on request | ||
6028201 – Additional information about this version
Additional catalogue version; dimensions and price on request. |
||||||
