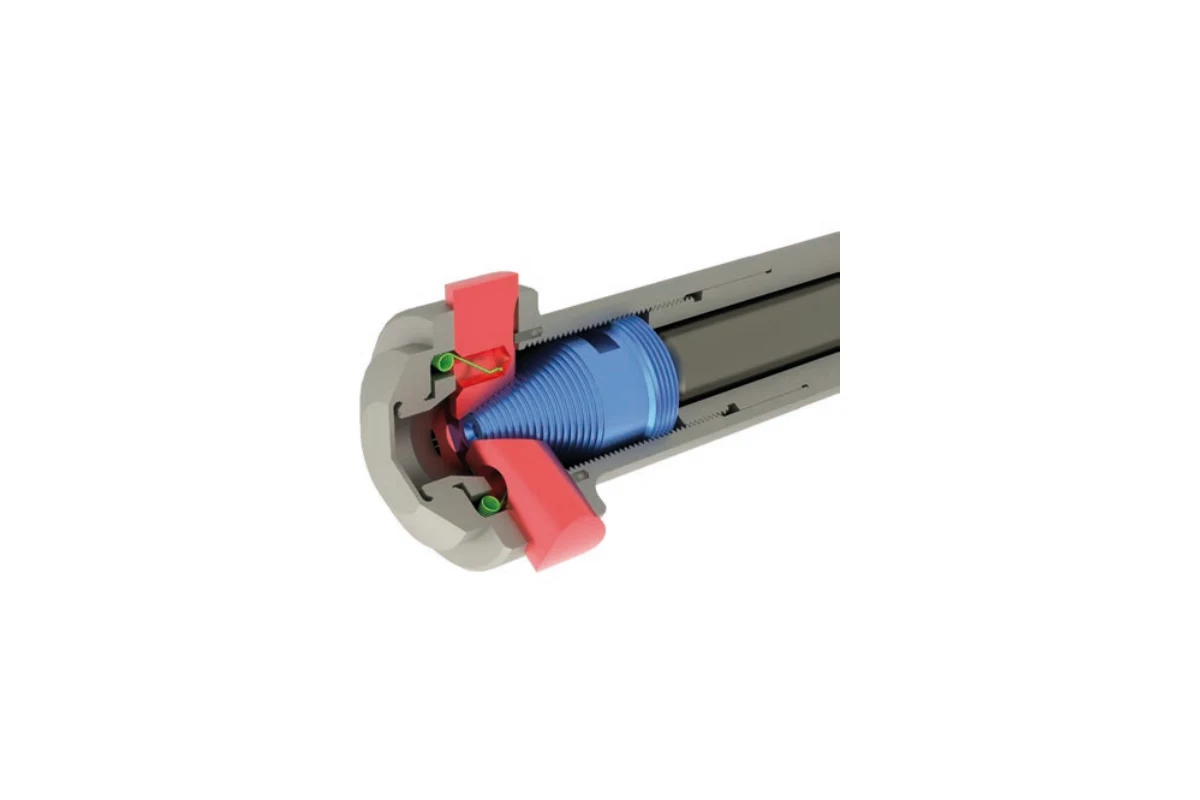

TESA IMICRO - Funktionsschnitt

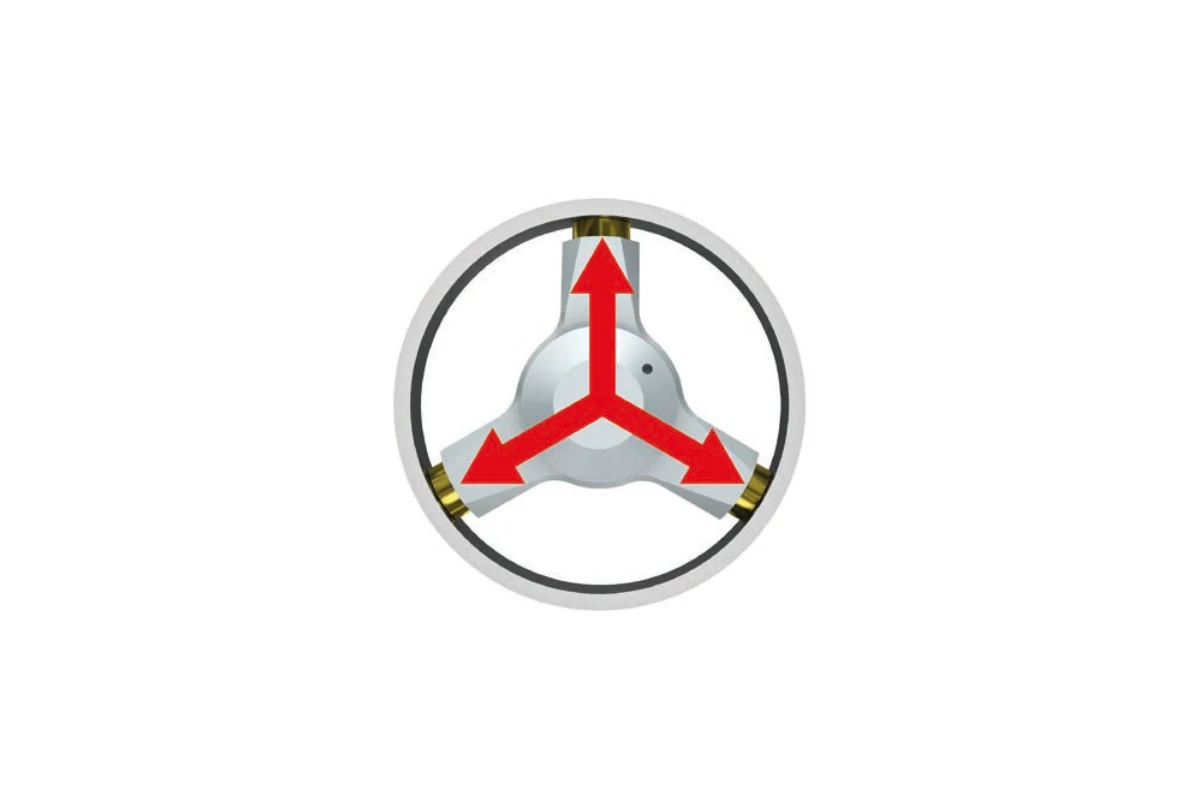

TESA IMICRO - Selbstzentrierung

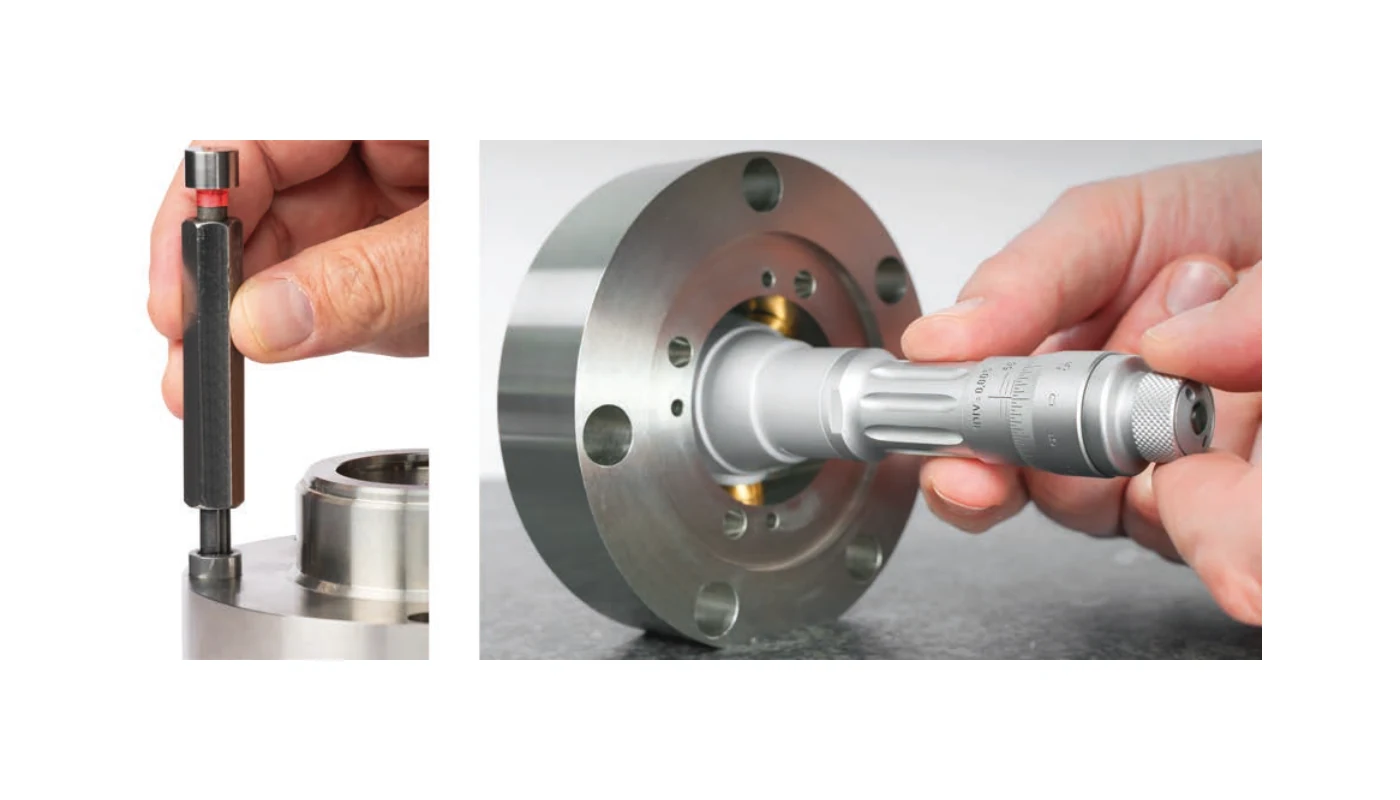

TESA IMICRO - Anwendung

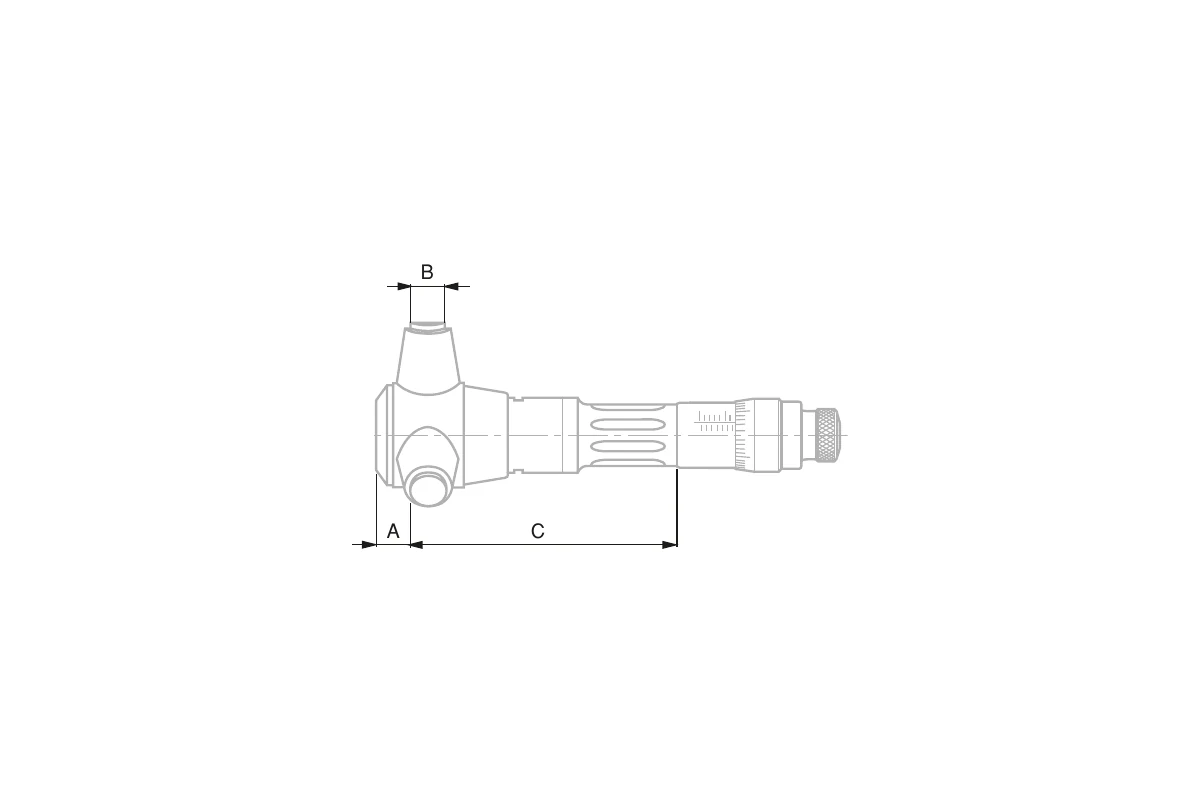

TESA IMICRO - technische Zeichnung
TESA Einstellring
TESA – IMICRO
TESA IMICRO inside micrometers with scale
Self-centring TESA IMICRO three-line inside micrometers with scale reading for through bores from 3.5 to 300 mm.
- Three-line measurement of through bores
- Self-centring and self-aligning
- Measuring ranges from 3.5 to 300 mm
- Precision-ground stepped cone and ratchet coupling
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Reliable bore diameter measurement
TESA IMICRO inside micrometers contact the bore along three evenly spaced measuring lines. The instrument therefore aligns itself in the bore and supports repeatable readings without a time-consuming reversal-point search.
Precision mechanism based on the Abbe principle
The precision-ground stepped cone transfers spindle movement uniformly to the measuring faces. Its design follows the Abbe principle and supports reliable results even at greater measuring depths. A ratchet coupling provides consistent operation.
Measuring faces for different ranges
Depending on size, the measuring faces are hardened steel, titanium-nitride coated or carbide tipped. Suitable versions are therefore available for small, medium and large bores.
Deep measurements and secure setting
Extensions and centring devices allow access to deeper measuring positions. Before use, the instrument is set to the reference size with a suitable setting ring. Ballbach also provides advice, calibration and repair service.
Article variants
Select the suitable version
| Ballbach item no. | Measuring faces | Measuring range | Resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 2500001 | Stahl gehärtet | 3,5-4 mm | 0,001 mm | €1,106.00 | ||
2500001 – Additional information about this versionTESA IMICRO 3,5-4 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 3,5-4 mm; Resolution: 0,001 mm. |
||||||
| 2500002 | Stahl gehärtet | 4-4,5 mm | 0,001 mm | €1,106.00 | ||
2500002 – Additional information about this versionTESA IMICRO 4-4,5 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 4-4,5 mm; Resolution: 0,001 mm. |
||||||
| 2500003 | Stahl gehärtet | 4,5-5,5 mm | 0,001 mm | €1,110.00 | ||
2500003 – Additional information about this versionTESA IMICRO 4,5-5,5 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 4,5-5,5 mm; Resolution: 0,001 mm. |
||||||
| 2500004 | Stahl gehärtet | 5,5-6,5 mm | 0,001 mm | €1,110.00 | ||
2500004 – Additional information about this versionTESA IMICRO 5,5-6,5 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 5,5-6,5 mm; Resolution: 0,001 mm. |
||||||
| 2500005 | Stahl gehärtet | 6-8 mm | 0,001 mm | €554.00 | ||
2500005 – Additional information about this versionTESA IMICRO 6-8 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 6-8 mm; Resolution: 0,001 mm. |
||||||
| 2500006 | Stahl gehärtet | 8-10 mm | 0,001 mm | €558.00 | ||
2500006 – Additional information about this versionTESA IMICRO 8-10 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 8-10 mm; Resolution: 0,001 mm. |
||||||
| 2500007 | Stahl gehärtet | 10-12 mm | 0,001 mm | €567.00 | ||
2500007 – Additional information about this versionTESA IMICRO 10-12 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 10-12 mm; Resolution: 0,001 mm. |
||||||
| 2500008 | Titannitrid (TIN) beschichtet | 11-14 mm | 0,005 mm | €616.00 | ||
2500008 – Additional information about this versionTESA IMICRO 11-14 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 11-14 mm; Resolution: 0,005 mm. |
||||||
| 2500009 | Titannitrid (TIN) beschichtet | 14-17 mm | 0,005 mm | €622.00 | ||
2500009 – Additional information about this versionTESA IMICRO 14-17 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 14-17 mm; Resolution: 0,005 mm. |
||||||
| 2500010 | Titannitrid (TIN) beschichtet | 17-20 mm | 0,005 mm | €628.00 | ||
2500010 – Additional information about this versionTESA IMICRO 17-20 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 17-20 mm; Resolution: 0,005 mm. |
||||||
| 2500011 | Titannitrid (TIN) beschichtet | 20-25 mm | 0,005 mm | €705.00 | ||
2500011 – Additional information about this versionTESA IMICRO 20-25 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 20-25 mm; Resolution: 0,005 mm. |
||||||
| 2500012 | Titannitrid (TIN) beschichtet | 25-30 mm | 0,005 mm | €727.00 | ||
2500012 – Additional information about this versionTESA IMICRO 25-30 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 25-30 mm; Resolution: 0,005 mm. |
||||||
| 2500013 | Titannitrid (TIN) beschichtet | 30-35 mm | 0,005 mm | €726.00 | ||
2500013 – Additional information about this versionTESA IMICRO 30-35 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 30-35 mm; Resolution: 0,005 mm. |
||||||
| 2500014 | Titannitrid (TIN) beschichtet | 35-40 mm | 0,005 mm | €800.00 | ||
2500014 – Additional information about this versionTESA IMICRO 35-40 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 35-40 mm; Resolution: 0,005 mm. |
||||||
| 2500015 | Titannitrid (TIN) beschichtet | 40-50 mm | 0,005 mm | €934.00 | ||
2500015 – Additional information about this versionTESA IMICRO 40-50 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 40-50 mm; Resolution: 0,005 mm. |
||||||
| 2500016 | Titannitrid (TIN) beschichtet | 50-60 mm | 0,005 mm | €898.00 | ||
2500016 – Additional information about this versionTESA IMICRO 50-60 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 50-60 mm; Resolution: 0,005 mm. |
||||||
| 2500017 | Titannitrid (TIN) beschichtet | 60-70 mm | 0,005 mm | €990.00 | ||
2500017 – Additional information about this versionTESA IMICRO 60-70 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 60-70 mm; Resolution: 0,005 mm. |
||||||
| 2500018 | Titannitrid (TIN) beschichtet | 70-80 mm | 0,005 mm | €931.00 | ||
2500018 – Additional information about this versionTESA IMICRO 70-80 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 70-80 mm; Resolution: 0,005 mm. |
||||||
| 2500019 | Titannitrid (TIN) beschichtet | 80-90 mm | 0,005 mm | €937.00 | ||
2500019 – Additional information about this versionTESA IMICRO 80-90 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 80-90 mm; Resolution: 0,005 mm. |
||||||
| 2500020 | Titannitrid (TIN) beschichtet | 90-100 mm | 0,005 mm | €978.00 | ||
2500020 – Additional information about this versionTESA IMICRO 90-100 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 90-100 mm; Resolution: 0,005 mm. |
||||||
| 2500021 | Hartmetall bestückt | 100-125 mm | 0,01 mm | €1,646.00 | ||
2500021 – Additional information about this versionTESA IMICRO 100-125 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 100-125 mm; Resolution: 0,01 mm. |
||||||
| 2500022 | Hartmetall bestückt | 125-150 mm | 0,01 mm | €1,653.00 | ||
2500022 – Additional information about this versionTESA IMICRO 125-150 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 125-150 mm; Resolution: 0,01 mm. |
||||||
| 2500023 | Hartmetall bestückt | 150-175 mm | 0,01 mm | €1,662.00 | ||
2500023 – Additional information about this versionTESA IMICRO 150-175 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 150-175 mm; Resolution: 0,01 mm. |
||||||
| 2500024 | Hartmetall bestückt | 175-200 mm | 0,01 mm | €1,714.00 | ||
2500024 – Additional information about this versionTESA IMICRO 175-200 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 175-200 mm; Resolution: 0,01 mm. |
||||||
| 2500025 | Hartmetall bestückt | 200-225 mm | 0,01 mm | €2,487.00 | ||
2500025 – Additional information about this versionTESA IMICRO 200-225 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 200-225 mm; Resolution: 0,01 mm. |
||||||
| 2500026 | Hartmetall bestückt | 225-250 mm | 0,01 mm | €2,517.00 | ||
2500026 – Additional information about this versionTESA IMICRO 225-250 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 225-250 mm; Resolution: 0,01 mm. |
||||||
| 2500027 | Hartmetall bestückt | 250-275 mm | 0,01 mm | €2,551.00 | ||
2500027 – Additional information about this versionTESA IMICRO 250-275 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 250-275 mm; Resolution: 0,01 mm. |
||||||
| 2500028 | Hartmetall bestückt | 275-300 mm | 0,01 mm | €2,591.00 | ||
2500028 – Additional information about this versionTESA IMICRO 275-300 mm is a version of the TESA IMICRO inside micrometers with scale product family. Technical features: Measuring range: 275-300 mm; Resolution: 0,01 mm. |
||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Your benefits
Why buy from Ballbach?
At Ballbach you receive not only the measuring instrument, but also advice and long-term support from a single source.
Personal expert advice
We help you select the right model, measuring range and accessories.
Calibration from a single source
On request, we supply the instrument inspected and with suitable calibration.
DAkkS calibration
Available for suitable measurands within our accredited scope.
Repair and value retention
We continue to support your instrument after purchase with repairs and spare-parts procurement.
More than 60 years of metrology
Experience, short decision paths and a personal contact.
Service & calibration
Long-term support for your measuring instrument
Ballbach supports you from product selection through long-term service. State the required service directly in the inquiry cart and we will include it in the quotation.
