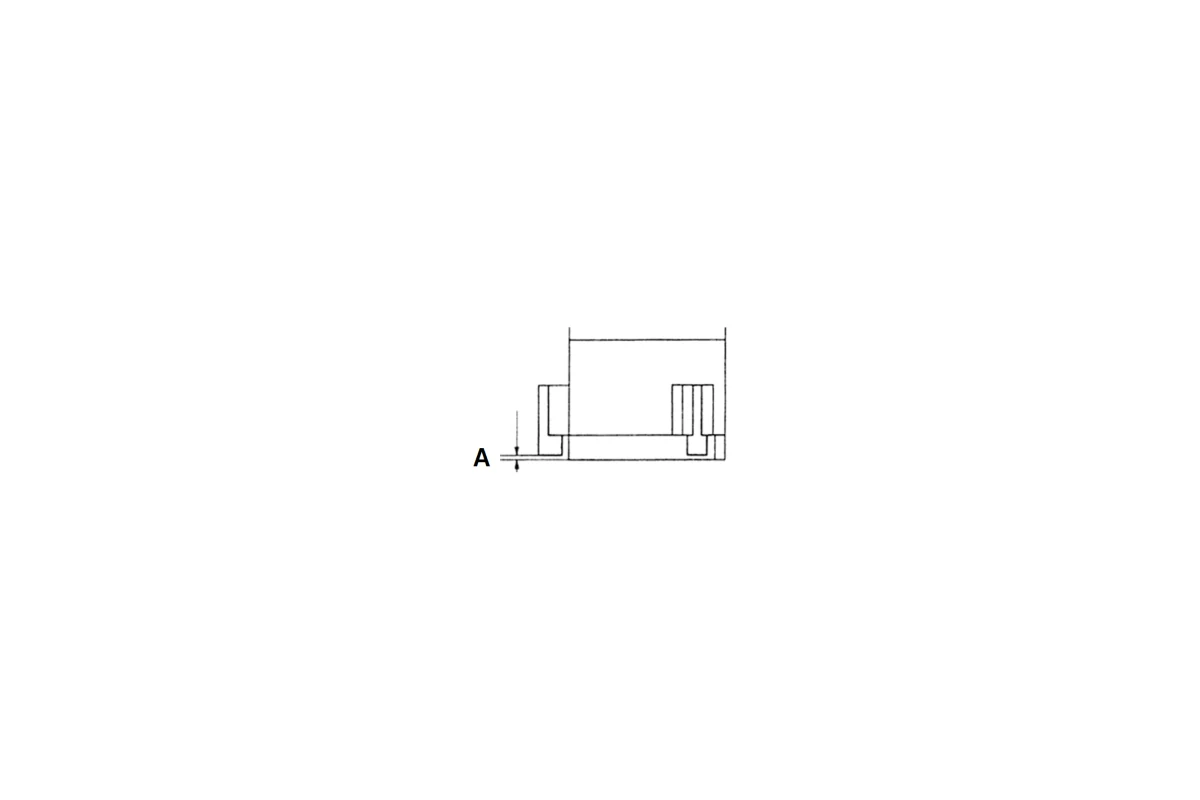

Bowers XTA - technische Zeichnung

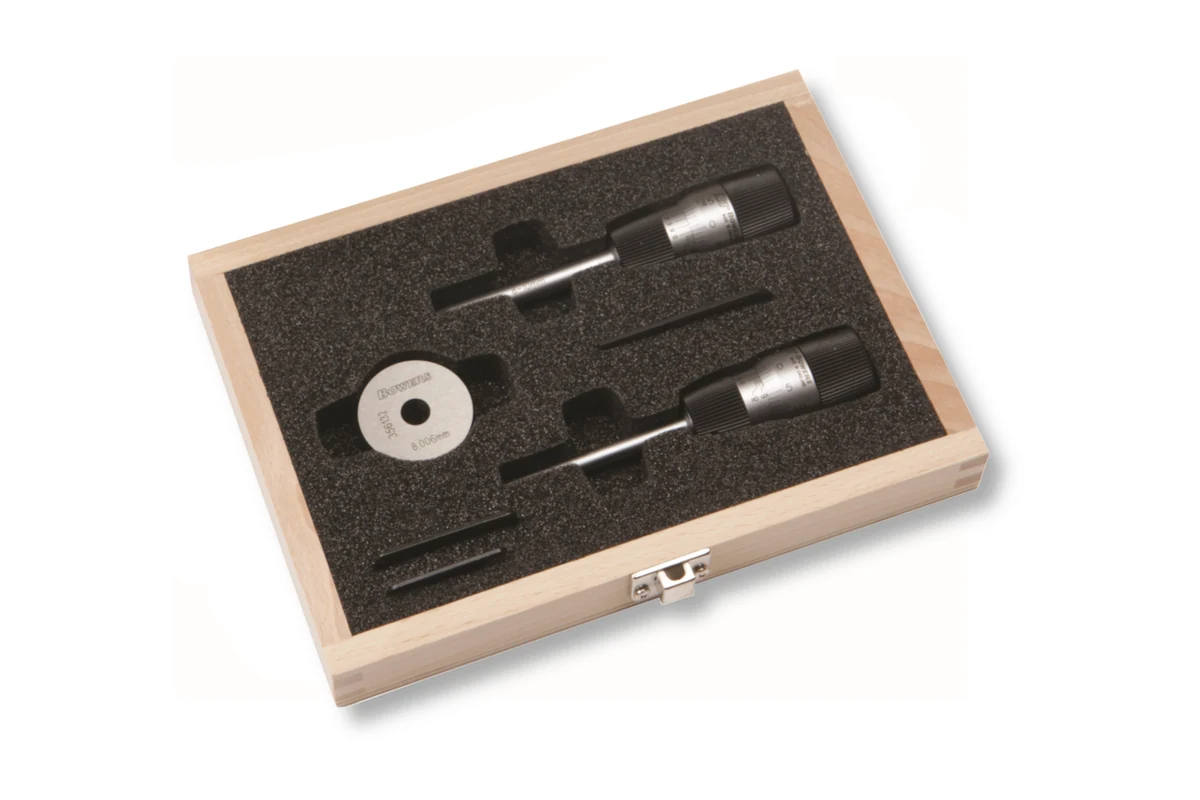

Bowers XTA Satz

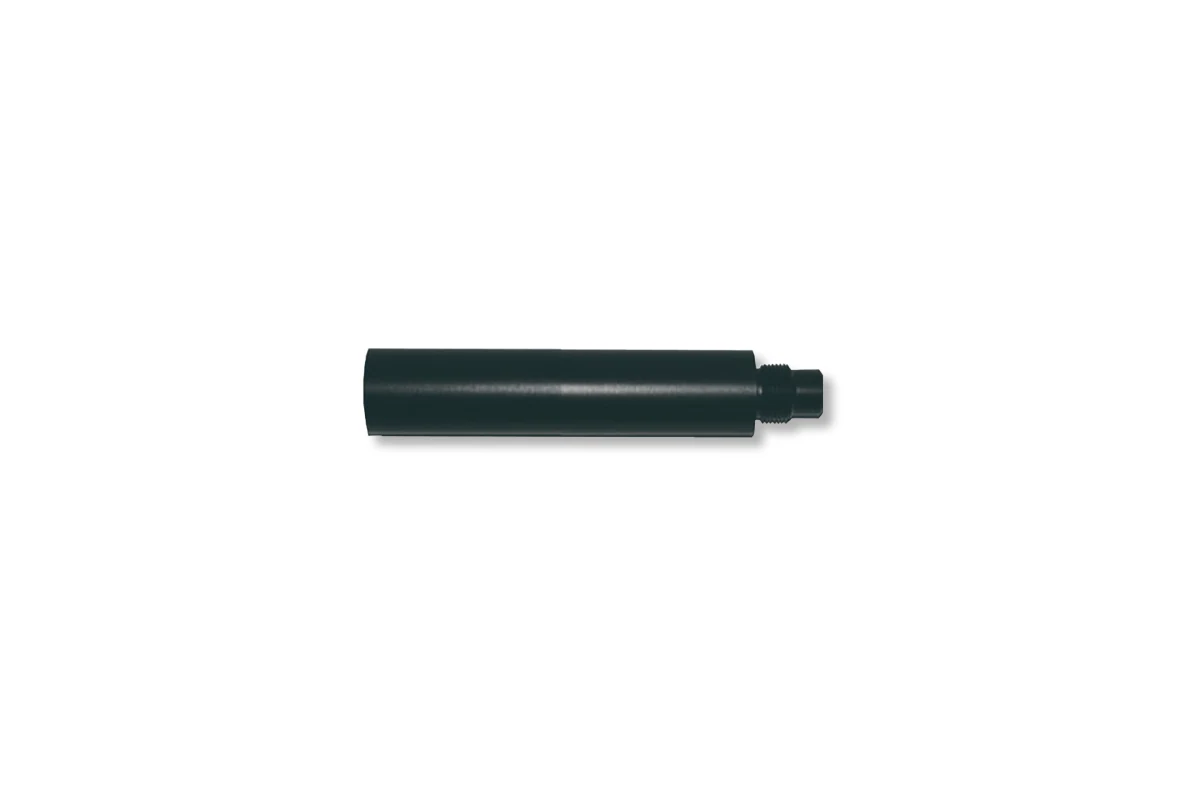

Bowers Verlängerung
Bowers – XTA
XTA inside micrometers
Mechanical Bowers XTA two- and three-point bore micrometers for 2 to 300 mm, with ratchet stop and certificate.
- Measuring range from 2 to 300 mm
- Two-point measurement from 2 to 6 mm, three-point from 6 mm
- Blind-bore measurement at 2–6 mm and from 12.5 mm
- Ratchet stop and UKAS certificate
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
One system for small and large bores
Bowers XTA covers a wide range from 2 to 300 mm. Small heads from 2 to 6 mm use two-point contact; from 6 mm the bore is measured with three contacts and a self-centring effect.
Mechanical scale reading
The size is read directly from the finely graduated scale. The ratchet stop limits operating force and supports comparable results during repeated inspection.
Through and blind bores
Versions from 2 to 6 mm and from 12.5 mm are suitable for measurement close to the bottom of blind bores. Three-point heads from 12.5 mm use carbide contact pins for high wear resistance.
Traceable inspection and setting
Standard instruments are supplied with a UKAS certificate. A suitable setting ring is required for measurement. Ballbach supports selection, setting equipment, calibration and repair.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 2525001 | Messflächen: Stahl gehärtet | 2-2,5 mm | 0,001 mm | €876.00 | ||
2525001 – Additional information about this versionXTA inside micrometer 2-2,5 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 2-2,5 mm; Resolution: 0,001 mm.
|
||||||
| 2525002 | Messflächen: Stahl gehärtet | 2,5-3 mm | 0,001 mm | €876.00 | ||
2525002 – Additional information about this versionXTA inside micrometer 2,5-3 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 2,5-3 mm; Resolution: 0,001 mm.
|
||||||
| 2525003 | Messflächen: Stahl gehärtet | 3-4 mm | 0,001 mm | €777.00 | ||
2525003 – Additional information about this versionXTA inside micrometer 3-4 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 3-4 mm; Resolution: 0,001 mm.
|
||||||
| 2525004 | Messflächen: Stahl gehärtet | 4-5 mm | 0,001 mm | €777.00 | ||
2525004 – Additional information about this versionXTA inside micrometer 4-5 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 4-5 mm; Resolution: 0,001 mm.
|
||||||
| 2525005 | Messflächen: Stahl gehärtet | 5-6 mm | 0,001 mm | €777.00 | ||
2525005 – Additional information about this versionXTA inside micrometer 5-6 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 5-6 mm; Resolution: 0,001 mm.
|
||||||
| 2525006 | Messflächen: Stahl gehärtet | 6-8 mm | 0,002 mm | €368.00 | ||
2525006 – Additional information about this versionXTA inside micrometer 6-8 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 6-8 mm; Resolution: 0,002 mm.
|
||||||
| 2525007 | Messflächen: Stahl gehärtet | 8-10 mm | 0,002 mm | €329.00 | ||
2525007 – Additional information about this versionXTA inside micrometer 8-10 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 8-10 mm; Resolution: 0,002 mm.
|
||||||
| 2525008 | Messstifte aus Hartmetall | 10-12,5 mm | 0,002 mm | €329.00 | ||
2525008 – Additional information about this versionXTA inside micrometer 10-12,5 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 10-12,5 mm; Resolution: 0,002 mm.
|
||||||
| 2525009 | Messstifte aus Hartmetall | 12,5-16 mm | 0,002 mm | €329.00 | ||
2525009 – Additional information about this versionXTA inside micrometer 12,5-16 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 12,5-16 mm; Resolution: 0,002 mm.
|
||||||
| 2525010 | Messstifte aus Hartmetall | 16-20 mm | 0,002 mm | €327.00 | ||
2525010 – Additional information about this versionXTA inside micrometer 16-20 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 16-20 mm; Resolution: 0,002 mm.
|
||||||
| 2525011 | Messstifte aus Hartmetall | 20-25 mm | 0,005 mm | €352.00 | ||
2525011 – Additional information about this versionXTA inside micrometer 20-25 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 20-25 mm; Resolution: 0,005 mm.
|
||||||
| 2525012 | Messstifte aus Hartmetall | 25-35 mm | 0,005 mm | €517.00 | ||
2525012 – Additional information about this versionXTA inside micrometer 25-35 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 25-35 mm; Resolution: 0,005 mm.
|
||||||
| 2525013 | Messstifte aus Hartmetall | 35-50 mm | 0,005 mm | €527.00 | ||
2525013 – Additional information about this versionXTA inside micrometer 35-50 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 35-50 mm; Resolution: 0,005 mm.
|
||||||
| 2525014 | Messstifte aus Hartmetall | 50-65 mm | 0,005 mm | €628.00 | ||
2525014 – Additional information about this versionXTA inside micrometer 50-65 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 50-65 mm; Resolution: 0,005 mm.
|
||||||
| 2525015 | Messstifte aus Hartmetall | 65-80 mm | 0,005 mm | €628.00 | ||
2525015 – Additional information about this versionXTA inside micrometer 65-80 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 65-80 mm; Resolution: 0,005 mm.
|
||||||
| 2525016 | Messstifte aus Hartmetall | 80-100 mm | 0,005 mm | €792.00 | ||
2525016 – Additional information about this versionXTA inside micrometer 80-100 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 80-100 mm; Resolution: 0,005 mm.
|
||||||
| 2525017 | Messstifte aus Hartmetall | 100-125 mm | 0,005 mm | €840.00 | ||
2525017 – Additional information about this versionXTA inside micrometer 100-125 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 100-125 mm; Resolution: 0,005 mm.
|
||||||
| 2525018 | Messstifte aus Hartmetall | 125-150 mm | 0,005 mm | €992.00 | ||
2525018 – Additional information about this versionXTA inside micrometer 125-150 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 125-150 mm; Resolution: 0,005 mm.
|
||||||
| 2525019 | Messstifte aus Hartmetall | 150-175 mm | 0,005 mm | €1,146.00 | ||
2525019 – Additional information about this versionXTA inside micrometer 150-175 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 150-175 mm; Resolution: 0,005 mm.
|
||||||
| 2525020 | Messstifte aus Hartmetall | 175-200 mm | 0,005 mm | €1,337.00 | ||
2525020 – Additional information about this versionXTA inside micrometer 175-200 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 175-200 mm; Resolution: 0,005 mm.
|
||||||
| 2525021 | Messstifte aus Hartmetall | 200-225 mm | 0,005 mm | €1,560.00 | ||
2525021 – Additional information about this versionXTA inside micrometer 200-225 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 200-225 mm; Resolution: 0,005 mm.
|
||||||
| 2525022 | Messstifte aus Hartmetall | 225-250 mm | 0,005 mm | €1,596.00 | ||
2525022 – Additional information about this versionXTA inside micrometer 225-250 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 225-250 mm; Resolution: 0,005 mm.
|
||||||
| 2525023 | Messstifte aus Hartmetall | 250-275 mm | 0,005 mm | €1,659.00 | ||
2525023 – Additional information about this versionXTA inside micrometer 250-275 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 250-275 mm; Resolution: 0,005 mm.
|
||||||
| 2525024 | Messstifte aus Hartmetall | 275-300 mm | 0,005 mm | €1,718.00 | ||
2525024 – Additional information about this versionXTA inside micrometer 275-300 mm is a version of the XTA inside micrometers product family. Technical features: Measuring range: 275-300 mm; Resolution: 0,005 mm.
|
||||||
