TESA – TWIN-SURF
TESA TWIN-SURF

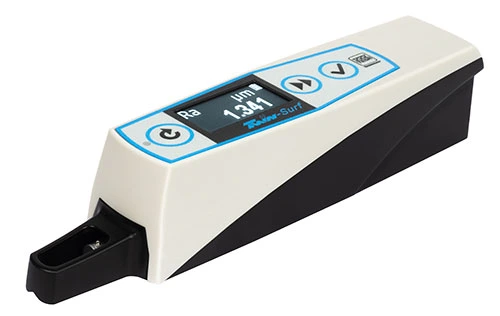

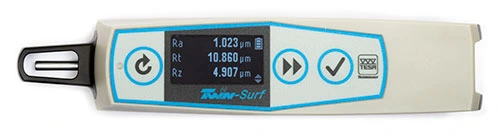

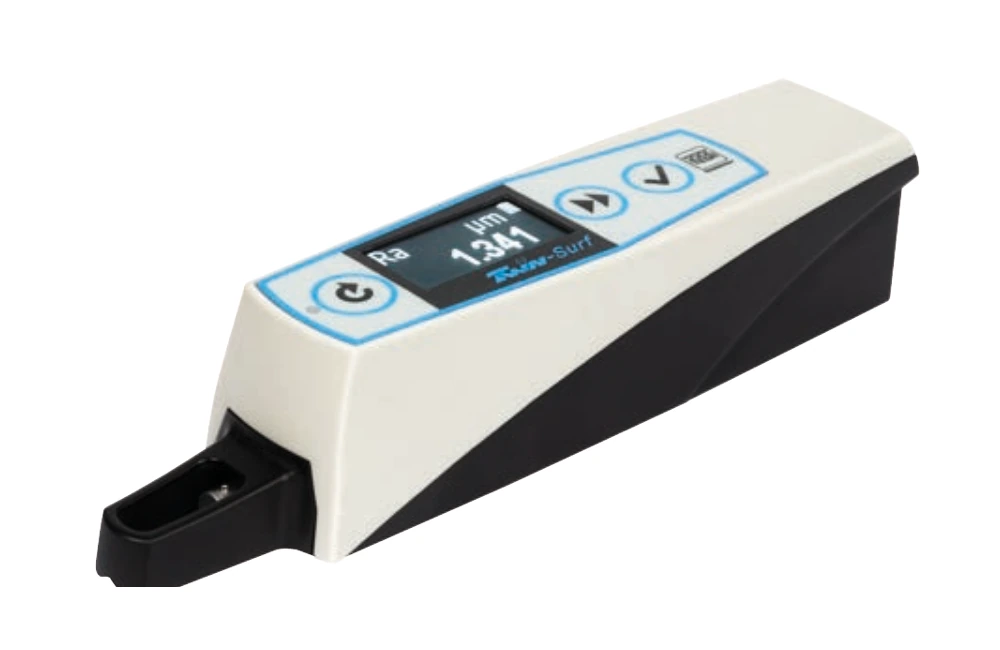

Compact roughness tester with USB-C or Bluetooth, swivelling stylus and TESA DATA-STUDIO.
- Compact roughness tester for incoming inspection, production and laboratories
- Ra 0 to 50 µm and Rt 0.05 to 200 µm
- Resolution 0.001 µm; traverse length up to 17.5 mm
- USB-C or Bluetooth; TESA DATA-STUDIO Basic included
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Compact measurement directly on the workpiece

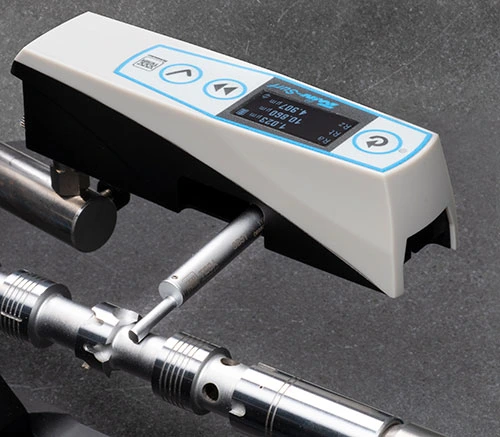

TESA TWIN-SURF is designed for rapid roughness checks in incoming inspection, near production and in the laboratory. It can be used directly on the component or mounted on a stand using the 8 mm adapter.
Measurement and tolerance evaluation
Each parameter can be enabled separately and assigned upper and lower tolerances. Results are stored, the inductive stylus can return automatically, and the interchangeable stylus can be swivelled by 90°.
Measuring performance
The range covers Ra 0 to 50 µm and Rt 0.05 to 200 µm with a maximum traverse length of 17.5 mm and 0.001 µm resolution. One to five cut-offs and several cut-off lengths are available. The diamond stylus has a 2 µm radius and a measuring force of 0.75 mN.
Parameters and standards
The basic version evaluates common ISO 4287 and ISO 12085 parameters. DATA-STUDIO Premium adds further profile, bearing-ratio and Rk parameters.
Data and documentation

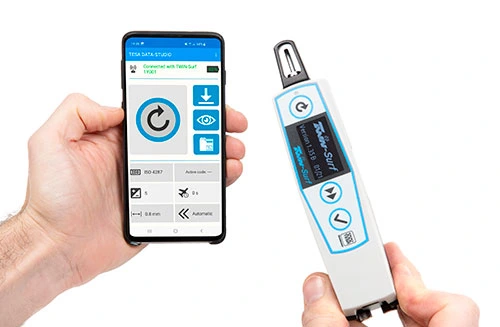

The standard model uses USB-C; the BT model additionally supports Bluetooth and an optional printer. DATA-STUDIO Basic is included for result management and reports.
Scope and accessories

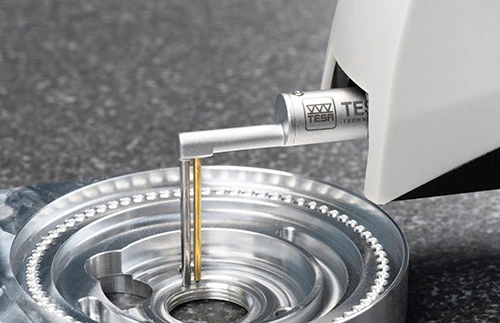

The set includes a Ra 2.97 µm standard, SB51 stylus, 8 mm holders, charger, USB cable and software. Special styli and a 100 mm extension cover grooves, bores and recessed features.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range / size | Technical features | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 6074001 | TESA TWIN-SURF | Z ±200 µm, X 17,5 mm | USB-C, 13 Rauheitsparameter | Price on request | ||
6074001 – Additional information about this versionUSB-C, 13 Rauheitsparameter |
||||||
| 6074701 | TESA TWIN-SURF | Ra 0-50 µm; Rt 0,05-200 µm; X max. 17,5 mm | 0,001 µm; USB-C; 13 Parameter | €2,859.00 | ||
6074701 – Additional information about this version
Standard version with USB-C and DATA-STUDIO Basic. |
||||||
| 6074002 | TESA TWIN-SURF Bluetooth | Z ±200 µm, X 17,5 mm | Bluetooth und USB-C | Price on request | ||
6074002 – Additional information about this versionBluetooth und USB-C |
||||||
| 6074702 | TESA TWIN-SURF BT | Ra 0-50 µm; Rt 0,05-200 µm; X max. 17,5 mm | 0,001 µm; Bluetooth + USB-C | €3,069.00 | ||
6074702 – Additional information about this version
Wireless version with Bluetooth and USB-C. |
||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions
Drucker für TWIN-SURF BT
Drahtloser Drucker für die Bluetooth-Ausführung.
Ballbach item no. 6074710
Tastkopf SB21 für Nuten < 5 mm
Zubehör für TWIN-SURF
Ballbach item no. 06960092
TESA DATA-STUDIO Premium
Erweiterte Softwarelizenz für zusätzliche Rauheitsparameter und Auswertungen.
Ballbach item no. 6074711

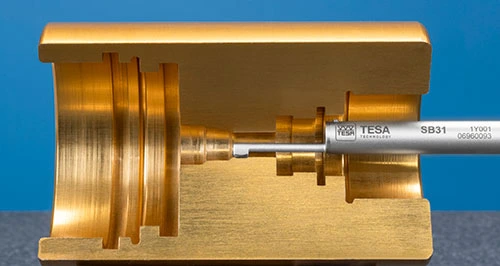

Tastkopf SB31 für Bohrungen Ø > 4 mm
Zubehör für TWIN-SURF
Ballbach item no. 06960093
Messtaster SB21
Für Nuten mit einer Tiefe unter 5 mm.
Ballbach item no. 6074712
Tastkopf SB51 für konkave Flächen und 90°
Zubehör für TWIN-SURF
Ballbach item no. 06960094
Messtaster SB31
Für Flächen und Bohrungen ab Ø 4 mm bis 20 mm Tiefe.
Ballbach item no. 6074713
Tastkopf SB121 für Nuten < 20 mm
Zubehör für TWIN-SURF
Ballbach item no. 06960095
Messtaster SB51
Für konkave Oberflächen, 90°-Messungen und Nuten unter 5 mm.
Ballbach item no. 6074714
Verlängerung 100 mm
Zubehör für TWIN-SURF
Ballbach item no. 06960096
USB-A-zu-USB-C-Kabel, 1 m
Zubehör für TWIN-SURF
Ballbach item no. 04760152
Messtaster SB121
Für Nuten mit einer Tiefe unter 20 mm.
Ballbach item no. 6074715
Tasterverlängerung 100 mm
Verlängerung für tiefe oder schwer zugängliche Messstellen.
Ballbach item no. 6074716
Bluetooth-Drucker
Zubehör für TWIN-SURF
Ballbach item no. 06960090
Rauheitsnormal Ra 2,97 µm
Referenznormal zur Kontrolle und Einstellung des Messsystems.
Ballbach item no. 6074206
Software DATA-STUDIO
Zubehör für RUGOSURF 20
Ballbach item no. 06960091
USB-A-zu-USB-C-Kabel
Verbindungskabel für Messgerät und PC.
Ballbach item no. 6074717
