TESA – RUGOSURF 20
TESA RUGOSURF 20

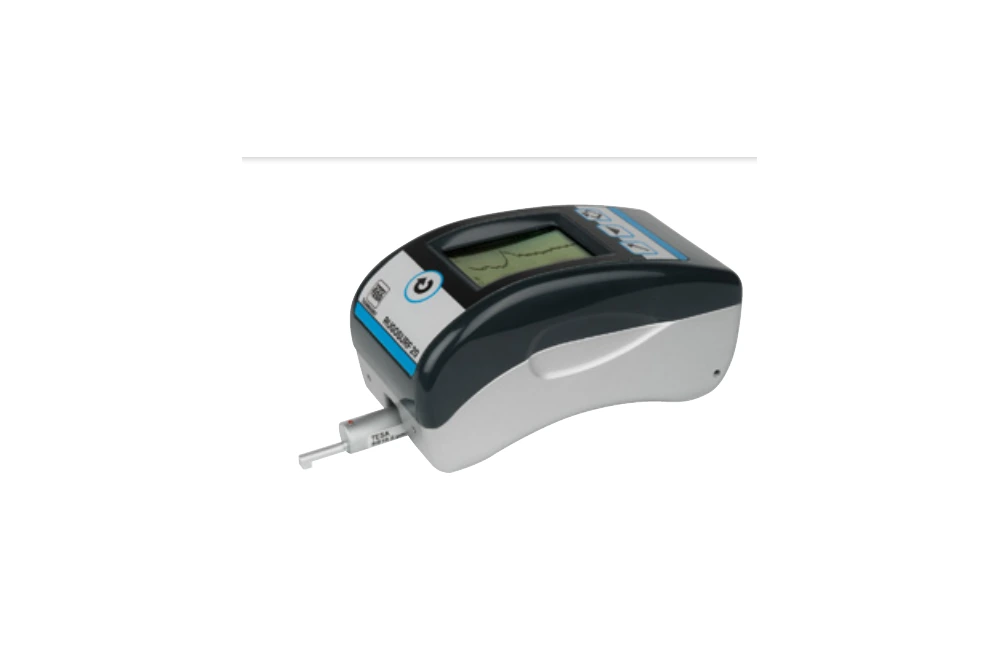

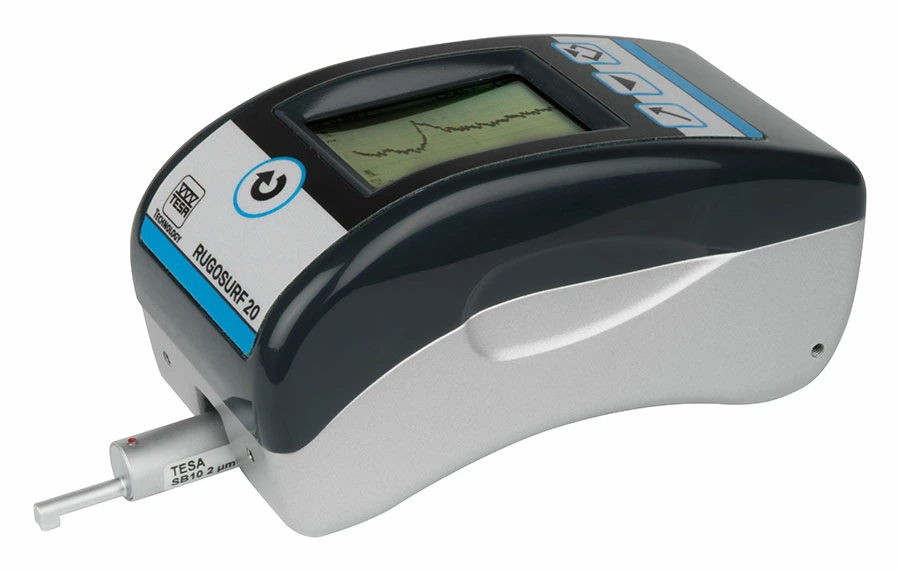

Robust roughness tester with integrated traverse, 400 µm Z range and Rugosoft connection.
- Robust portable roughness tester for production and incoming inspection
- X range 16 mm; Z range 400 µm
- Ra 0 to 100 µm; Rt 0.05 to 400 µm; resolution 0.001 µm
- Integrated traverse unit and TESA Rugosoft control
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Robust measurement in production

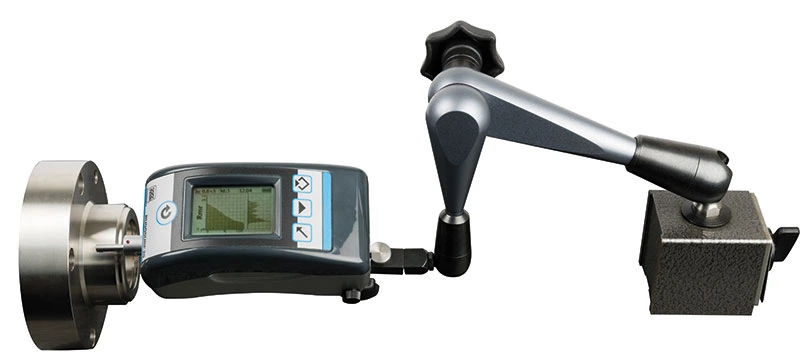

TESA RUGOSURF 20 combines an aluminium base with a powerful traverse unit. It is suitable for portable and stationary inspection. The supplied holders fit universal stands with an 8 mm mounting diameter; the measuring height can be adjusted up to 35 mm without an additional stand.

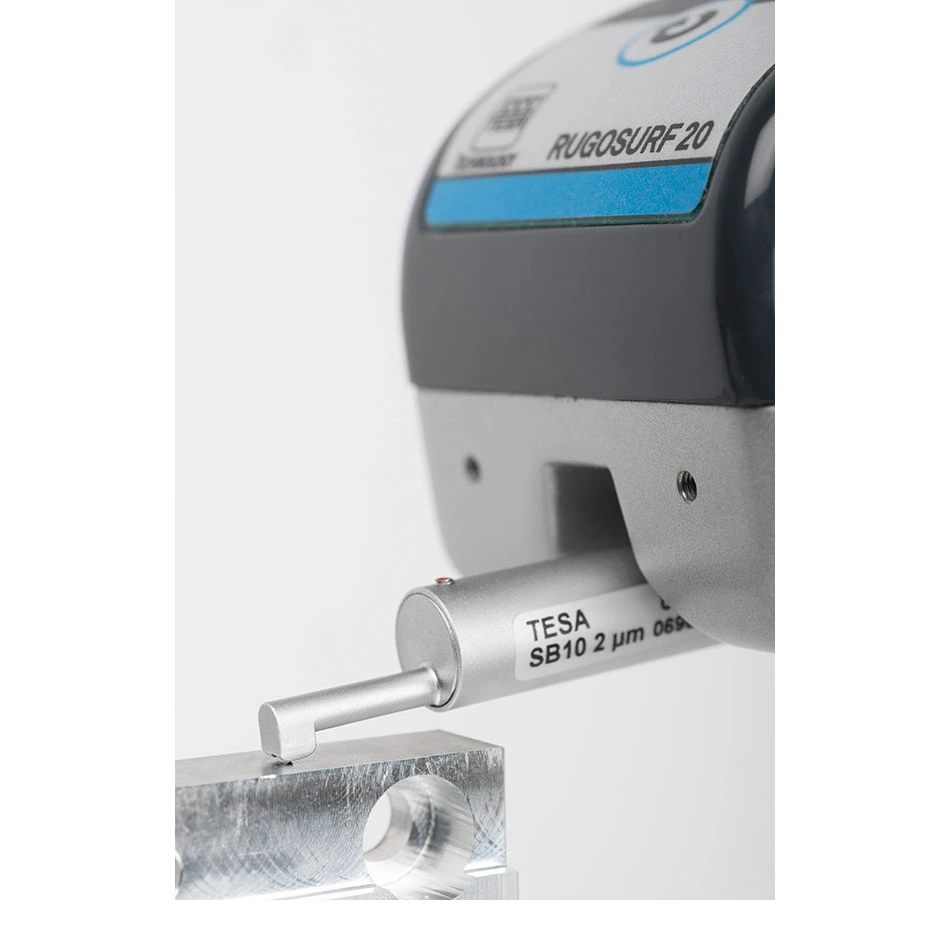

Inductive interchangeable stylus
The inductive stylus operates without wear. The standard SB10 uses a 5 µm, 90° diamond tip; special styli cover grooves, small bores and special surfaces.
Measuring performance
The X range is 16 mm and the Z range 400 µm. Display ranges are Ra 0 to 100 µm and Rt 0.05 to 400 µm with 0.001 µm resolution. One to five cut-offs are selectable.
Parameters and standards
The instrument evaluates parameters to ISO 4287, JIS, ASME, DIN 4768, EN 10049 and ISO 12085, including Ra, Rq, Rt, Rz, Rmax, RPc and further profile values.
Memory and autonomy
The LCD displays values and profiles. Memory holds 20 graphical measurements or more than 1000 parameter sets. The rechargeable battery supports about 1000 measurements.
Rugosoft
TESA Rugosoft archives, prints and graphically displays results and can control settings and measurement sequences.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range / size | Technical features | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 6074500 | TESA RUGOSURF 20 | Ra 0-100 µm; Rt 0,05-400 µm; X 16 mm | 0,001 µm; Z 400 µm; Rugosoft | €2,273.00 | ||
6074500 – Additional information about this version
Komplettgerät mit SB10, Rauheitsnormal, Halterungen, Akku und Ladegerät. |
||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions
USB-zu-Micro-USB-Kabel
Zubehör für RUGOSURF 20
Ballbach item no. 04760099
Messtaster SB10
Standardtaster für allgemeine Messungen und Nuten.
Ballbach item no. 6074201
Messtaster SB20
Taster für Nuten und schwer zugängliche Messstellen.
Ballbach item no. 6074202
Granittisch mit vertikaler Halterung, 400 x 250 mm
Zubehör für RUGOSURF 20
Ballbach item no. 06960035
Messtaster SB30
Taster für kleine Bohrungen.
Ballbach item no. 6074203
Tastkopf SB10-2, R = 2 µm, 90°
Zubehör für RUGOSURF 20
Ballbach item no. 06960081
USB-zu-Micro-USB-Kabel
Verbindungskabel für Messgerät und PC.
Ballbach item no. 6074600
Tastkopf SB10, R = 5 µm, 90°
Zubehör für RUGOSURF 20
Ballbach item no. 06960036
Tastkopf SB20 für Nuten < 5 mm
Zubehör für RUGOSURF 20
Ballbach item no. 06960037
Tastkopf SB30 für Bohrungen Ø > 4 mm
Zubehör für RUGOSURF 20
Ballbach item no. 06960038
Tastkopf SB40, V-Form für Zylinder Ø > 1 mm
Zubehör für RUGOSURF 20
Ballbach item no. 06960039
Tastkopf SB50 für konkave Flächen und 90°
Zubehör für RUGOSURF 20
Ballbach item no. 06960040
Tasterverlängerung 100 mm
Zubehör für RUGOSURF 20
Ballbach item no. 06960056
Tastkopf SB110 für konkave oder konvexe Flächen
Zubehör für RUGOSURF 20
Ballbach item no. 06960057
Akku NiMH 8,4 V
Zubehör für RUGOSURF 20
Ballbach item no. 06960063
Netzteil 100–240 V
Zubehör für RUGOSURF 20
Ballbach item no. 06960046
Rauheitsnormal Ra = 2,97 µm
Zubehör für RUGOSURF 20
Ballbach item no. 06960041
Rauheitsnormal Ra = 0,1 µm
Zubehör für RUGOSURF 20
Ballbach item no. 06960064
Rauheitsnormal Ra = 0,5 µm
Zubehör für RUGOSURF 20
Ballbach item no. 06960065
Rauheitsnormal Ra = 1 µm
Zubehör für RUGOSURF 20
Ballbach item no. 06960066
Software DATA-STUDIO
Zubehör für RUGOSURF 20
Ballbach item no. 06960091
