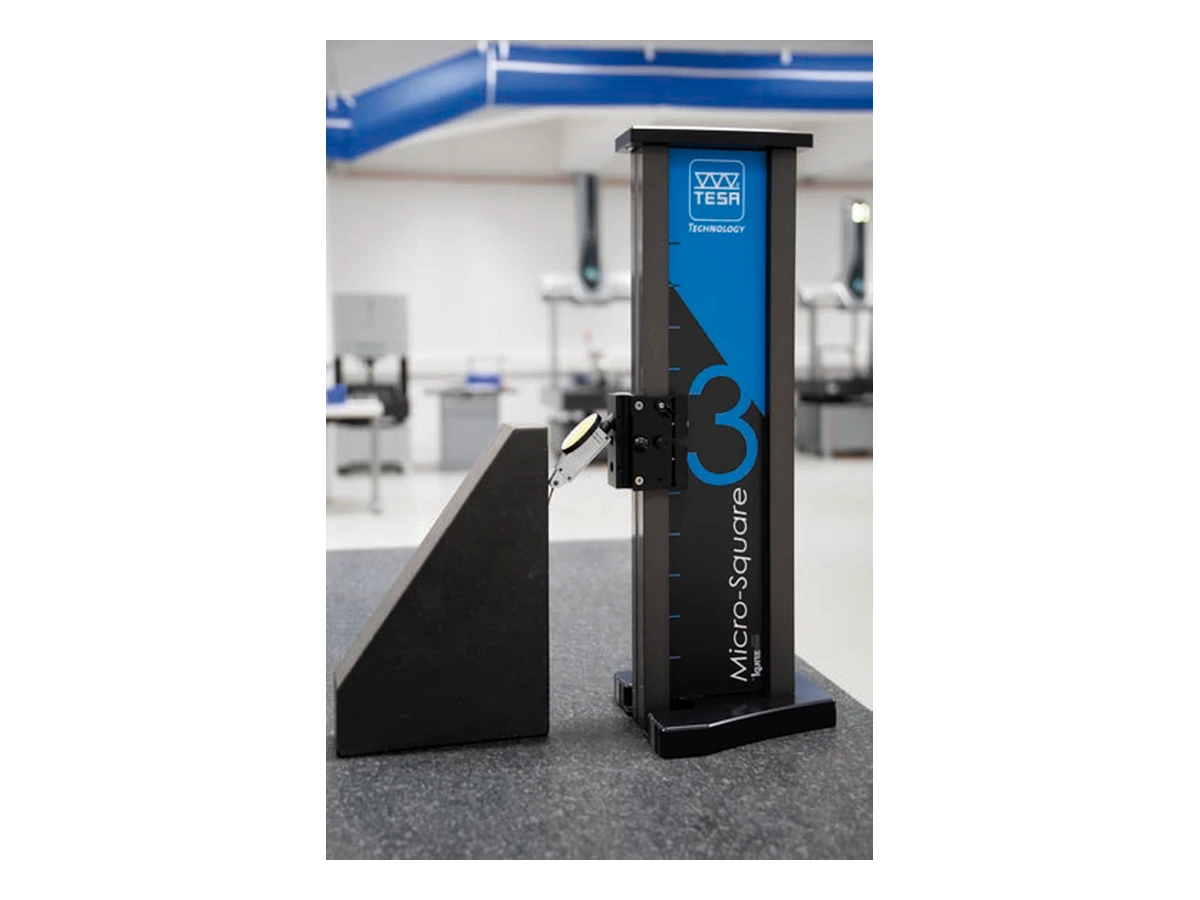

TESA MICRO-SQUARE - Anwendung an einem Rechtwinkligkeitsnormal
TESA – MICRO-SQUARE

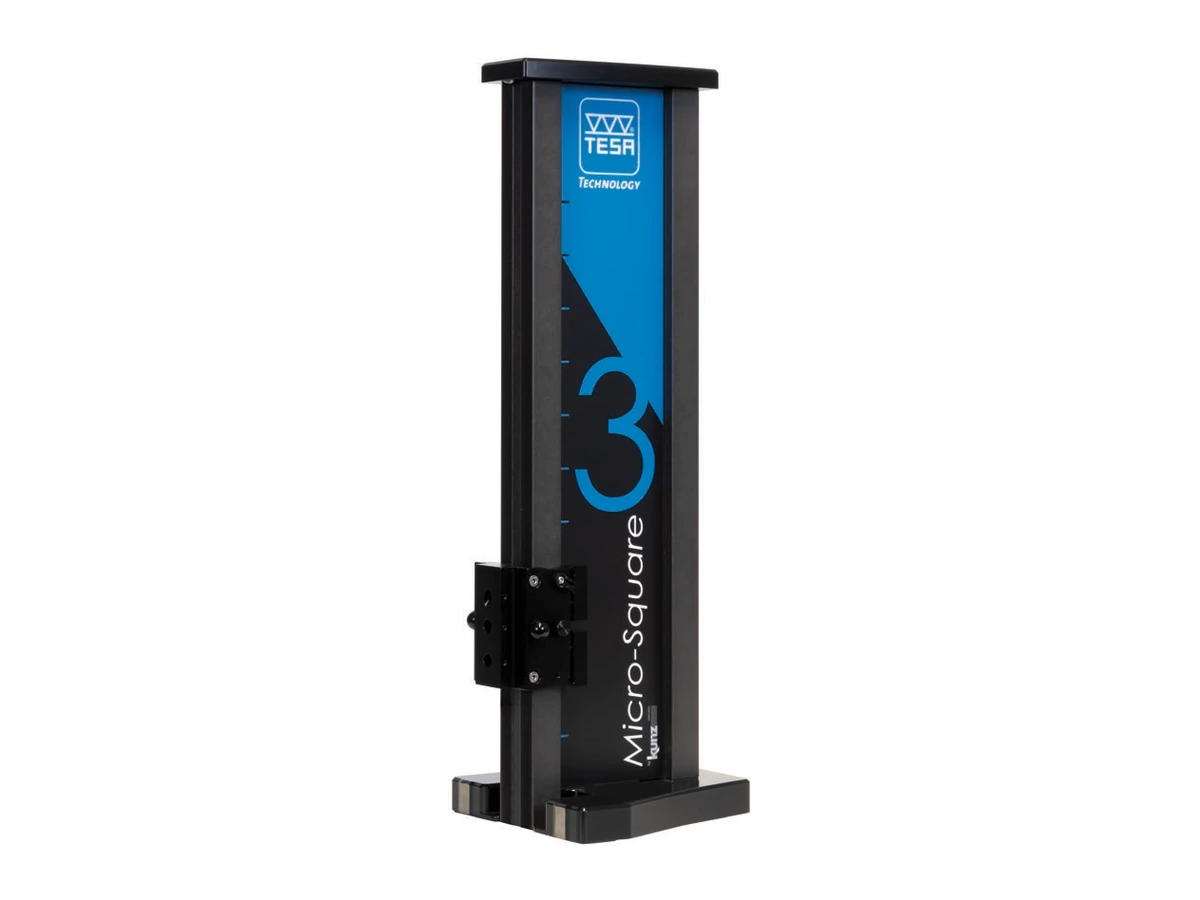

TESA MICRO-SQUARE squareness measuring instrument
High-precision guided TESA system for fast measurement of squareness deviations up to 610 mm height.
- TESA MICRO-SQUARE combines a high-precision guide with electronic acquisition for repeatable squareness inspection.
- 360 or 610 mm application range
- 0.5 µm repeatability
- Squareness deviation limit 1.5 or 2.4 µm
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
The carriage moves along a high-precision guide. A probe detects deviation from the reference face and results are displayed quickly on the TWIN-T10.
Technical design
MICRO-SQUARE 350 and 600 cover 360 and 610 mm. Both achieve 0.5 µm repeatability; squareness deviation limits are 1.5 and 2.4 µm. Resolution with TWIN-T10 is 0.1 µm.
Instruments and sets
Instrument versions include MICRO-SQUARE and SCS calibration certificate. Sets add TWIN-T10, GT31 probe and key.
Accessories and advice
Accessories include a 200 mm probe holder, angle inspection station and cylindrical stylus. Ballbach assists with configuration and calibration.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range / size | Technical features | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|
| 05330400 | Satz MICRO-SQUARE 350 | 360 mm | Repeatability 0.5 µm; limit 1.5 µm | €8,424.00 | ||
05330400 – Additional information about this versionWiederholbarkeit 0,5 µm |
||||||
| 05330401 | Satz MICRO-SQUARE 600 | 610 mm | Repeatability 0.5 µm; limit 2.4 µm | €9,637.00 | ||
05330401 – Additional information about this versionWiederholbarkeit 0,5 µm |
||||||
| 05310400 | MICRO-SQUARE 350 | 360 mm | Repeatability 0.5 µm; limit 1.5 µm | €7,344.00 | ||
05310400 – Additional information about this versionInstrument ohne Anzeige |
||||||
| 05310401 | MICRO-SQUARE 600 | 610 mm | Repeatability 0.5 µm; limit 2.4 µm | €8,557.00 | ||
05310401 – Additional information about this versionInstrument ohne Anzeige |
||||||
