Mitutoyo – Mitutoyo QM-Height
Mitutoyo QM-Height
Digital ABSOLUTE height gauges for fast 1D measurements, with or without air cushion.
- Digital ABSOLUTE height gauges for fast 1D measurements, with or without air cushion.
- Measuring ranges 0–350 or 0–600 mm
- ABSOLUTE linear scale and part programs
- Direct access to height, diameter and pitch functions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Applications and measuring tasks

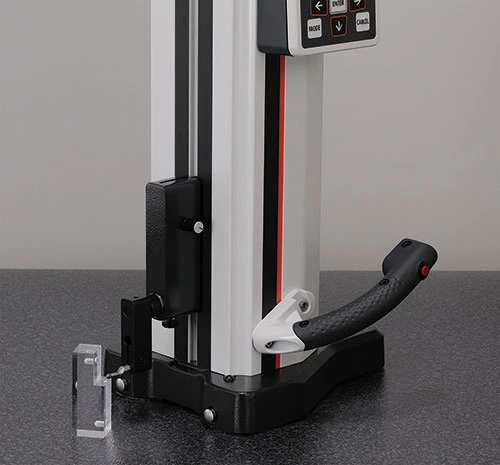

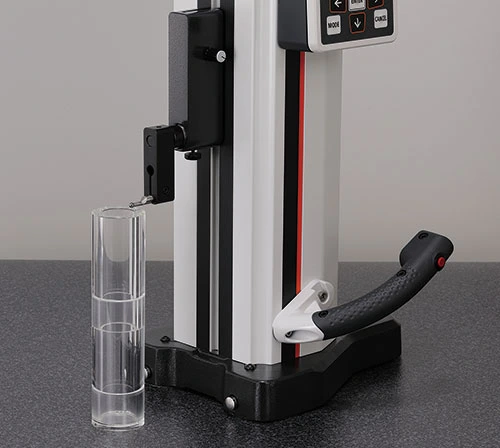

QM-Height is designed for recurring 1D measuring tasks in workshop and quality control. Height, internal and external diameter, pitch and max/min/TIR functions can be called directly, while stored part programs guide repeat routines.
Measuring system and technical design

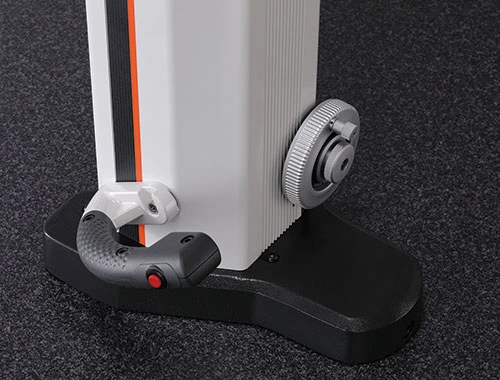

The high-accuracy ABSOLUTE scale retains absolute position. Versions cover 350 or 600 mm and are available with fixed base or air cushion. Resolution can be selected between 0.001 and 0.005 mm.
Operation, evaluation and data output
The fixed control panel supports GO/±NG tolerance decisions, preset and data storage. Long battery life enables largely cordless operation; accessories provide data transfer and printing.
Versions, accessories and Ballbach service
Four versions cover two ranges, each with or without air cushion. The separate accessory family includes probe carriers, inserts, printer and data components. Ballbach supports configuration and calibration.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring span / application range | Resolution | Error limit / repeatability | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|
| 5018001 | ohne Luftkissenabhebung | 0–350 mm | 0,001 / 0,005 mm | ±(2,4 + 2,1L/600) µm · Rechtwinkligkeit 7 µm · 2σ ≤ 1,8 µm | €4,115.00 | ||
5018001 – Additional information about this versionohne Luftkissenabhebung · 0–350 mm |
|||||||
| 5018002 | ohne Luftkissenabhebung | 0–600 mm | 0,001 / 0,005 mm | ±(2,4 + 2,1L/600) µm · Rechtwinkligkeit 12 µm · 2σ ≤ 1,8 µm | €4,954.00 | ||
5018002 – Additional information about this versionohne Luftkissenabhebung · 0–600 mm |
|||||||
| 5018003 | mit Luftkissenabhebung | 0–350 mm | 0,001 / 0,005 mm | ±(2,4 + 2,1L/600) µm · Rechtwinkligkeit 7 µm · 2σ ≤ 1,8 µm | €4,544.00 | ||
5018003 – Additional information about this versionmit Luftkissenabhebung · 0–350 mm |
|||||||
| 5018004 | mit Luftkissenabhebung | 0–600 mm | 0,001 / 0,005 mm | ±(2,4 + 2,1L/600) µm · Rechtwinkligkeit 12 µm · 2σ ≤ 1,8 µm | €5,375.00 | ||
5018004 – Additional information about this versionmit Luftkissenabhebung · 0–600 mm |
|||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
