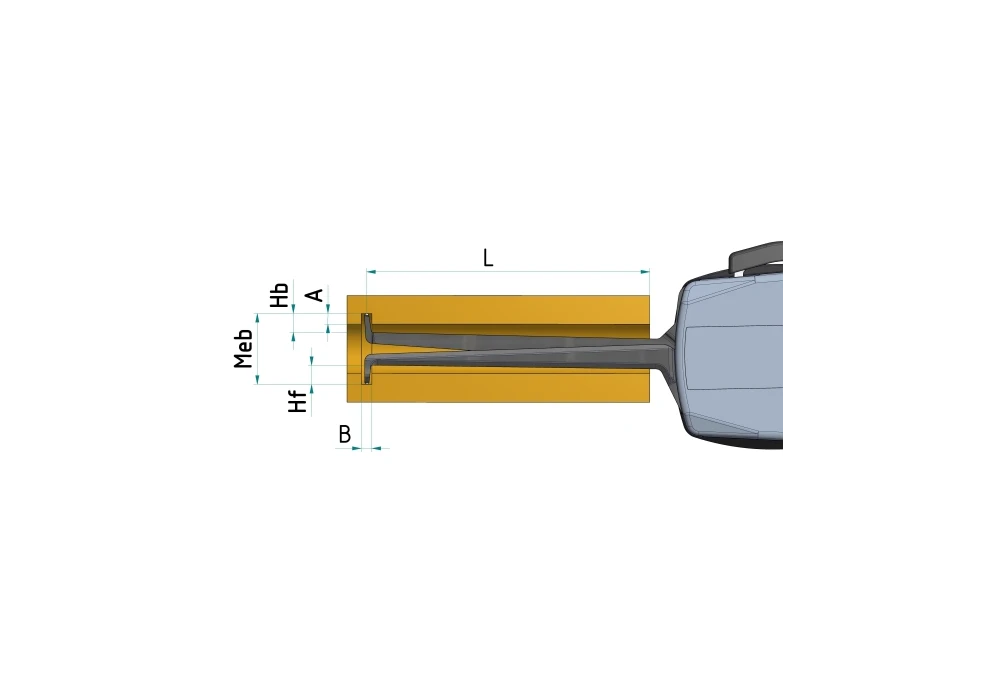

Anwendung 3-Punkt-Messung

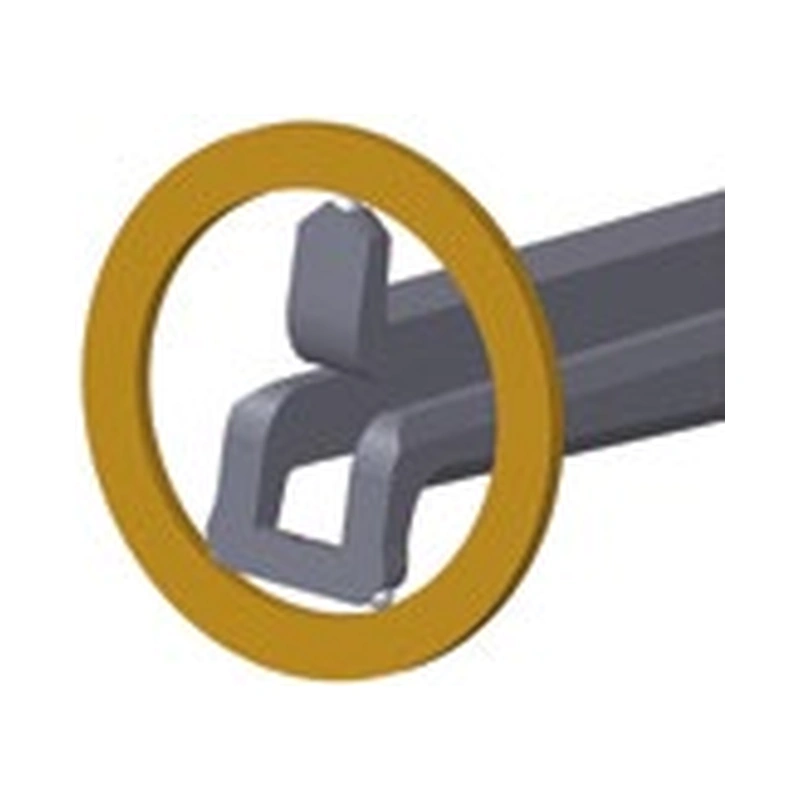

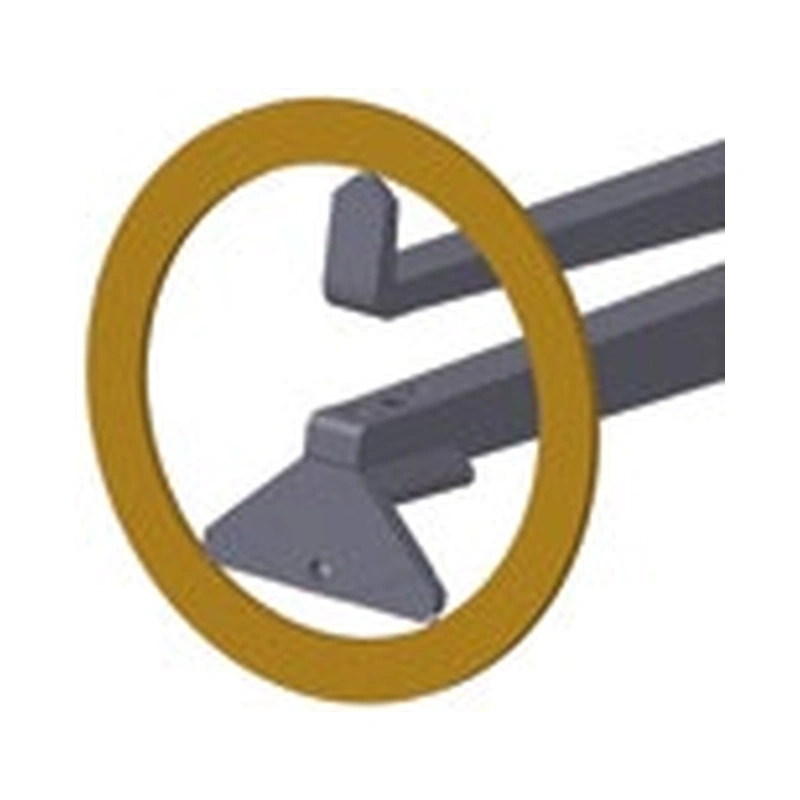

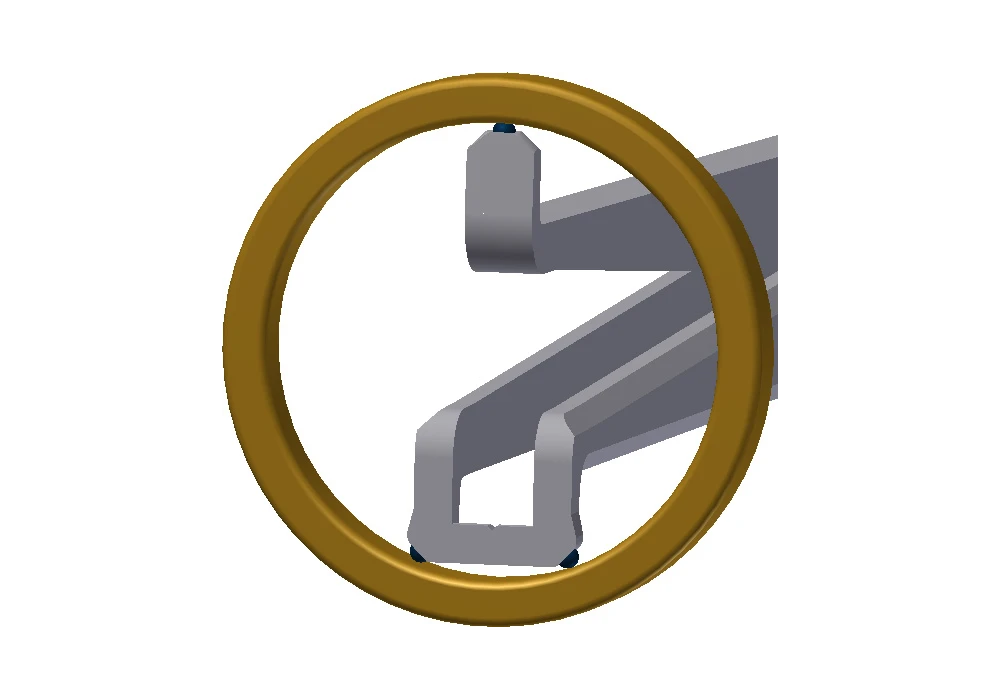

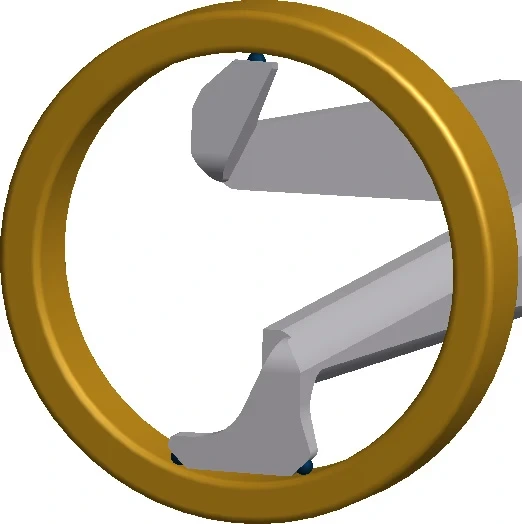

Messkontakt 3-Punkt-Messung

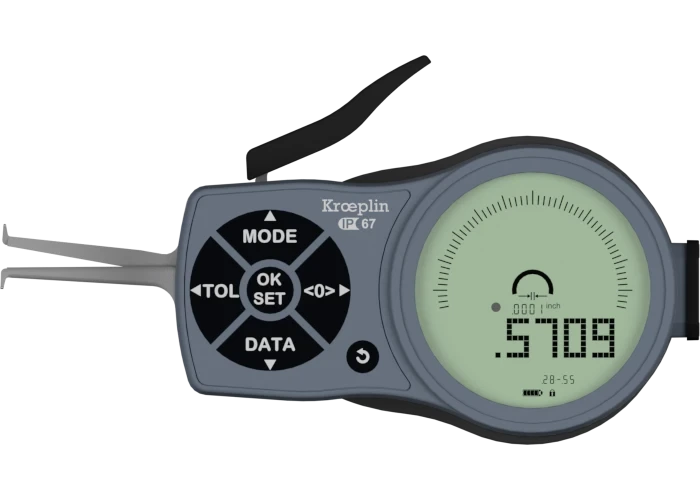

Kroeplin – Elektronische 3-Punkt-Schnelltaster
Electronic 3-point quick gauges
Electronic 3-point quick gauges for reliable internal bore measurement.
- For rapid comparative and series measurements
- Measuring range: 7–75 mm
- Measuring span: 7–20 mm
- Graduation / resolution: 0.002–0.005 mm
- Choice of 6 versions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
Electronic 3-point quick gauges for reliable internal bore measurement.
Quick gauges transfer the measuring movement to an analogue or electronic display and enable rapid comparative measurements. The spring-loaded mechanism supports repeated inspection in production and incoming goods.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Measuring range: 7–75 mm
- Measuring span: 7–20 mm
- Graduation / resolution: 0.002–0.005 mm
- Choice of 6 versions
Typical applications
Typical tasks include rapid external and internal comparative measurements, wall-thickness checks and series inspection. Design, measuring direction, contact shape and the required display determine the suitable version.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements. For suitable instruments, we also provide repair and spare-parts service.
Article variants
Select the suitable version
| Ballbach item no. | Instrument type | Measuring range | Measuring span | Graduation / resolution | Measuring depth | Measuring contact | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| 3318101 | L107P3 | 7-14 | 7 | 0,002 | 34 | 3-point, carbide ball Ø 0,6 | €581.00 | ||
3318101 – Additional information about this version
Quick gauge L107P3, measuring range 7-14 mm is a version of the Electronic 3-point quick gauges product family. Technical features: Measuring range: 7-14 mm; Measuring span: 7 mm; Graduation / resolution: 0,002 mm; Measuring depth: 34 mm.
|
|||||||||
| 3318102 | L210P3 | 10-20 | 10 | 0,005 | 75 | 3-point, carbide ball Ø 1 | €581.00 | ||
3318102 – Additional information about this version
Messkontakt-Form: 3-Punkt, HM-Kugel Ø 1 Quick gauge L210P3, measuring range 10-20 mm is a version of the Electronic 3-point quick gauges product family. Technical features: Measuring range: 10-20 mm; Measuring span: 10 mm; Graduation / resolution: 0,005 mm; Measuring depth: 75 mm.
|
|||||||||

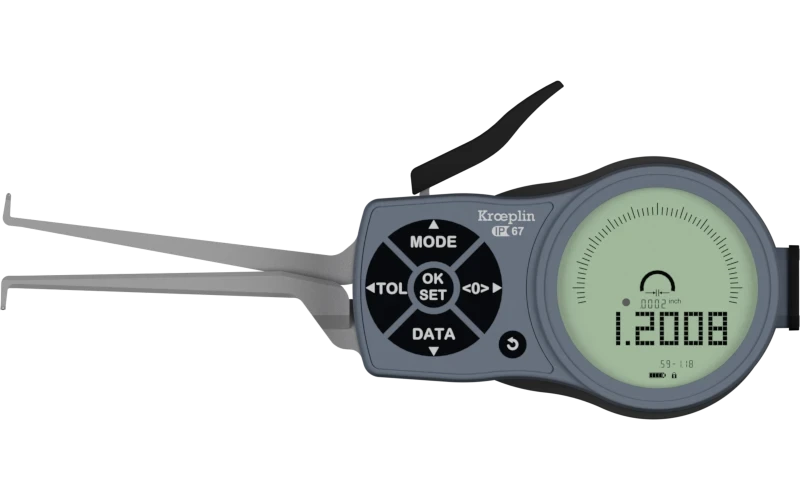

| 3318103 | L215P3 | 15-30 | 15 | 0,005 | 77 | 3-point, carbide ball Ø 1 | €581.00 | ||
3318103 – Additional information about this version
Messkontakt-Form: 3-Punkt, HM-Kugel Ø 1 Quick gauge L215P3, measuring range 15-30 mm is a version of the Electronic 3-point quick gauges product family. Technical features: Measuring range: 15-30 mm; Measuring span: 15 mm; Graduation / resolution: 0,005 mm; Measuring depth: 77 mm.
|
|||||||||

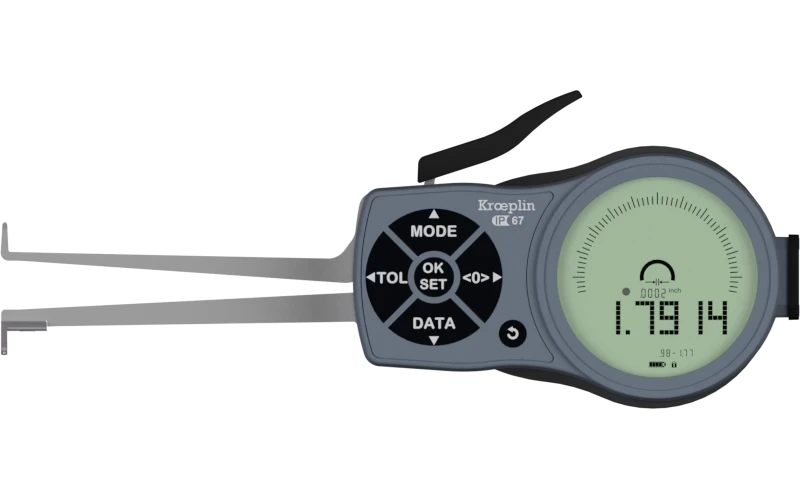

| 3318104 | L225P3 | 25-45 | 20 | 0,005 | 85 | 3-point, carbide ball Ø 1 | €581.00 | ||
3318104 – Additional information about this version
Messkontakt-Form: 3-Punkt, HM-Kugel Ø 1 Quick gauge L225P3, measuring range 25-45 mm is a version of the Electronic 3-point quick gauges product family. Technical features: Measuring range: 25-45 mm; Measuring span: 20 mm; Graduation / resolution: 0,005 mm; Measuring depth: 85 mm.
|
|||||||||

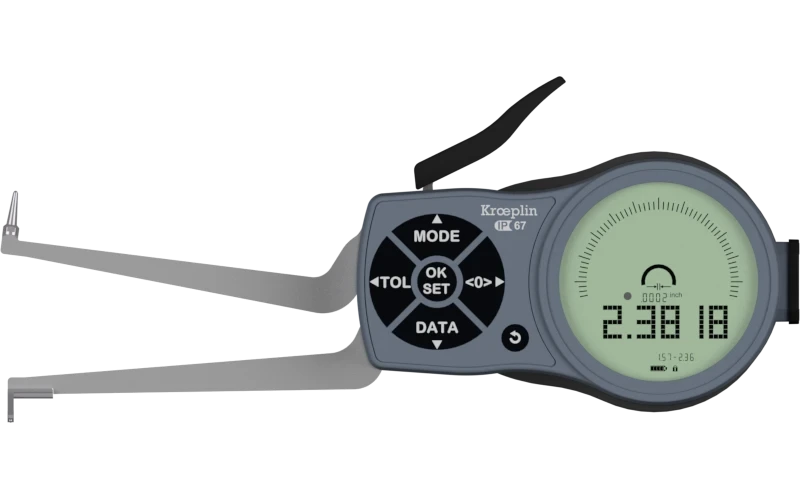

| 3318105 | L240P3 | 40-60 | 20 | 0,005 | 84 | 3-point, carbide ball Ø 1 | €581.00 | ||
3318105 – Additional information about this version
Messkontakt-Form: 3-Punkt, HM-Kugel Ø 1 Quick gauge L240P3, measuring range 40-60 mm is a version of the Electronic 3-point quick gauges product family. Technical features: Measuring range: 40-60 mm; Measuring span: 20 mm; Graduation / resolution: 0,005 mm; Measuring depth: 84 mm.
|
|||||||||

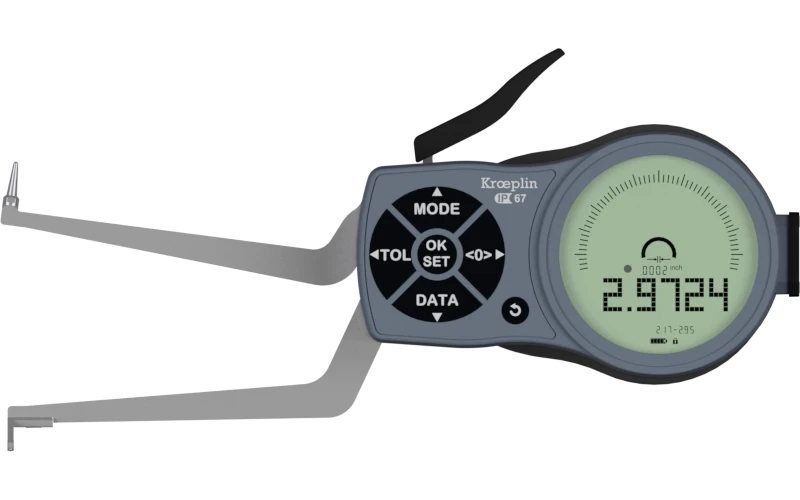

| 3318106 | L255P3 | 55-75 | 20 | 0,005 | 84 | 3-point, carbide ball Ø 1 | €581.00 | ||
3318106 – Additional information about this version
Messkontakt-Form: 3-Punkt, HM-Kugel Ø 1 Quick gauge L255P3, measuring range 55-75 mm is a version of the Electronic 3-point quick gauges product family. Technical features: Measuring range: 55-75 mm; Measuring span: 20 mm; Graduation / resolution: 0,005 mm; Measuring depth: 84 mm.
|
|||||||||
