SCHWENK – SUBITO VARIO SV / SVS Innen-Feinmessgeräte

SUBITO VARIO SV / SVS precision bore gauges

Modular SUBITO system for frequently changing bore diameters from 6 to 800 mm.

  • One basic instrument for many ranges
  • Quick-change probe heads and anvils
  • SV for universal through-bore measurement
  • SVS additionally for blind bores from about 1.5 mm above the bottom
Open inquiry cart

Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.

Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.

Product description

Technology and application at a glance

Open this section for the complete technical and practical details.

Show full description Close description

Modular system for changing tasks

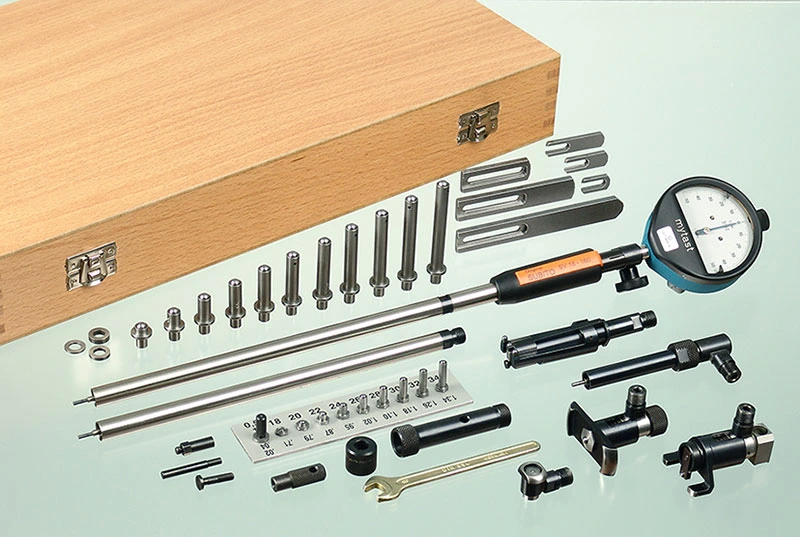

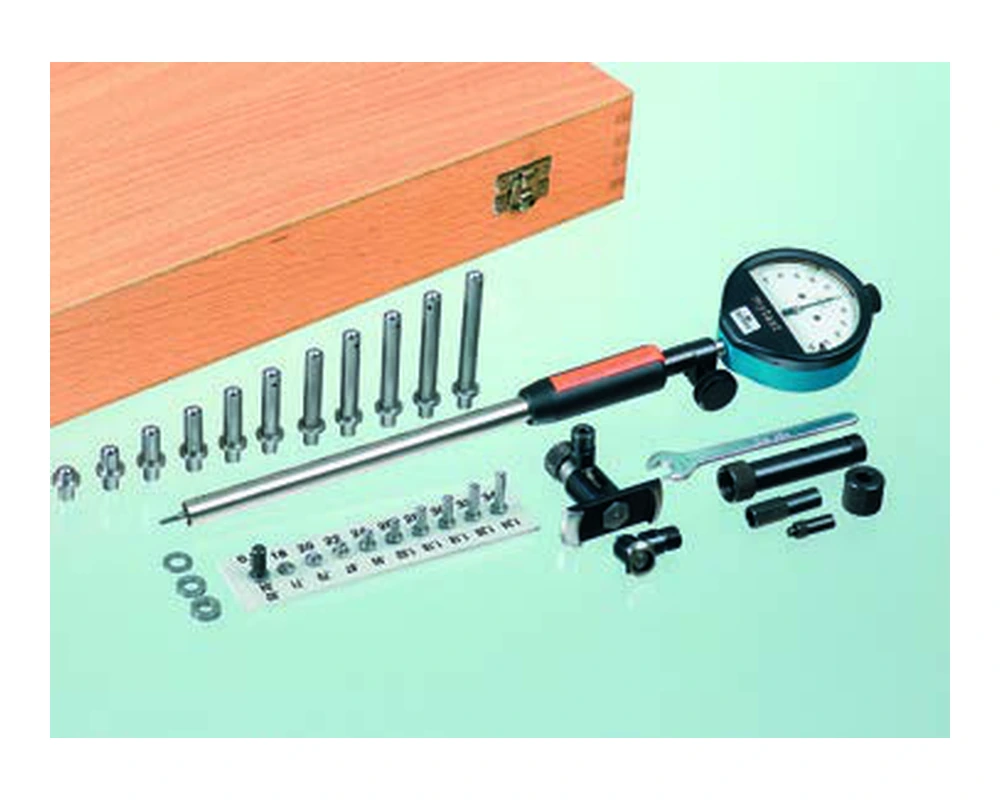

SUBITO VARIO combines an upper unit with interchangeable probe heads, anvils and accessories. One system can therefore cover many bore diameters from 6 to 800 mm and is particularly useful when inspection tasks change frequently.

VARIO SV for universal applications

The SV version combines one upper unit with one or two probe heads. It provides the familiar self-centring action and measuring reliability of the SUBITO range and can be converted quickly for different through bores.

VARIO SVS for blind bores

SVS covers 18 to 160 mm and includes additional blind-hole heads and measuring slides for 20 to 140 mm. Measurements are possible from approximately 1.5 mm above the bore bottom.

High repeatability

Repeatability is below 0.5 µm up to 160 mm and below 1.5 µm in the large ranges. Setting rings, gauges or a suitable setting instrument establish the reference value.

Article variants

Select the suitable version

Ballbach item no. Version Measuring range Measuring depth Graduation / resolution Net price Details Inquiry
4060002 SV Stahl 18 - 50 €454.00
4060003 SV Stahl 50 - 160 €465.00
4060004 SV Stahl 18 - 160 €742.00
4060005 SV Stahl 160 - 430 €1,195.00
4060006 SV Stahl 400 - 800 €3,546.00
4060007 SV Stahl 160 - 800 €4,525.00
4060101 SV Hartmetall 6 - 18 €995.00
4060102 SV Hartmetall 18 - 50 €529.00
4060103 SV Hartmetall 50 - 160 €562.00
4060104 SV Hartmetall 18 - 160 €859.00
4060105 SV Hartmetall 160 - 430 €1,257.00
4060106 SV Hartmetall 400 - 800 €3,591.00
4060107 SV Hartmetall 160 - 800 €4,609.00
4061001 SVS Stahl 18 - 160 €2,899.00
4061002 SVS Hartmetall 18 - 160 €2,927.00
