SCHWENK – SUBITO ST Innen-Feinmessgeräte

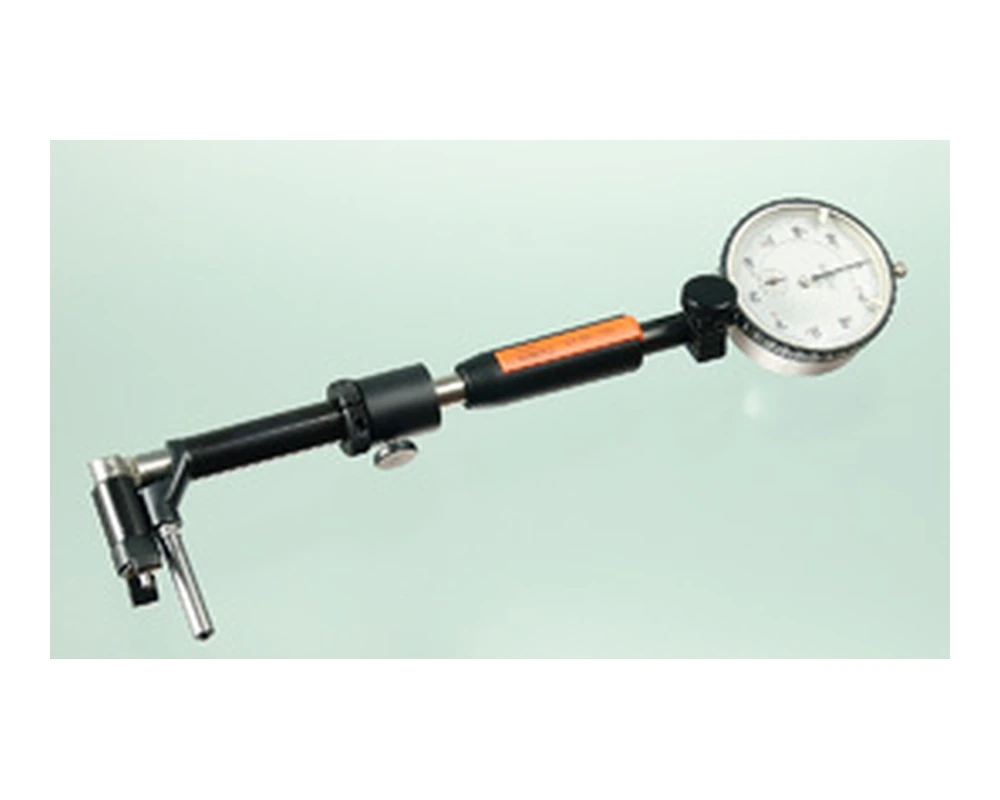

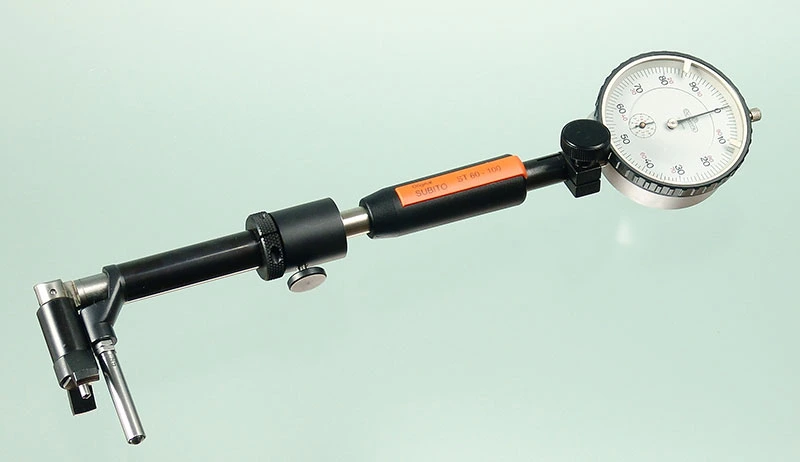

SUBITO ST precision bore gauges
Bore gauges for bearing seats, grooves and recesses behind smaller entry bores.
- Target measuring range about 30 to 530 mm
- Measuring anvil swivels through 180°
- Large retraction up to about 40% of target diameter
- Optional measuring depth up to 2000 mm
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Reach concealed measuring positions

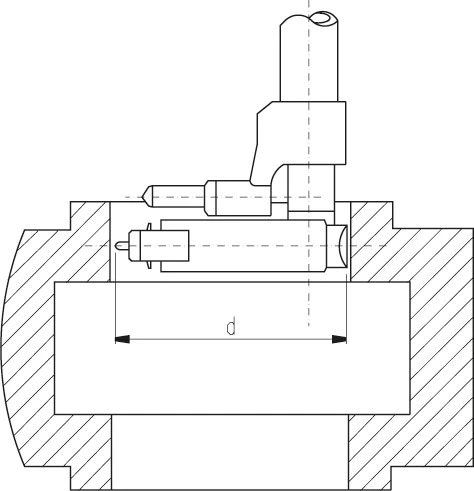

SUBITO ST is intended for bearing bores, grooves and recesses that can only be reached through a smaller preceding bore. The head is inserted and then expanded at the actual measuring position.
Swivelling anvil with large retraction

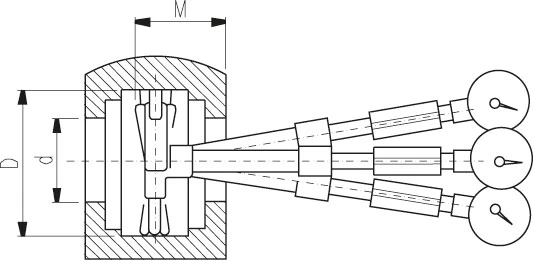

The measuring anvil swivels through 180°. Retraction can be up to about 40% of the target diameter, enabling access through substantially smaller openings.
Wide diameter and depth capability

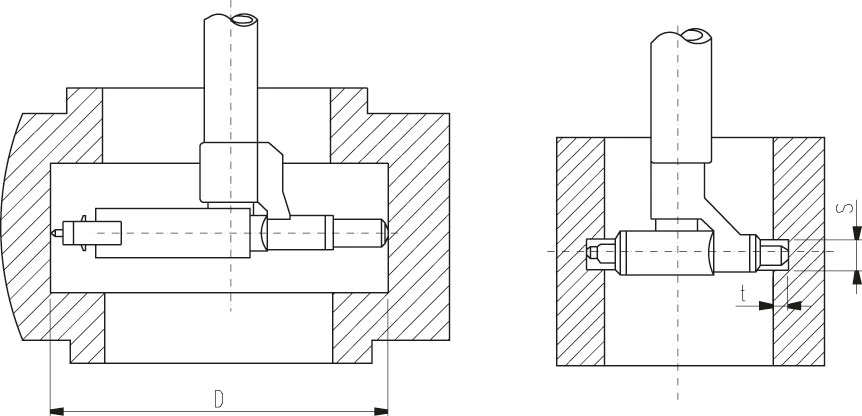

Seven graduated sizes provide reliable centring. Target diameters range from approximately 30 to 530 mm. Special versions can reach measuring depths of about 2000 mm.
Reliable referencing
The gauge is set using a setting ring or suitable special jaws on the ESU setting instrument. Repeatability is below 1.0 or 1.5 µm in the usual ranges.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Measuring depth | Graduation / resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|
| 4070001 | ST 52 | 30 - 52 | 60 | €4,464.00 | |||
4070001 – Additional information about this version
SUBITO ST 52, 30–52 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 30 - 52 mm; Measuring depth: 60 mm. |
|||||||
| 4070002 | ST 70 | 50 - 70 | 60 | €3,587.00 | |||
4070002 – Additional information about this version
SUBITO ST 70, 50–70 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 50 - 70 mm; Measuring depth: 60 mm. |
|||||||
| 4070003 | ST 100 | 60 - 100 | 60 | €3,472.00 | |||
4070003 – Additional information about this version
SUBITO ST 100, 60–100 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 60 - 100 mm; Measuring depth: 60 mm. |
|||||||
| 4070004 | ST 150 | 80 - 150 | 95 | €3,917.00 | |||
4070004 – Additional information about this version
SUBITO ST 150, 80–150 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 80 - 150 mm; Measuring depth: 95 mm. |
|||||||
| 4070005 | ST 220 | 120 - 220 | 107 | €4,217.00 | |||
4070005 – Additional information about this version
SUBITO ST 220, 120–220 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 120 - 220 mm; Measuring depth: 107 mm. |
|||||||
| 4070006 | ST 360 | 180 - 360 | 148 | €5,451.00 | |||
4070006 – Additional information about this version
SUBITO ST 360, 180–360 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 180 - 360 mm; Measuring depth: 148 mm. |
|||||||
| 4070007 | ST 530 | 290 - 530 | 170 | €6,624.00 | |||
4070007 – Additional information about this version
SUBITO ST 530, 290–530 mm is a version of the SUBITO ST precision bore gauges product family. Technical features: Measuring range: 290 - 530 mm; Measuring depth: 170 mm. |
|||||||
