SCHWENK – OSIMESS Innen-Feinmessgeräte OS / OSH / OSS

OSIMESS OS / OSH / OSS precision bore gauges

Modular mechanical two-point comparative gauges for small bores from about 1 to 40 mm.

  • For workshop, production and inspection room use
  • Fast tool-free change of probe heads and needles
  • For dial indicators, comparators or electronic probes
  • Standard, carbide and blind-hole versions
Open inquiry cart

Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.

Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.

Product description

Technology and application at a glance

Open this section for the complete technical and practical details.

Show full description Close description

Precise measurement of small bores

OSIMESS is a mechanical two-point comparative system for small bores from approximately 1 to 40 mm. It is suitable for production, incoming inspection, final inspection and metrology use.

Fast conversion through modular design

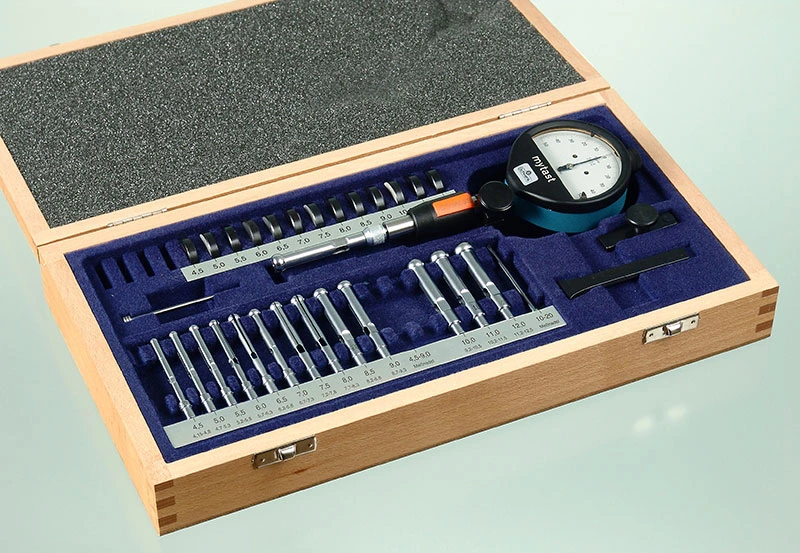

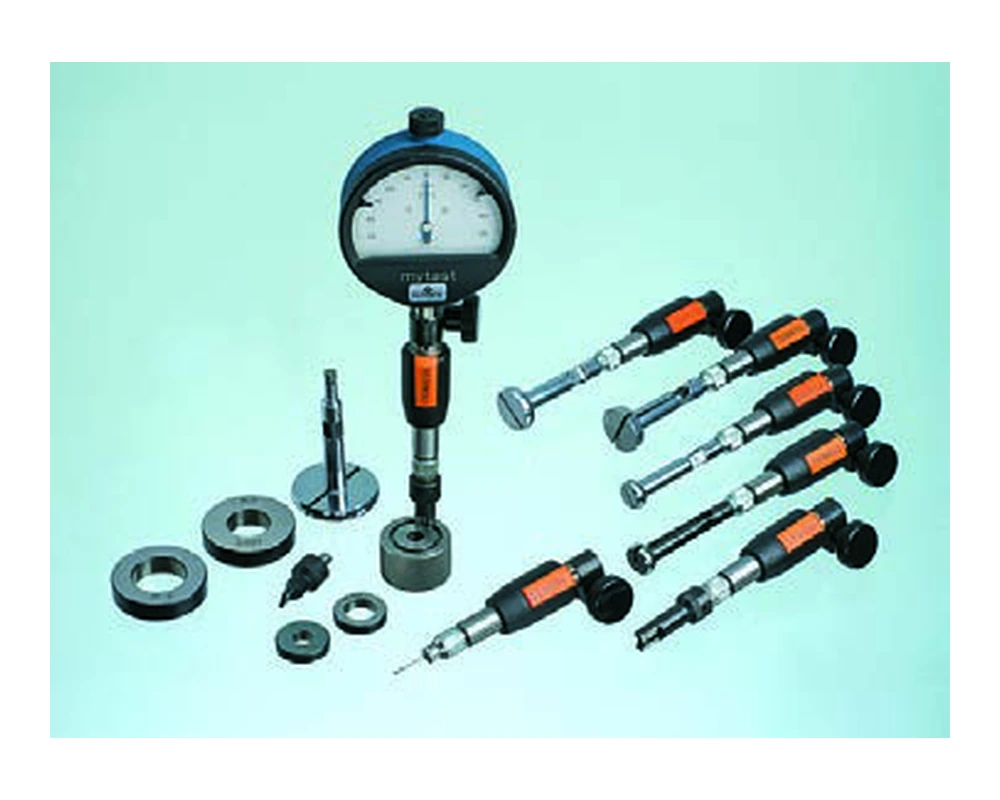

Probe heads and measuring needles are held by a collet and can be changed without tools. The modular combination of holder, head, carbide drive needle, indicator and setting ring can be tailored to the measuring task.

Choice of display instruments

Mechanical dial indicators, precision comparators or electronic probes can be used. The system therefore supports mobile manual checks as well as documented or automated measuring stations.

Assess diameter and form

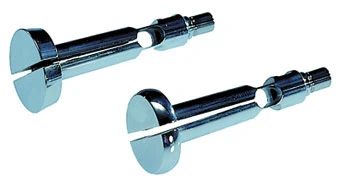

Measurements in different directions and depths reveal nominal-size deviation as well as roundness, taper, bell-mouth and barrel-shaped bore conditions. Standard, carbide and blind-hole probe heads are available for different applications.

Article variants

Select the suitable version

Ballbach item no. Version Measuring range Measuring depth Graduation / resolution Net price Details Inquiry
4020001 OS 4.15 - 7.8 €671.00
4020002 OS 7.7 - 12.5 €672.00
4020003 OS 4.15 - 12.5 €1,141.00
4020004 OS 12.2 - 20.6 €810.00
4020101 OSH 0.95 - 1.55 €647.00
4020102 OSH 1.5 - 4.2 €864.00
4020103 OSH 0.95 - 4.2 €1,365.00
4020104 OSH 4.15 - 7.8 Price on request
4020105 OSH 7.7 - 12.5 Price on request
4020106 OSH 4.15 - 12.5 Price on request
4020107 OSH 12.2 - 20.6 Price on request
4020201 OSS 1.5 - 4.2 €1,430.00
4020202 OSS 4.15 - 7.8 €969.00
4020203 OSS 7.7 - 12.5 €926.00
4020204 OSS 4.15 - 12.5 €1,578.00
4020205 OSS 12.2 - 20.6 €1,081.00

Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
