DIATEST precision bore gauges

Modular two-point comparative bore gauges for small bores and close tolerances.

  • For through and blind bores
  • Modular probe head, drive needle, holder and indicator
  • Self-centring measuring jaws
  • For single inspections and series checks
Open inquiry cart

Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.

Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.

Product description

Technology and application at a glance

Open this section for the complete technical and practical details.

Show full description Close description

Comparative measurement of small bores

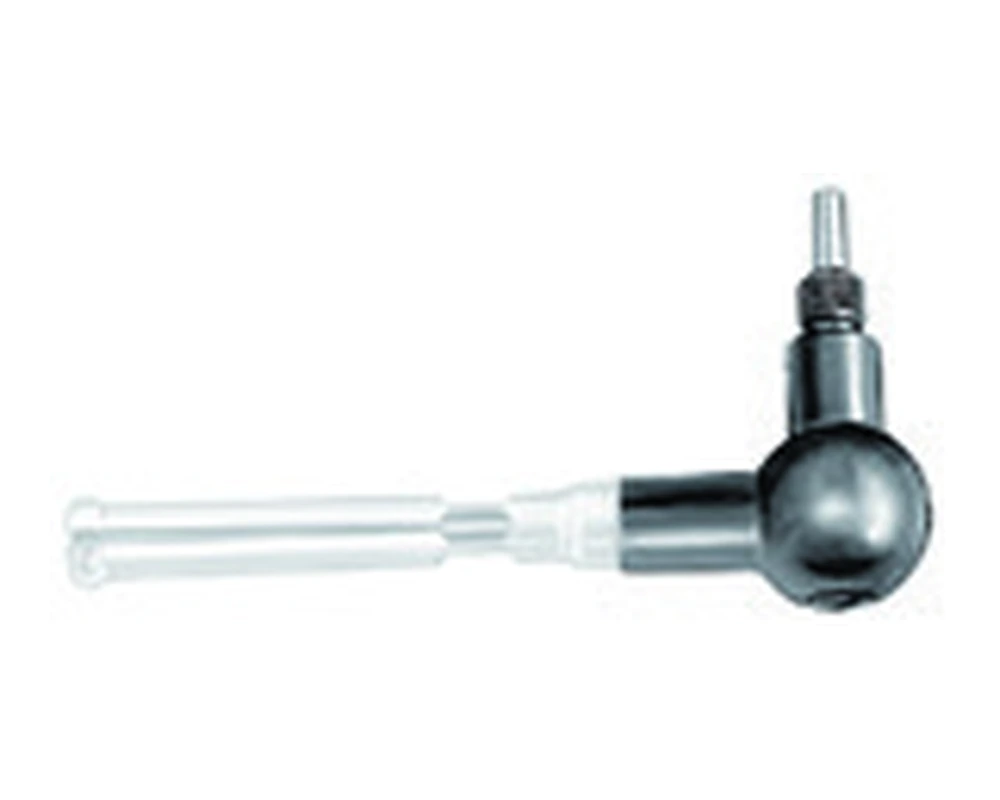

DIATEST bore gauges are designed for precise two-point comparative measurements in small bores. Depending on the probe head, through bores, blind bores and parallel distances can be inspected.

Modular system for different tasks

A complete measuring system consists of at least a probe head, drive needle, holder with 8 mm clamping shank, indicator and setting ring. The cone of the drive needle transfers movement at a 1:1 ratio. Components can be combined or exchanged to suit the application.

Self-centring and form inspection

Semicircular measuring jaws centre the probe head in the bore. Gentle rocking identifies the reversal point. Measurements at different depths and directions reveal diameter as well as ovality, taper, barrel and bell-mouth deviations.

Reliable setting and repeatable inspection

A suitable setting ring is used to establish the reference value. With a measuring stand, reversal-point searching can be eliminated, supporting faster and less operator-dependent series inspection.

Article variants

Select the suitable version

Ballbach item no. Version Measuring range Measuring depth Graduation / resolution Net price Details Inquiry
4004001 Standard, 0,47–0,97 mm 0.47 - 0.97 €1,106.00
4004002 Standard, 0,95–1,55 mm 0.95 - 1.55 €687.00
4004003 Standard, 1,50–3,20 mm 1.5 - 3.2 €994.00
4005003 Sackloch, 3,05–3,95 mm 3.05 - 3.95 €1,384.00
4004004 Standard, 3,70–7,80 mm 3.7 - 7.8 €1,061.00
4005004 Sackloch, 7,70–9,80 mm 7.7 - 9.8 €1,439.00
4004005 Standard, 9,40–16,60 mm 9.4 - 16.6 €1,096.00
4005005 Sackloch, 17,40–20,60 mm 17.4 - 20.6 €1,428.00
4004006 Standard, 20,40–27,60 mm 20.4 - 27.6 €1,344.00
4005006 Sackloch, 27,40–30,60 mm 27.4 - 30.6 €1,818.00
4004007 Standard, 28,90–41,10 mm 28.9 - 41.1 €1,170.00
4005007 Sackloch, 28,90–41,10 mm 28.9 - 41.1 €1,336.00
