Innenkantentaster IKT
IKT internal-edge gauge
Direct-reading internal edge gauge for the largest diameter of tapered bores, countersinks and grooves.
- For taper and countersink geometries
- Direct reading on the indicator
- Standard measuring cone 90°
- Ranges from about 0.5 to 100 mm
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Determine the largest diameter directly

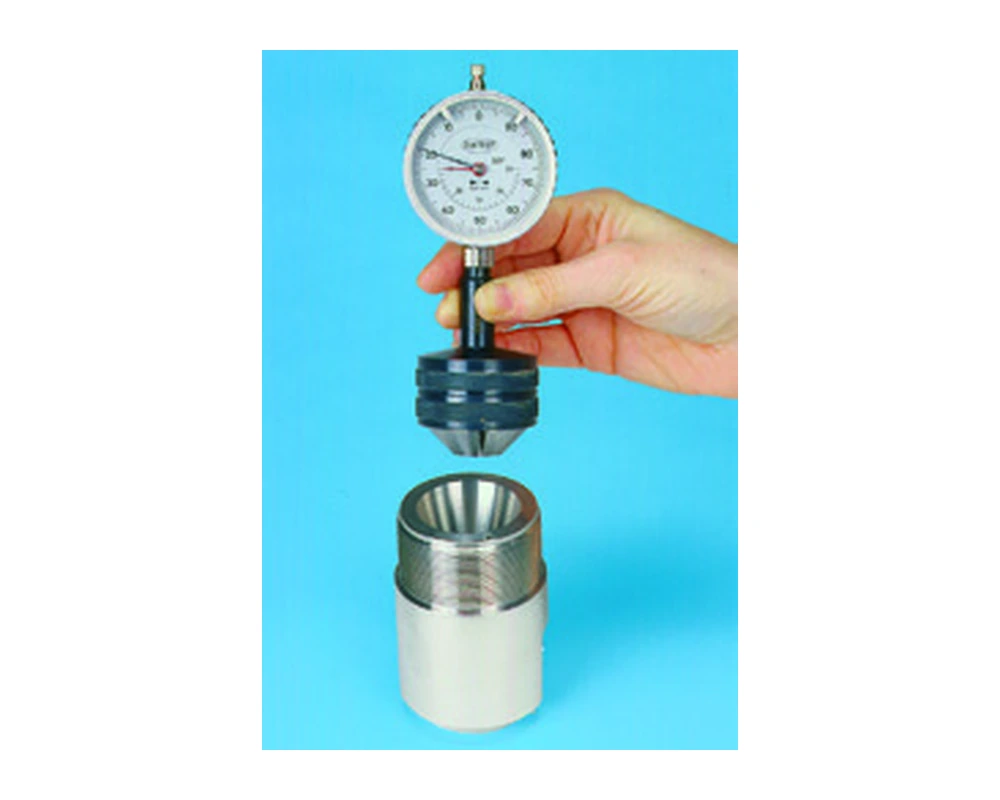

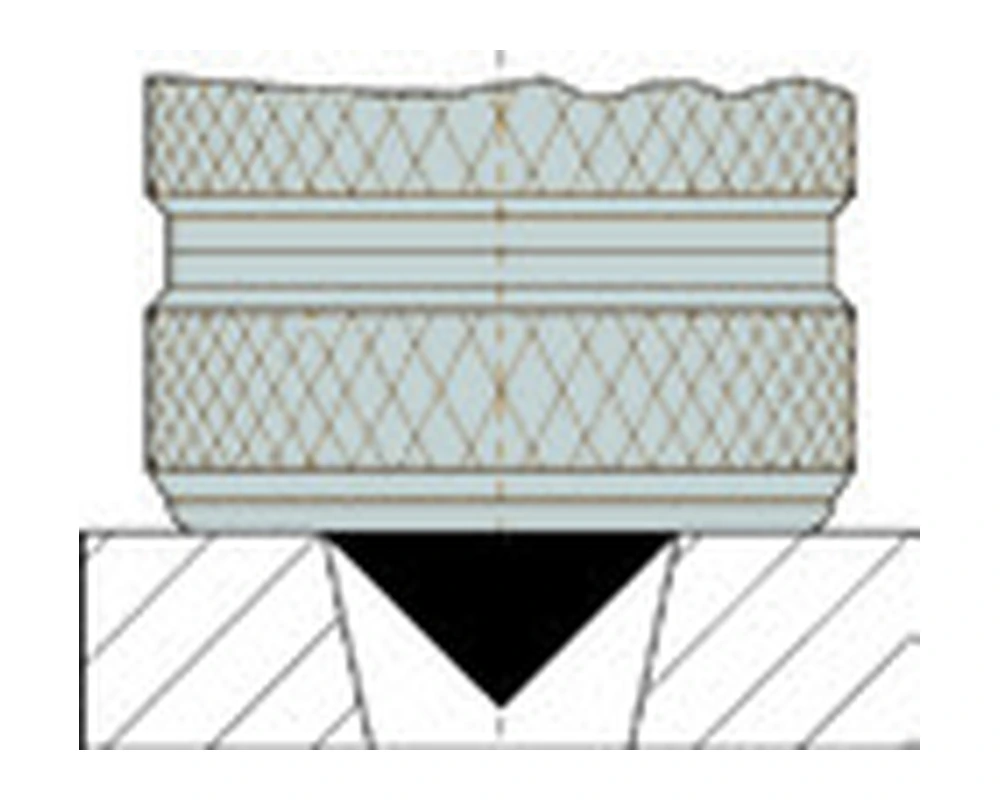

The IKT measures the largest diameter of a tapered bore or groove directly. The measuring cone is inserted into the contour and the reference collar is pressed against the workpiece surface.
Typical applications
Applications include countersinks, collet seats, Morse tapers, taper-pin bores, V-belt pulleys and T-slots. The result is read directly on the attached indicator.
Different sizes and cone angles
A 90° measuring cone is standard. Available sizes cover approximately 0.5 to 100 mm. Smaller or customer-specific cone angles can be supplied for special geometries.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Measuring depth | Graduation / resolution | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|
| 4100001 | IKT 90° | 0.5 - 20 | €573.00 | ||||
4100001 – Additional information about this version
IKT 90°, 0,5–20 mm is a version of the IKT internal-edge gauge product family. Technical features: Measuring range: 0.5 - 20 mm. |
|||||||
| 4100002 | IKT 90° | 20 - 40 | €875.00 | ||||
4100002 – Additional information about this version
IKT 90°, 20–40 mm is a version of the IKT internal-edge gauge product family. Technical features: Measuring range: 20 - 40 mm. |
|||||||
| 4100003 | IKT 90° | 40 - 60 | €1,026.00 | ||||
4100003 – Additional information about this version
IKT 90°, 40–60 mm is a version of the IKT internal-edge gauge product family. Technical features: Measuring range: 40 - 60 mm. |
|||||||
| 4100004 | IKT 90° | 60 - 80 | €1,112.00 | ||||
4100004 – Additional information about this version
IKT 90°, 60–80 mm is a version of the IKT internal-edge gauge product family. Technical features: Measuring range: 60 - 80 mm. |
|||||||
| 4100005 | IKT 90° | 80 - 100 | €1,315.00 | ||||
4100005 – Additional information about this version
IKT 90°, 80–100 mm is a version of the IKT internal-edge gauge product family. Technical features: Measuring range: 80 - 100 mm. |
|||||||
