TESA – TESATAST
TESATAST lever test indicators

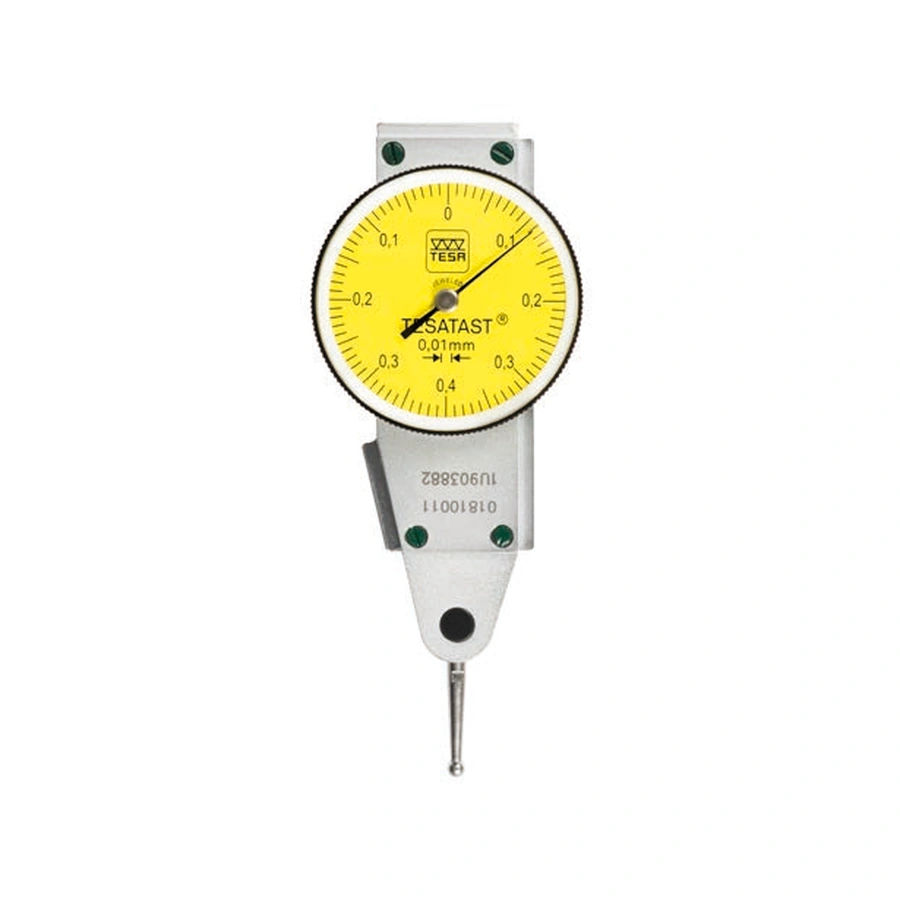

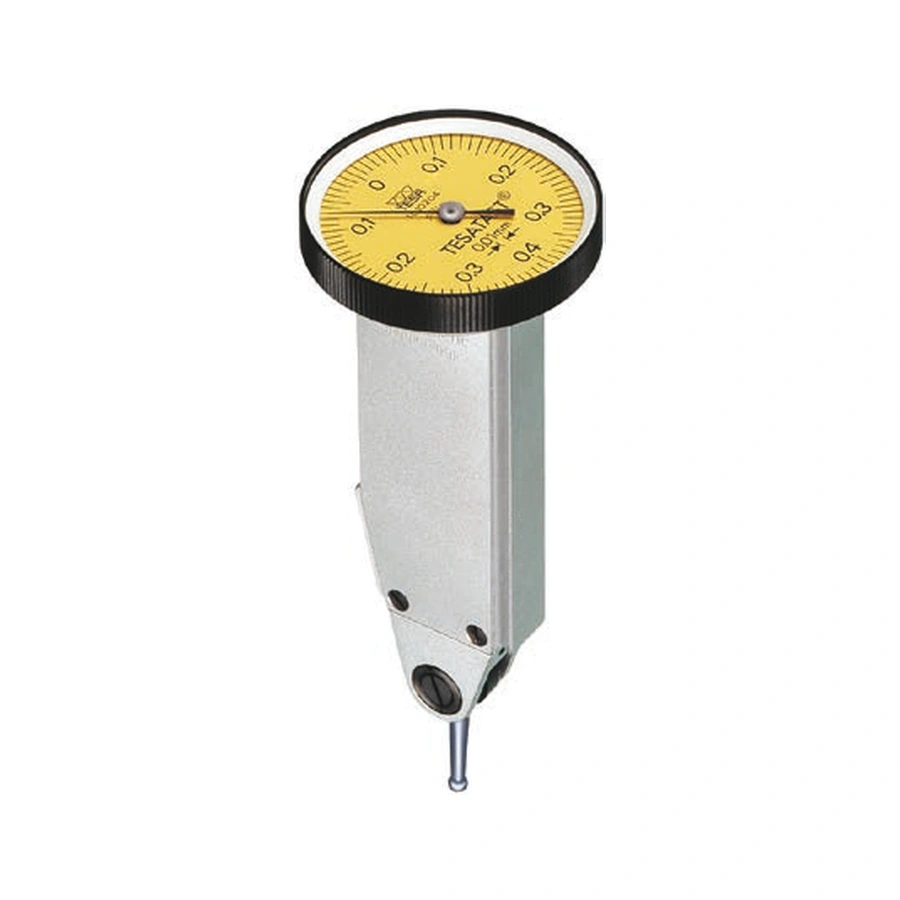

TESATAST in standard, vertical and lateral versions.
- For comparative, run-out and alignment measurements
- Measuring range: 0.2–0.8 mm
- Resolution: 0,002 mm, 0,01 mm
- Choice of 13 versions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
TESATAST in standard, vertical and lateral versions.
Dial gauges, precision comparators and test indicators display small displacement or dimensional deviations relative to a set reference. They are used in stands, inspection fixtures and directly on machines.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Measuring range: 0.2–0.8 mm
- Resolution: 0,002 mm, 0,01 mm
- Choice of 13 versions
Typical applications
Typical applications include radial and axial run-out checks, alignment, centring, height comparison and monitoring small movements. Measuring range, resolution, contact arrangement and protection class must suit the inspection task.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Scale division | Dial diameter | Dial scale | Stylus length | Measuring force | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 3502005 | Standard | 0.8 mm | 0.01 mm | 28 mm | 0 - 0.4 - 0 | 12.53 mm | 0.15 N | €179.00 | ||
3502005 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.8 mm; scale division 0.01 mm; dial diameter 28 mm; dial scale 0 - 0.4 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3502006 | Standard | 0.8 mm | 0.01 mm | 38 mm | 0 - 0.4 - 0 | 12.53 mm | 0.15 N | €191.00 | ||
3502006 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.8 mm; scale division 0.01 mm; dial diameter 38 mm; dial scale 0 - 0.4 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3502007 | Standard | 0.5 mm | 0.01 mm | 28 mm | 0 - 0.25 - 0 | 36.53 mm | 0.06 N | €204.00 | ||
3502007 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.5 mm; scale division 0.01 mm; dial diameter 28 mm; dial scale 0 - 0.25 - 0; stylus length 36.53 mm; measuring force 0.06 N. |
||||||||||
| 3502008 | Standard | 0.5 mm | 0.01 mm | 38 mm | 0 - 0.25 - 0 | 36.53 mm | 0.06 N | €221.00 | ||
3502008 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.5 mm; scale division 0.01 mm; dial diameter 38 mm; dial scale 0 - 0.25 - 0; stylus length 36.53 mm; measuring force 0.06 N. |
||||||||||
| 3502009 | Standard | 0.2 mm | 0.002 mm | 28 mm | 0 - 100 - 0 | 12.53 mm | 0.15 N | €204.00 | ||
3502009 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.2 mm; scale division 0.002 mm; dial diameter 28 mm; dial scale 0 - 100 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3502010 | Standard | 0.2 mm | 0.002 mm | 38 mm | 0 - 100 - 0 | 12.53 mm | 0.15 N | €222.00 | ||
3502010 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.2 mm; scale division 0.002 mm; dial diameter 38 mm; dial scale 0 - 100 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3504204 | Vertical | 0.8 mm | 0.01 mm | 28 mm | 0 - 0.4 - 0 | 12.53 mm | 0.15 N | €341.00 | ||
3504204 – Additional information about this version
TESATAST lever test indicators, Vertical version. Technical data: measuring range 0.8 mm; scale division 0.01 mm; dial diameter 28 mm; dial scale 0 - 0.4 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3504205 | Vertical | 0.5 mm | 0.01 mm | 28 mm | 0 - 0.25 - 0 | 36.53 mm | 0.06 N | €476.00 | ||
3504205 – Additional information about this version
TESATAST lever test indicators, Vertical version. Technical data: measuring range 0.5 mm; scale division 0.01 mm; dial diameter 28 mm; dial scale 0 - 0.25 - 0; stylus length 36.53 mm; measuring force 0.06 N. |
||||||||||
| 3504304 | Vertical | 0.2 mm | 0.002 mm | 38 mm | 0 - 100 - 0 | 12.53 mm | 0.15 N | €427.00 | ||
3504304 – Additional information about this version
TESATAST lever test indicators, Vertical version. Technical data: measuring range 0.2 mm; scale division 0.002 mm; dial diameter 38 mm; dial scale 0 - 100 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3505011 | Lateral | 0.8 mm | 0.01 mm | 28 mm | 0 - 0.4 - 0 | 12.53 mm | 0.15 N | €322.00 | ||
3505011 – Additional information about this version
TESATAST lever test indicators, Lateral version. Technical data: measuring range 0.8 mm; scale division 0.01 mm; dial diameter 28 mm; dial scale 0 - 0.4 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| 3505012 | Lateral | 2 mm | 0.02 mm | 38 mm | 0 - 1.0 - 0 | 36.53 mm | 0.06 N | €344.00 | ||
3505012 – Additional information about this version
TESATAST lever test indicators, Lateral version. Technical data: measuring range 2 mm; scale division 0.02 mm; dial diameter 38 mm; dial scale 0 - 1.0 - 0; stylus length 36.53 mm; measuring force 0.06 N. |
||||||||||
| 3505013 | Lateral | 0.2 mm | 0.002 mm | 28 mm | 0 - 100 - 0 | 12.53 mm | 0.15 N | €361.00 | ||
3505013 – Additional information about this version
TESATAST lever test indicators, Lateral version. Technical data: measuring range 0.2 mm; scale division 0.002 mm; dial diameter 28 mm; dial scale 0 - 100 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
| S18001695 | Standard | 0.2 mm | 0.001 mm | 38 mm | 0 - 100 - 0 | 12.53 mm | 0.15 N | €230.00 | ||
S18001695 – Additional information about this versionTESATAST lever test indicators, Standard version. Technical data: measuring range 0.2 mm; scale division 0.001 mm; dial diameter 38 mm; dial scale 0 - 100 - 0; stylus length 12.53 mm; measuring force 0.15 N. |
||||||||||
