TESA

TESA – P-LINE

P-LINE lever test indicators

P-LINE in standard, vertical and lateral versions.

  • For comparative, runout and alignment measurements
  • Measuring range: 0.6–3 mm
  • Scale division: 0.01 mm, 0.002 mm, 0.001 mm
  • Choice of 10 versions
Open inquiry cart

Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.

Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.

Product description

Technology and application at a glance

Open this section for the complete technical and practical details.

Show full description Close description

Application and measuring principle

P-LINE in standard, vertical and lateral versions.

Dial gauges, precision comparators and test indicators display small displacement or dimensional deviations relative to a set reference. They are used in stands, inspection fixtures and directly on machines.

Versions and technical selection

The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.

  • Measuring range: 0.2–0.8 mm
  • Resolution: 0,01 mm, 0,002 mm, 0,001 mm
  • Choice of 10 versions

Typical applications

Typical applications include radial and axial run-out checks, alignment, centring, height comparison and monitoring small movements. Measuring range, resolution, contact arrangement and protection class must suit the inspection task.

Advice, calibration and service

Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements.

Article variants

Select the suitable version

Ballbach item no. Version Measuring range Scale division Dial diameter Dial scale Travel per revolution Stylus length Measuring force Net price Details Inquiry
3511001 Standard 1.5 mm 0.01 mm 27 mm 0 - 25 - 50 0.5 mm 18 mm 0.35 N €586.00
3511002 Standard 1.5 mm 0.01 mm 40 mm 0 - 25 - 50 0.5 mm 18 mm 0.35 N €598.00
3511003 Standard 3 mm 0.01 mm 27 mm 0 - 50 - 100 1 mm 36 mm 0.2 N €607.00
3511004 Standard 3 mm 0.01 mm 40 mm 0 - 50 - 100 1 mm 36 mm 0.2 N €614.00
3511005 Standard 0.6 mm 0.002 mm 27 mm 0 - 5 - 10 0.1 mm 18 mm 0.3 N €623.00
3511006 Standard 0.6 mm 0.002 mm 40 mm 0 - 5 - 10 0.1 mm 18 mm 0.3 N €628.00
3511007 Standard 1.2 mm 0.002 mm 40 mm 0 - 10 - 20 0.2 mm 36 mm 0.2 N €635.00
3511008 Standard 0.6 mm 0.001 mm 40 mm 0 - 5 - 10 0.1 mm 18 mm 0.3 N €637.00

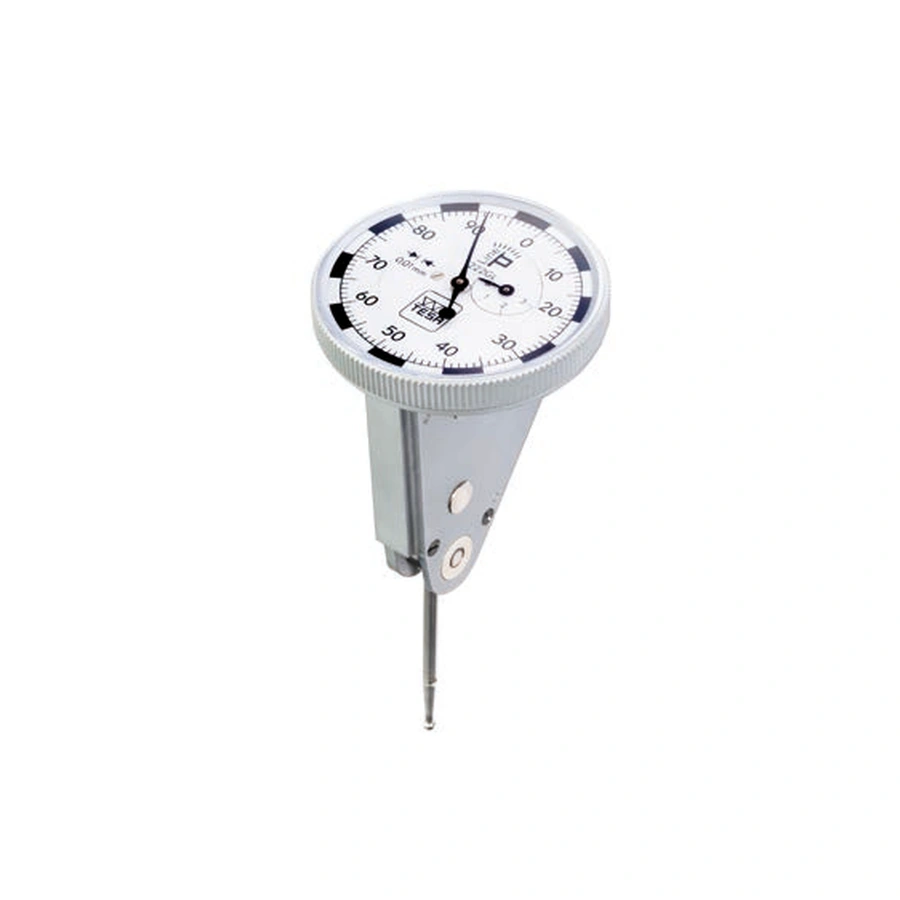

018130100 Vertikal 0,2 mm 0,002 mm 38 mm 40-0-40 16,0 mm 0,16 N Price on request

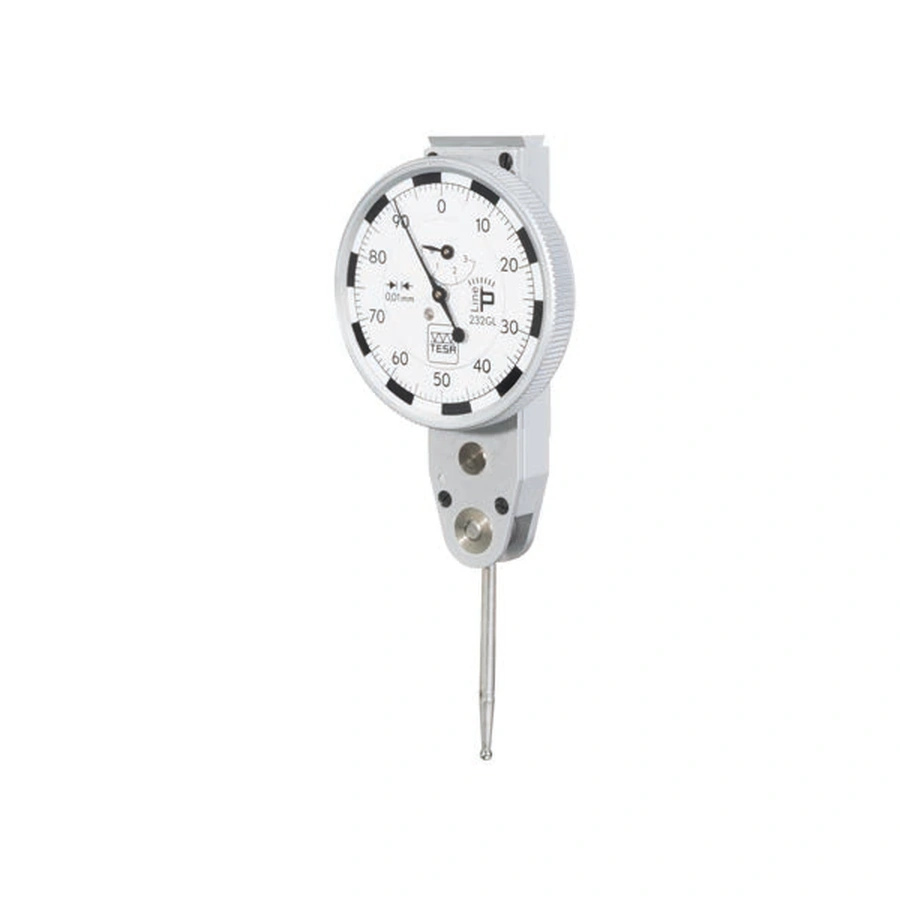

018130200 Lateral 0,2 mm 0,002 mm 38 mm 40-0-40 15,2 mm 0,16 N Price on request
