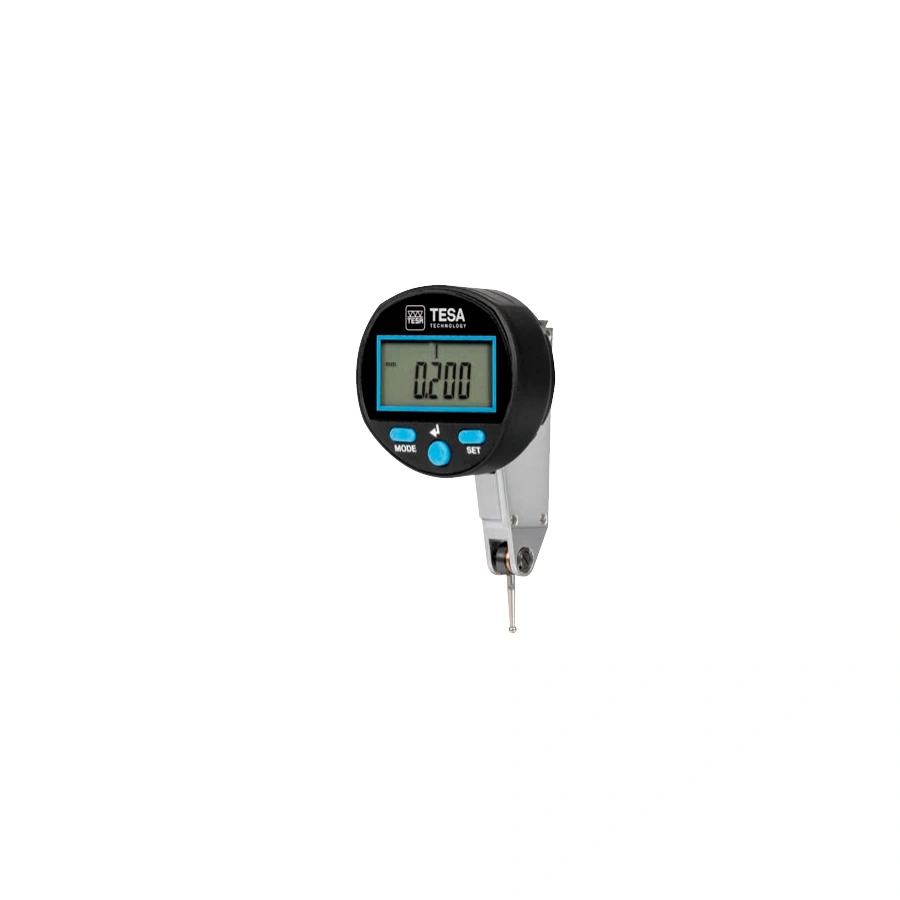

TESA – DIALTRONIC BT
DIALTRONIC electronic lever test indicators
Digital lever test indicator with Bluetooth data transmission and selectable resolution.
- For comparative, run-out and alignment measurements
- Measuring range: 0.8 mm
- Resolution: 0,001 / 0,01 mm
- One clearly defined version
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
Digital lever test indicator with Bluetooth data transmission and selectable resolution.
Dial gauges, precision comparators and test indicators display small displacement or dimensional deviations relative to a set reference. They are used in stands, inspection fixtures and directly on machines.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Measuring range: 0.8 mm
- Resolution: 0,001 / 0,01 mm
- One clearly defined version
Typical applications
Typical applications include radial and axial run-out checks, alignment, centring, height comparison and monitoring small movements. Measuring range, resolution, contact arrangement and protection class must suit the inspection task.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements.
Article variants
Select the suitable version
| Ballbach item no. | Version | Measuring range | Resolution | Error limit | Measuring force | Repeatability | Protection class | Data interface | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3501001 | TESA DIALTRONIC BT | 0,8 mm | 0,001 / 0,01 mm | 3 µm | 0,15 N | 1 µm | IP54 | Bluetooth® / Kabel | €1,049.00 | ||
3501001 – Additional information about this version
TESA DIALTRONIC electronic lever test indicator is a version of the DIALTRONIC electronic lever test indicators product family. Technical features: Measuring range: 0,8 mm; Resolution: 0,001 / 0,01 mm. |
|||||||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
Accessories
Suitable additions
Mounting stem with dovetail clamp Ø 4 mm
Mounting stem with dovetail clamp Ø 4 mm. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 4 mm.
Ballbach item no. 3500115
Mounting stem with dovetail clamp Ø 8 mm
Mounting stem with dovetail clamp Ø 8 mm. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 mm.
Ballbach item no. 3500116
Cylindrical clamping stem with clamping pin
Cylindrical clamping stem with clamping pin. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 x 80 mm / Ø 5,6 mm.
Ballbach item no. 3500117
Short swivel holder
Short swivel holder. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 x 25 mm.
Ballbach item no. 3500119
Long swivel holder
Long swivel holder. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 x 90 mm.
Ballbach item no. 3500120
Angle holder with cylindrical stem
Angle holder with cylindrical stem. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 x 25 mm / Bohrung Ø 8 mm.
Ballbach item no. 3500121
Centring bracket for TESATAST / SWISSTAST perpendicular
Centring bracket for TESATAST / SWISSTAST perpendicular. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 x 25 mm / Ø 4 mm.
Ballbach item no. 3500122
Clamp with dovetail clamping point
Clamp with dovetail clamping point. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 5,6 mm.
Ballbach item no. 3500123
Long swivel holder with fine adjustment
Long swivel holder with fine adjustment. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 8 x 125 mm.
Ballbach item no. 3500124
Mounting stem with dovetail clamp Ø 6 mm
Mounting stem with dovetail clamp Ø 6 mm. Accessory for TESATAST, SWISSTAST and compatible dial indicators. Dimensions: Ø 6 mm.
Ballbach item no. 3500125
TESATAST-Tasteinsatz HM-Kugel Ø 1 mm
TESATAST-Tasteinsatz HM-Kugel Ø 1 mm
Ballbach item no. 3500201
TESATAST-Tasteinsatz HM-Kugel Ø 2 mm
TESATAST-Tasteinsatz HM-Kugel Ø 2 mm
Ballbach item no. 3500202
TESATAST-Tasteinsatz HM-Kugel Ø 3 mm
TESATAST-Tasteinsatz HM-Kugel Ø 3 mm
Ballbach item no. 3500203
Contact point 36.53 mm, Carbide ball Ø 1 mm
Contact point for TESATAST and SWISSTAST with 36.53 mm length, carbide ball Ø 1 mm and M 1.4 thread.
Ballbach item no. 3500204
Contact point 36.53 mm, Carbide ball Ø 2 mm
Contact point for TESATAST and SWISSTAST with 36.53 mm length, carbide ball Ø 2 mm and M 1.4 thread.
Ballbach item no. 3500205
Contact point 36.53 mm, Carbide ball Ø 3 mm
Contact point for TESATAST and SWISSTAST with 36.53 mm length, carbide ball Ø 3 mm and M 1.4 thread.
Ballbach item no. 3500206
Schlüssel für Tasteinsätze
Schlüssel für Tasteinsätze
Ballbach item no. 3500207
Contact point 12.53 mm, Ruby ball Ø 1 mm
Contact point for TESATAST and SWISSTAST with 12.53 mm length, ruby ball Ø 1 mm and M 1.4 thread.
Ballbach item no. 3500301
Contact point 12.53 mm, Ruby ball Ø 2 mm
Contact point for TESATAST and SWISSTAST with 12.53 mm length, ruby ball Ø 2 mm and M 1.4 thread.
Ballbach item no. 3500302
Contact point 12.53 mm, Ruby ball Ø 3 mm
Contact point for TESATAST and SWISSTAST with 12.53 mm length, ruby ball Ø 3 mm and M 1.4 thread.
Ballbach item no. 3500303
Contact point 36.53 mm, Ruby ball Ø 1 mm
Contact point for TESATAST and SWISSTAST with 36.53 mm length, ruby ball Ø 1 mm and M 1.4 thread.
Ballbach item no. 3500304
Contact point 36.53 mm, Ruby ball Ø 2 mm
Contact point for TESATAST and SWISSTAST with 36.53 mm length, ruby ball Ø 2 mm and M 1.4 thread.
Ballbach item no. 3500305
