Standard-Messuhren
Standard dial indicators
Mechanical dial indicators with measuring ranges from 5 to 100 mm and different bezel diameters.
- For comparative, run-out and alignment measurements
- Measuring range: 5–100 mm
- Graduation: 0.005–0.01 mm
- Standard: DIN EN ISO 463
- Choice of 16 versions
Non-binding net prices for business customers. Data are maintained automatically; only our checked quotation or order confirmation is binding.
Item numbers from technical documents and accessory lists can be copied or entered here directly for searching.
Product description
Technology and application at a glance
Open this section for the complete technical and practical details.
Show full description Close description
Application and measuring principle
Mechanical dial indicators with measuring ranges from 5 to 100 mm and different bezel diameters.
Dial gauges, precision comparators and test indicators display small displacement or dimensional deviations relative to a set reference. They are used in stands, inspection fixtures and directly on machines.
Versions and technical selection
The main selection criteria are measuring range, resolution or scale division, measuring geometry, measuring depth and, where applicable, data output. The item variants are compared below with their technical values.
- Measuring range: 5–100 mm
- Graduation: 0.005–0.01 mm
- Standard: DIN EN ISO 463
- Choice of 16 versions
Typical applications
Typical applications include radial and axial run-out checks, alignment, centring, height comparison and monitoring small movements. Measuring range, resolution, contact arrangement and protection class must suit the inspection task.
Advice, calibration and service
Ballbach assists with selecting the suitable version, assigning accessories and assessing the metrological requirements. For suitable instruments, we also provide repair and spare-parts service. A suitable factory calibration can be supplied together with the instrument. DAkkS calibration is available on request where the measurand and version are within the accredited scope.
Article variants
Select the suitable version
| Ballbach item no. | Bezel diameter | Measuring range | Graduation | Per revolution | Shock protection | Net price | Details | Inquiry |
|---|---|---|---|---|---|---|---|---|

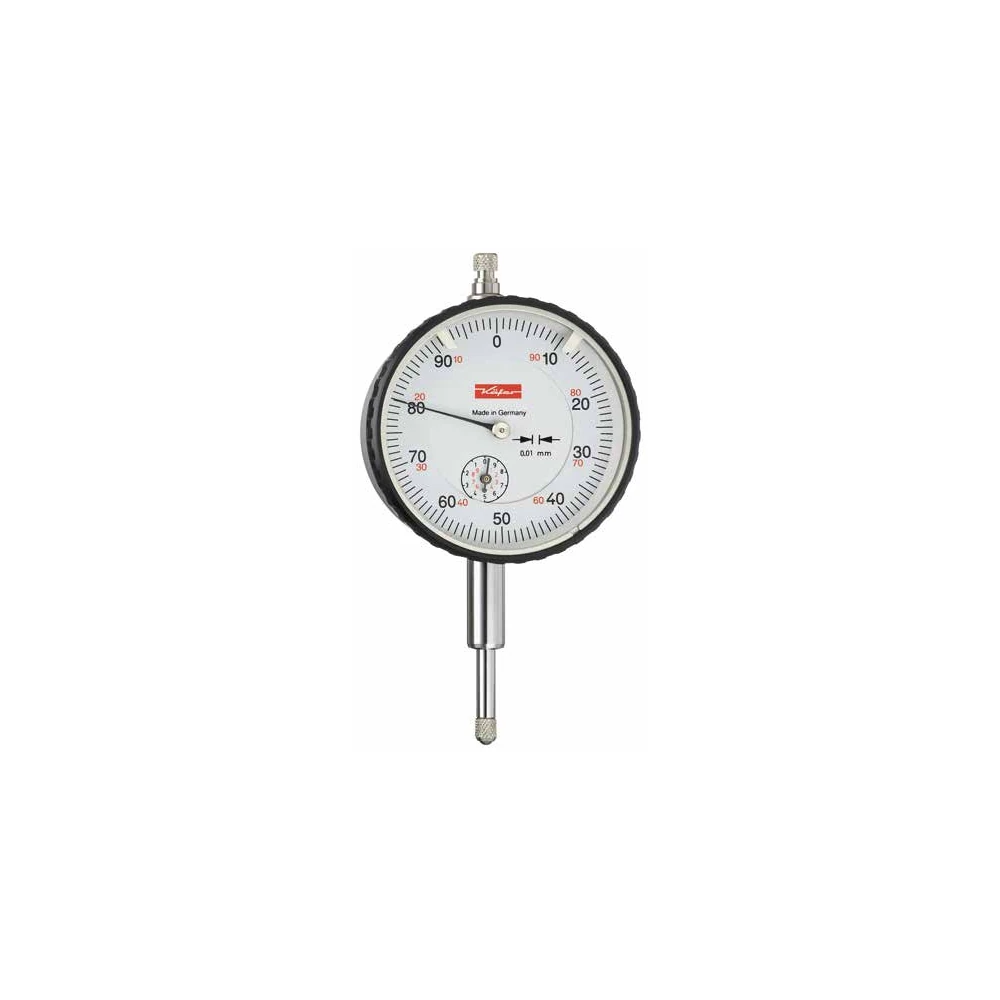

| 3000000 | 58 | 10 | 0,01 | 1 | nein | €59.00 | ||
3000000 – Additional information about this version

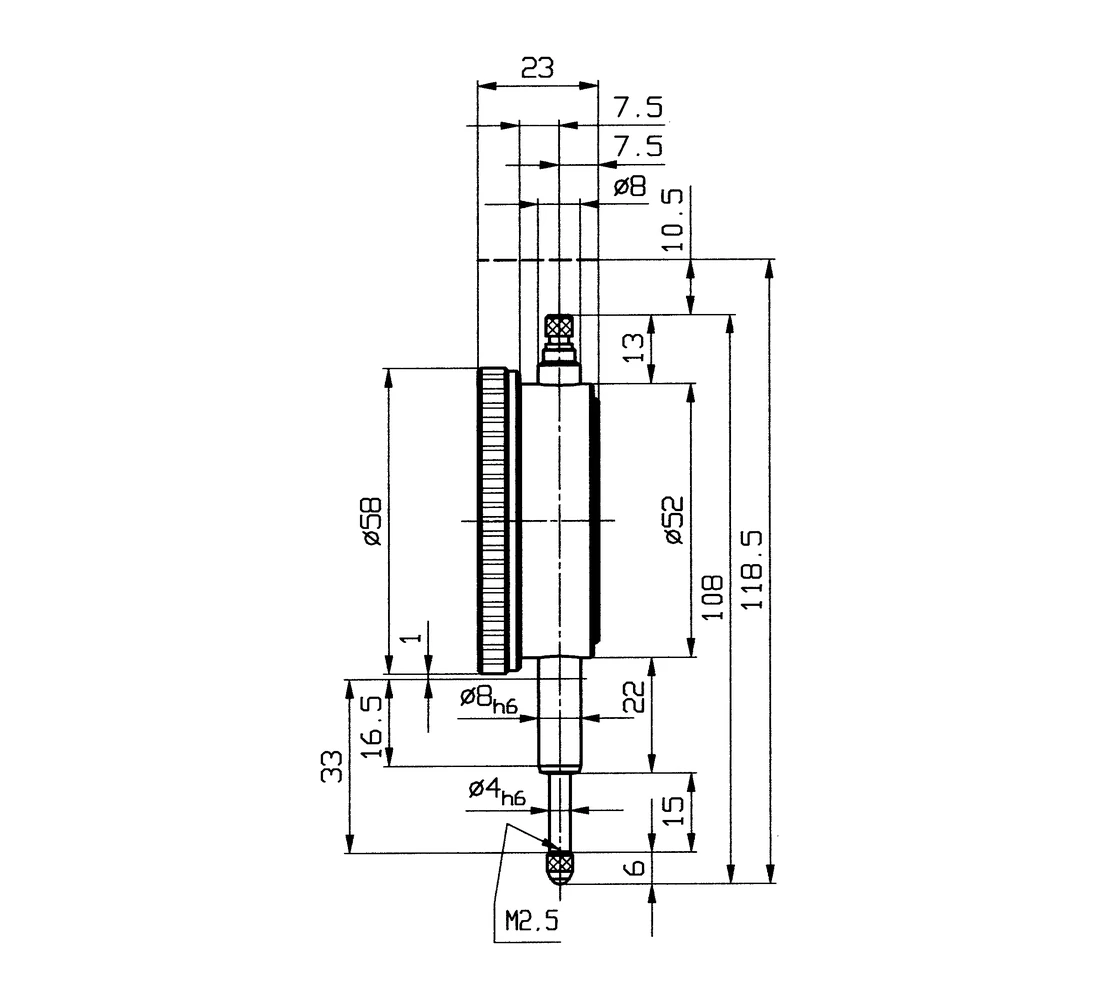

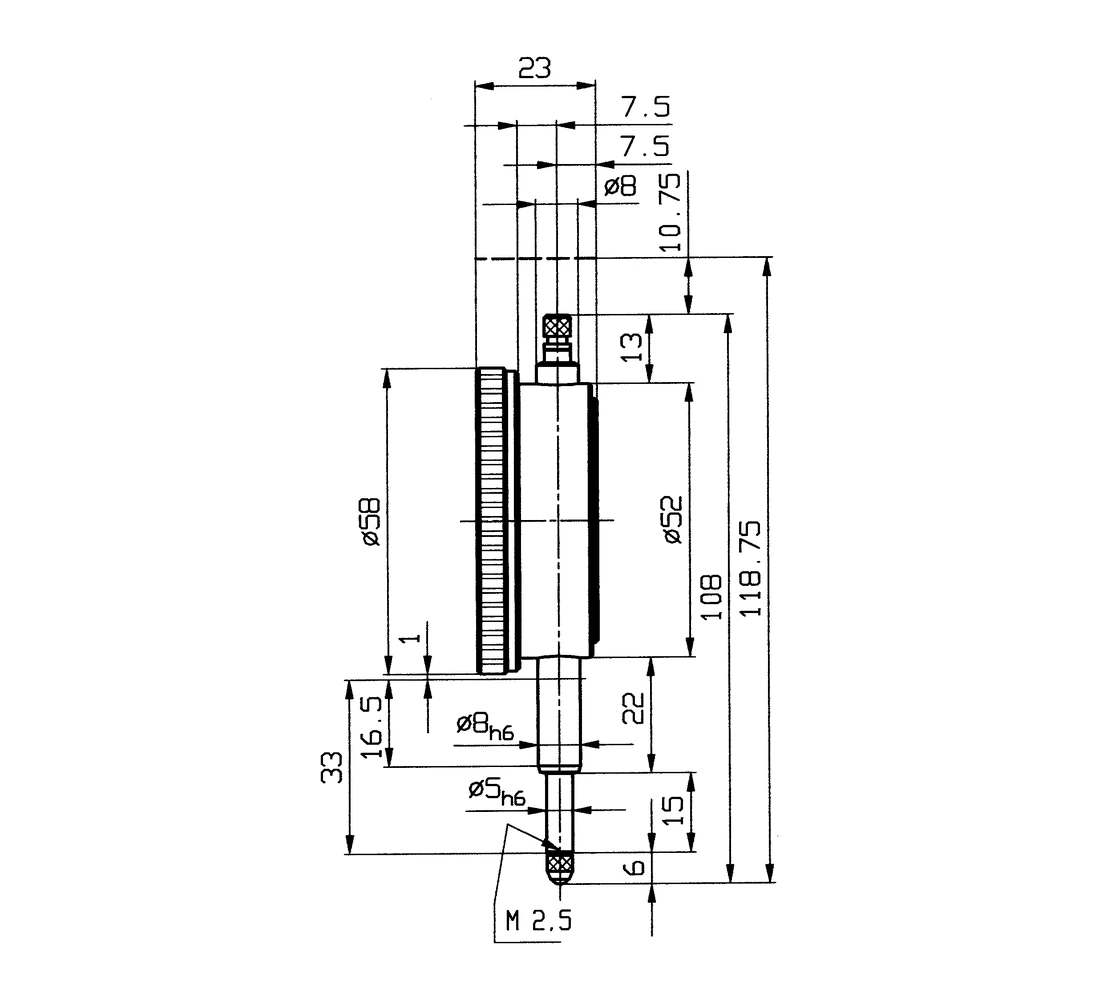

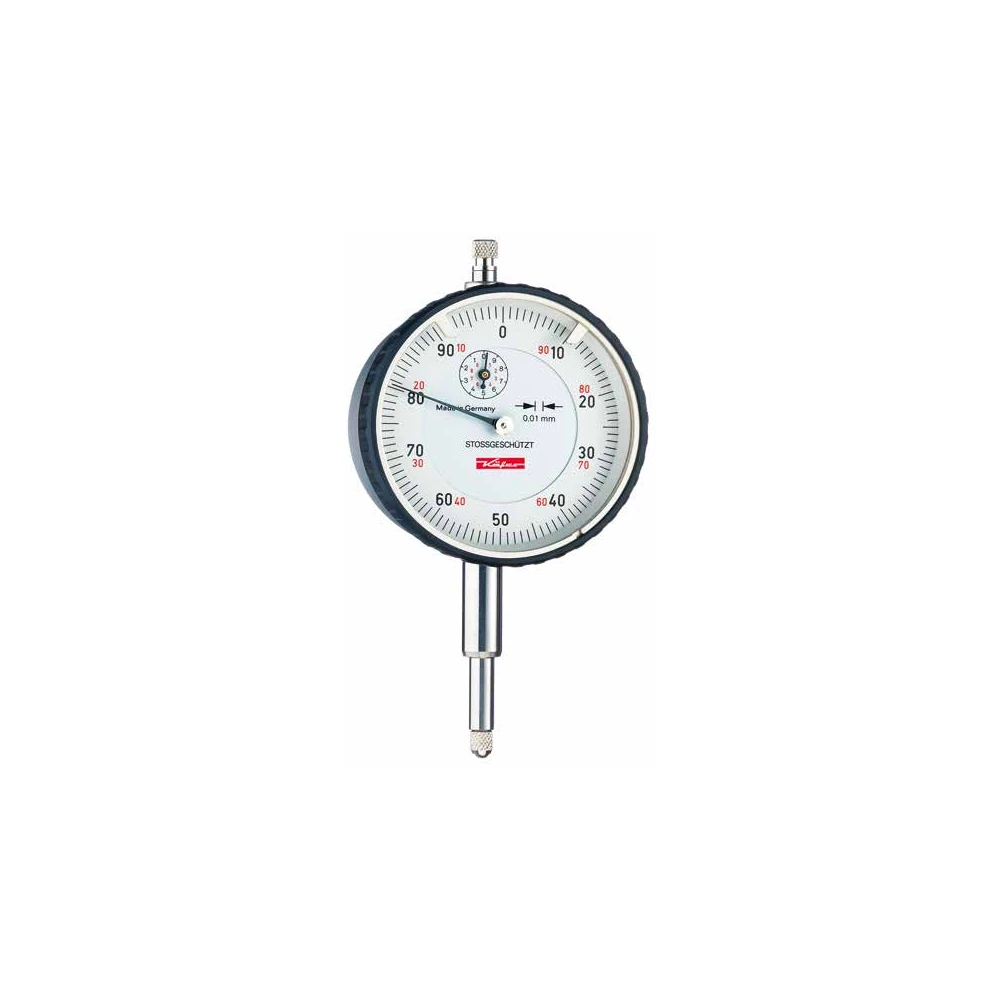

Dial indicator, 10 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 10 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3000001 | 58 | 10 | 0,01 | 1 | nein | €74.00 | ||
3000001 – Additional information about this version
Dial indicator, 10 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 10 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

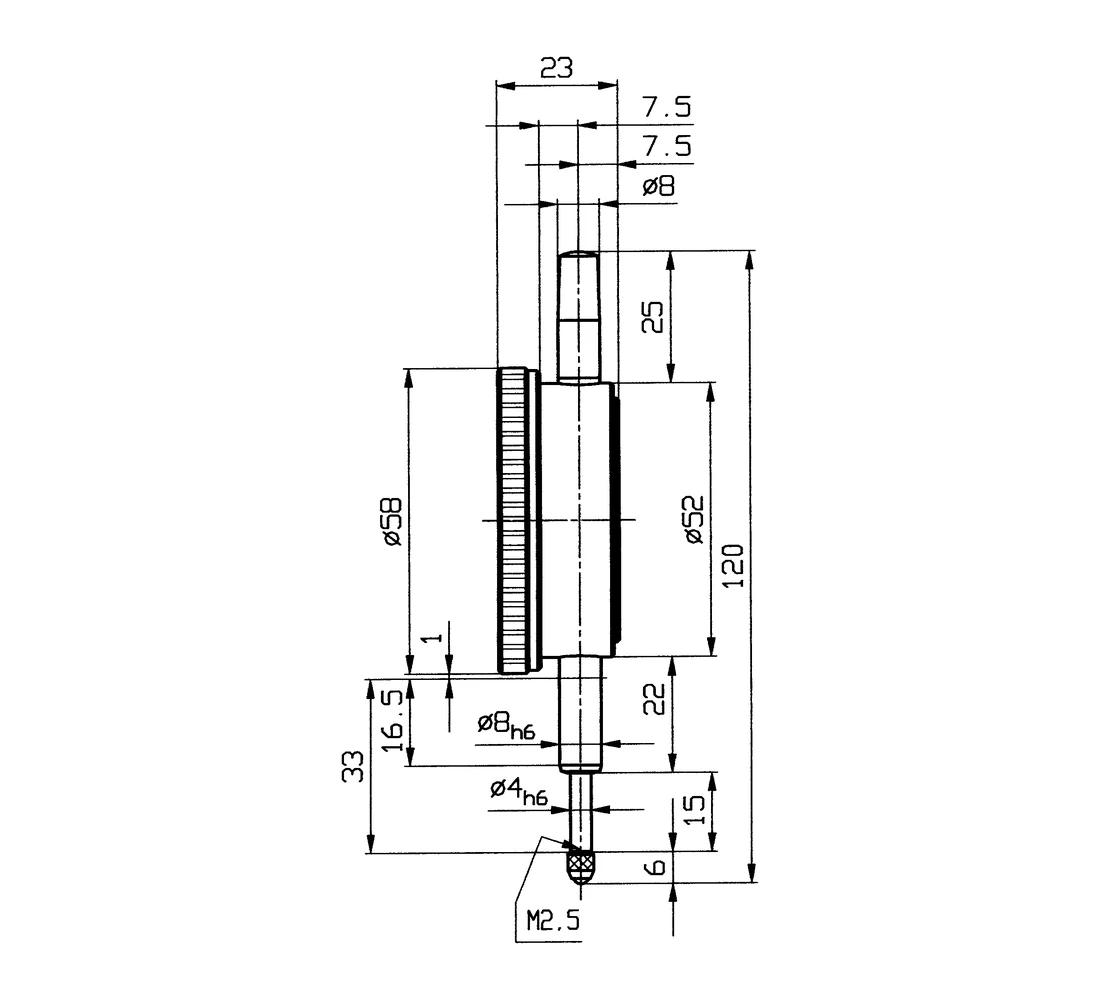

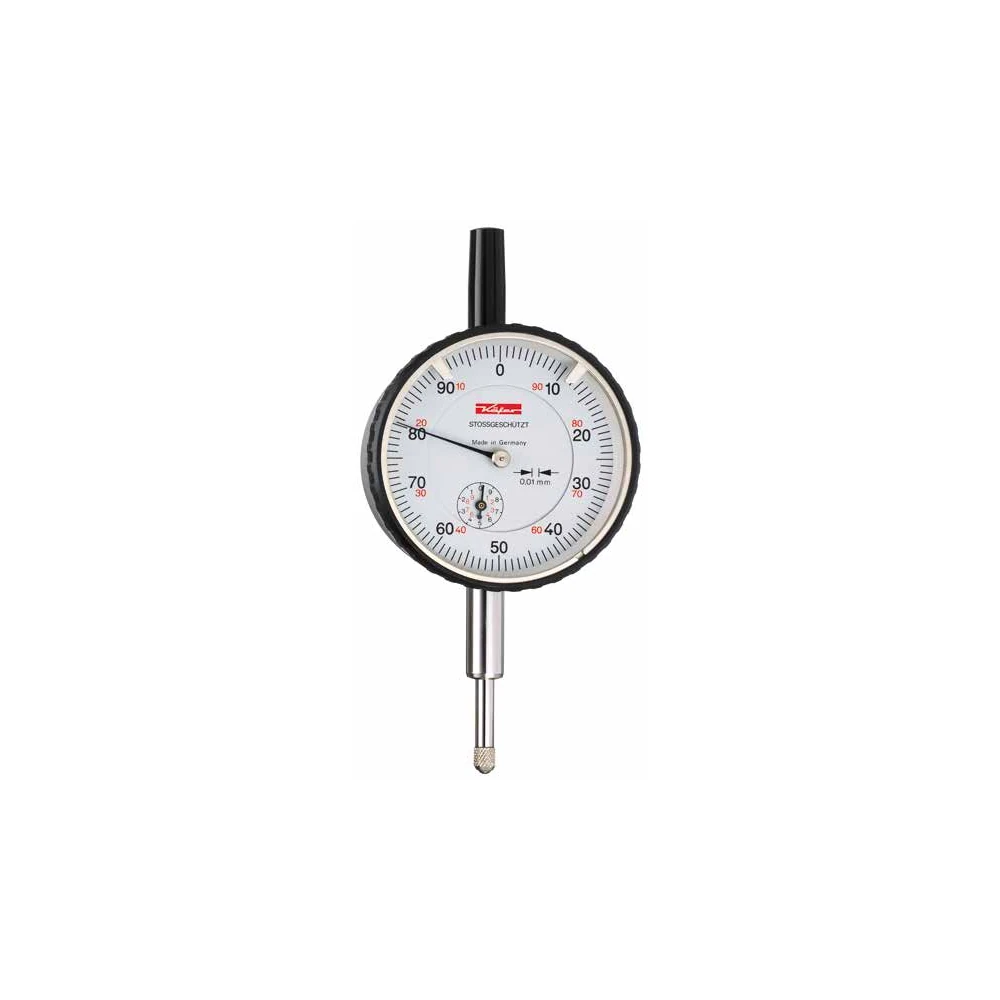

| 3000002 | 58 | 10 | 0,01 | 1 | ja | €106.00 | ||
3000002 – Additional information about this version
Dial indicator, 10 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 10 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3001000 | 58 | 10 | 0,01 | 1 | ja | €69.00 | ||
3001000 – Additional information about this version
Dial indicator, 10 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 10 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

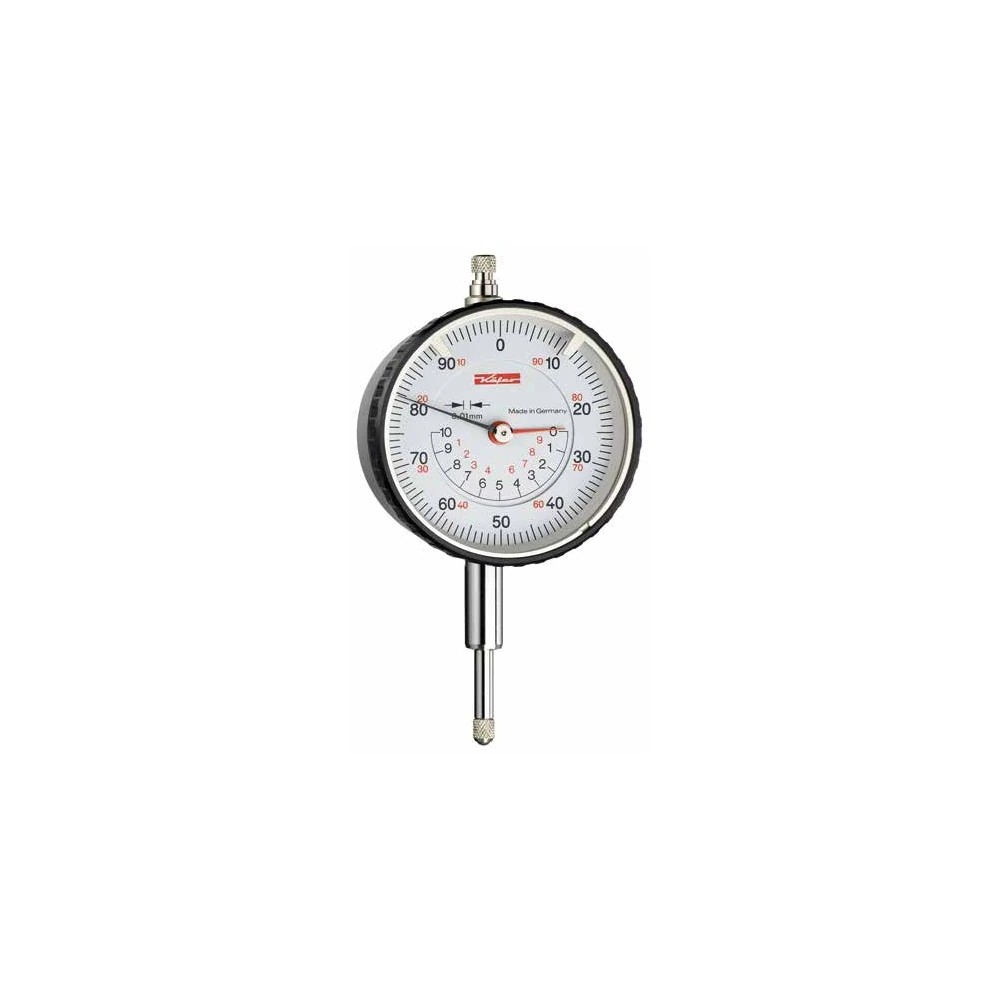

| 3001001 | 58 | 5 | 0,01 | 0,5 | ja | €94.00 | ||
3001001 – Additional information about this version

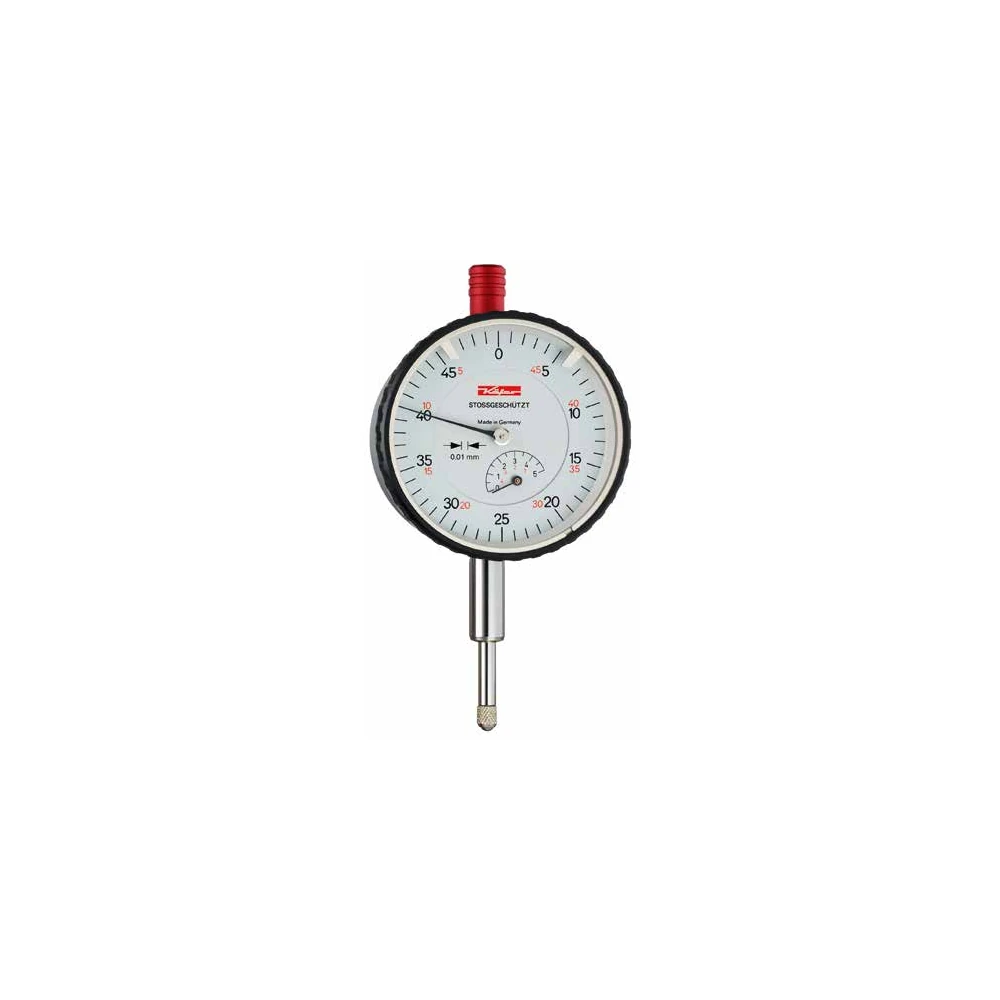

Dial indicator, 5 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 5 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3001002 | 58 | 5 | 0,005 | 0,5 | ja | €94.00 | ||
3001002 – Additional information about this version
Dial indicator, 5 mm range, 0.005 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 5 mm; Graduation: 0,005 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

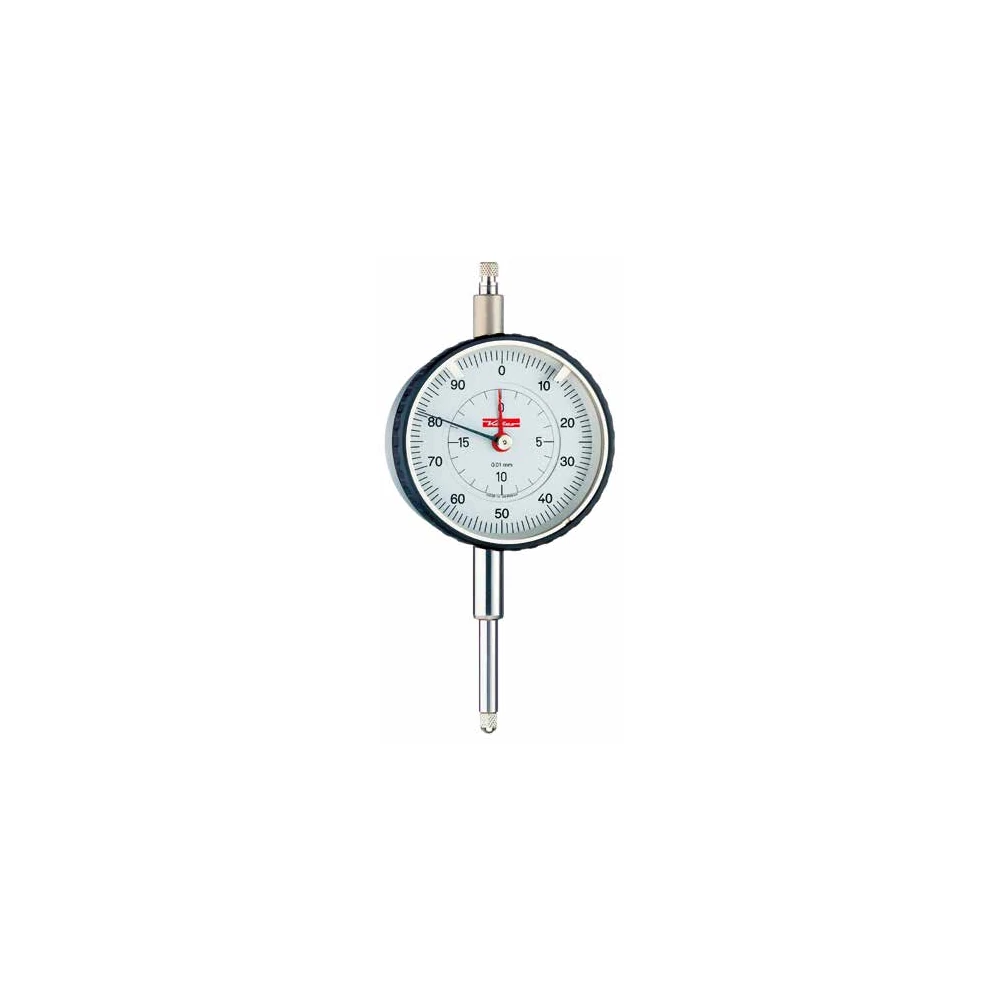

| 3002000 | 58 | 20 | 0,01 | 1 | nein | €114.00 | ||
3002000 – Additional information about this version
Dial indicator, 20 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 20 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3002001 | 58 | 20 | 0,01 | 1 | ja | €125.00 | ||
3002001 – Additional information about this version
Dial indicator, 20 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 20 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

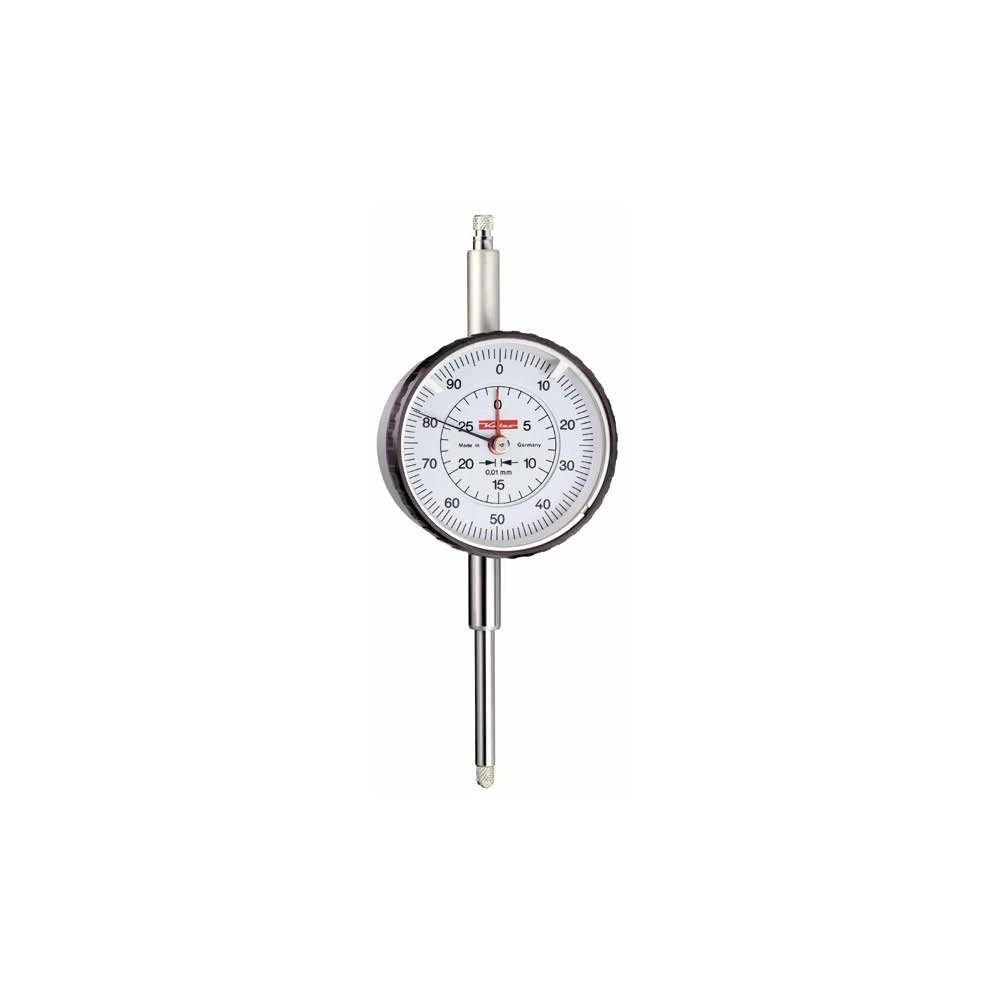

| 3003000 | 58 | 30 | 0,01 | 1 | nein | €122.00 | ||
3003000 – Additional information about this version

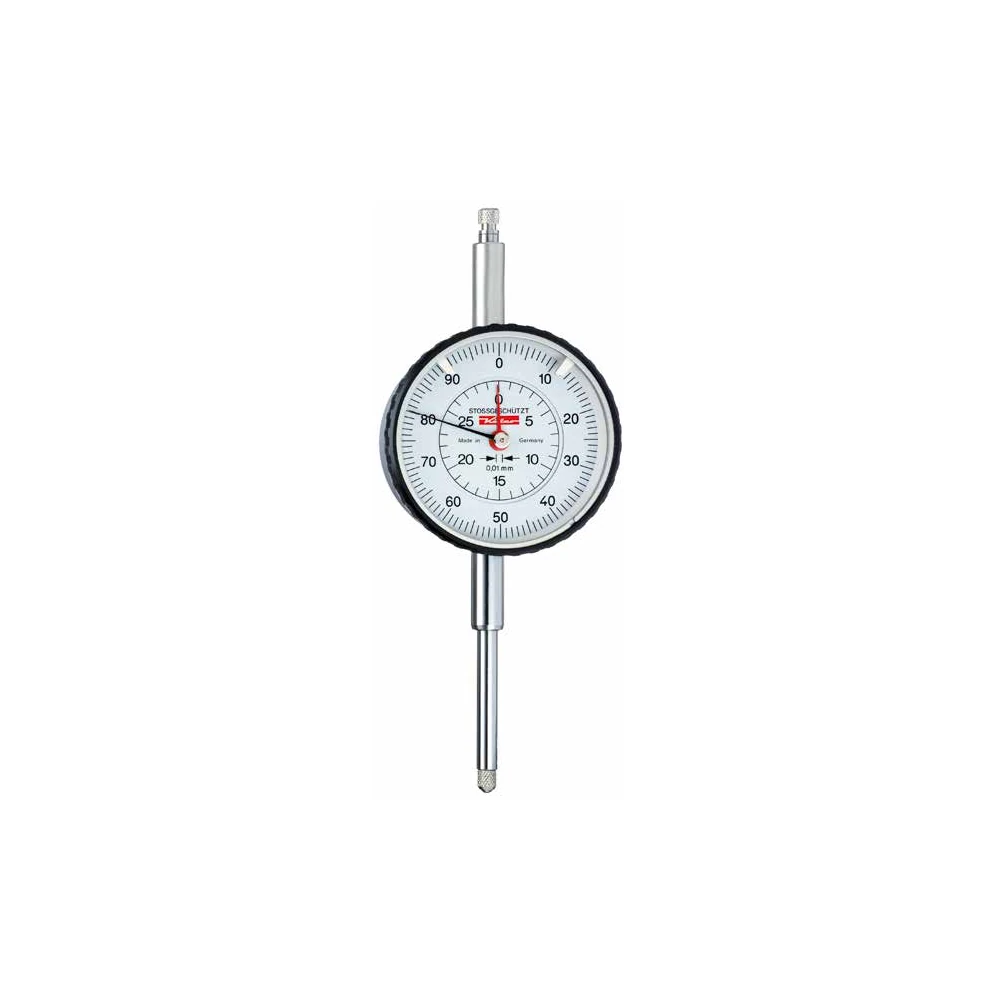

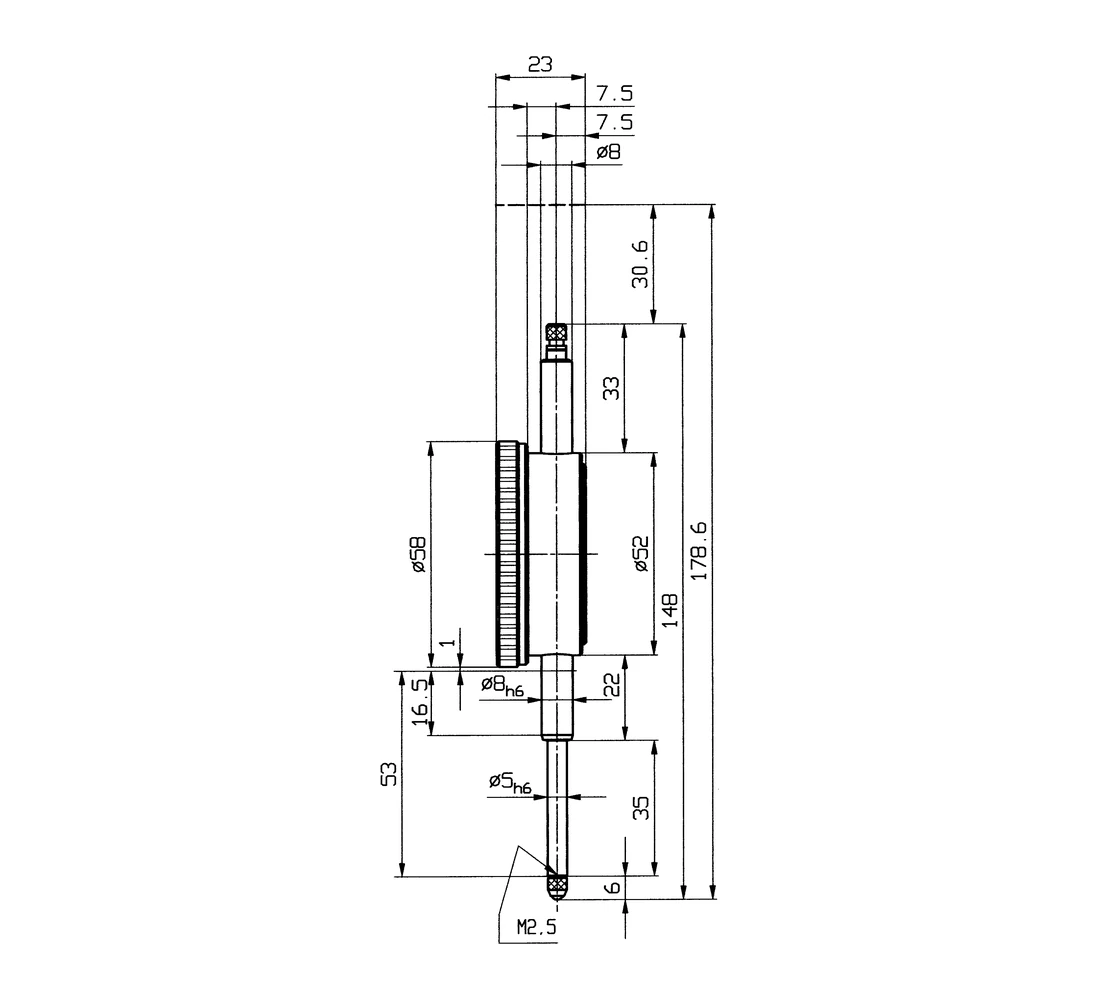

Dial indicator, 30 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 30 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3003001 | 58 | 30 | 0,01 | 1 | ja | €128.00 | ||
3003001 – Additional information about this version
Dial indicator, 30 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 30 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3004000 | 58 | 50 | 0,01 | 1 | nein | €165.00 | ||
3004000 – Additional information about this version

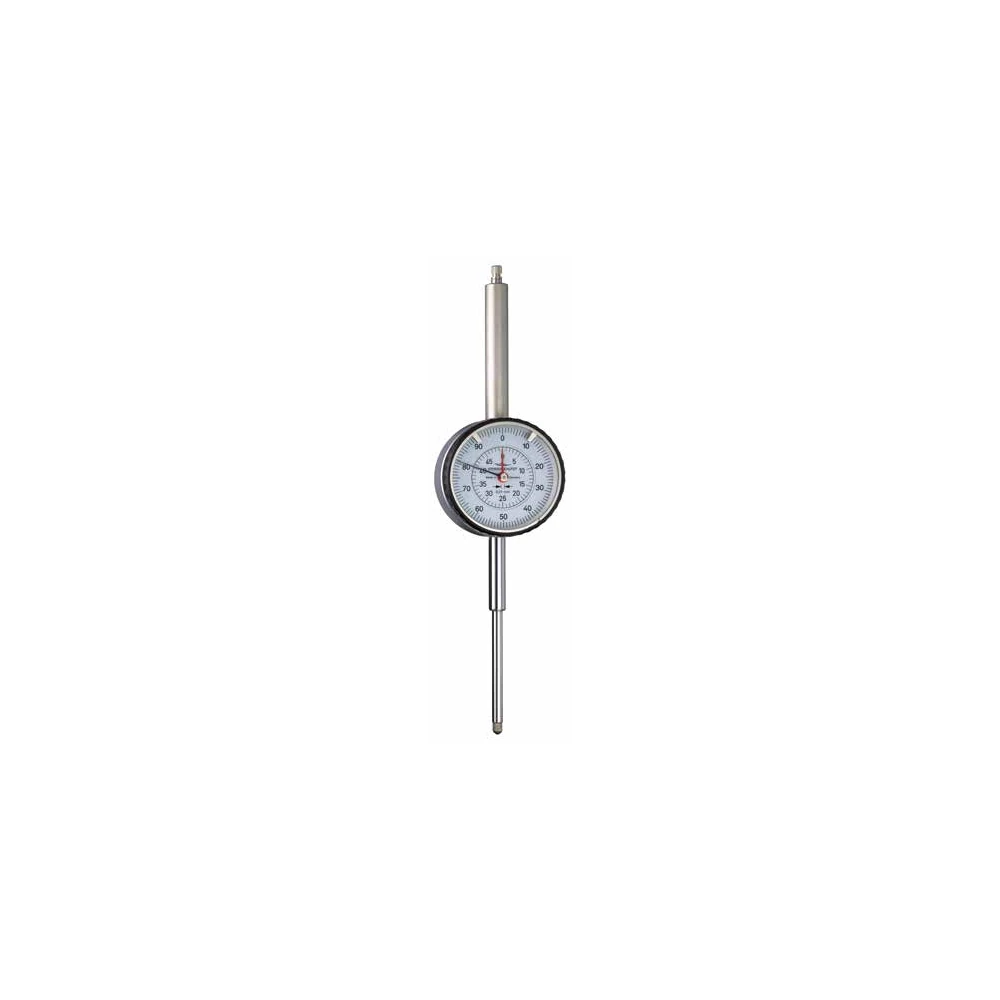

Dial indicator, 50 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 50 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3004001 | 58 | 50 | 0,01 | 1 | ja | €176.00 | ||
3004001 – Additional information about this version
Dial indicator, 50 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 50 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

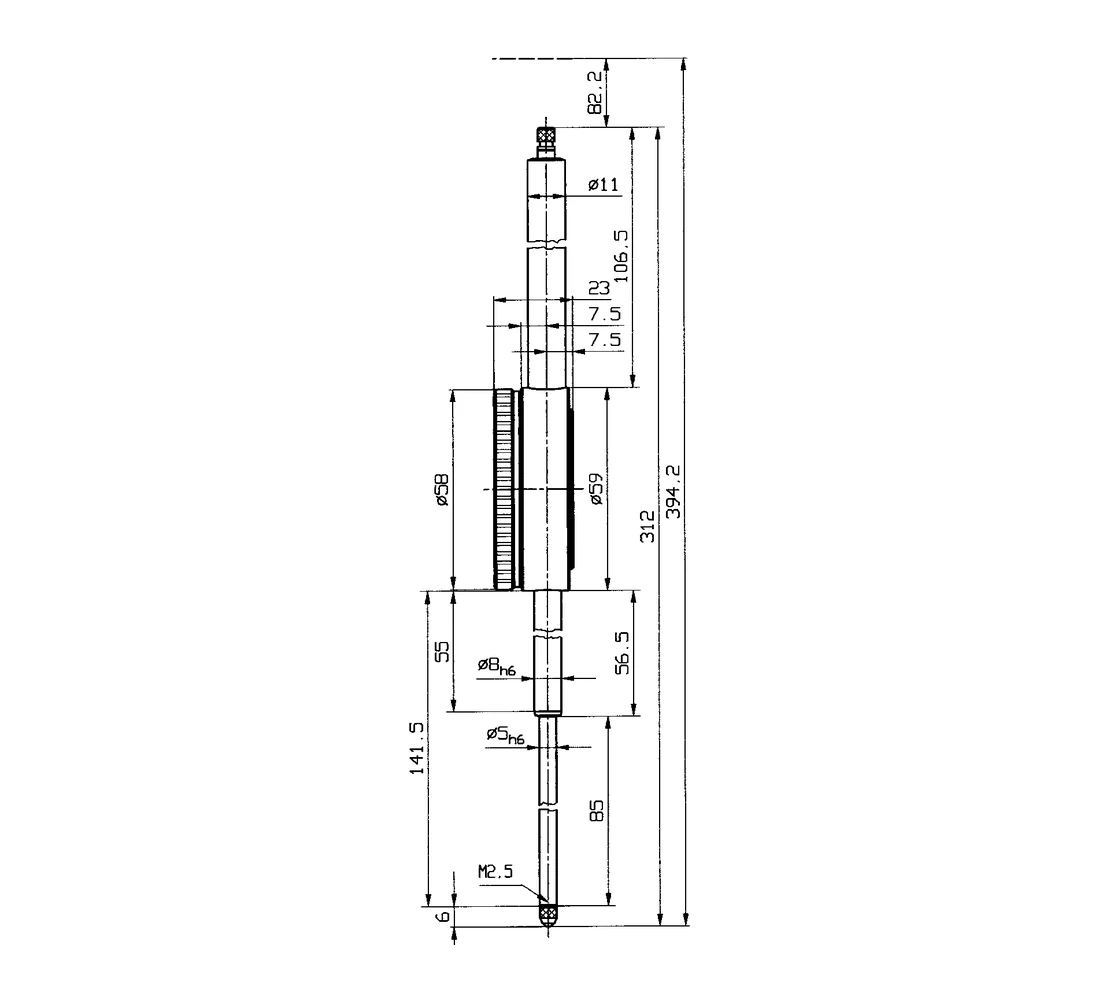

| 3005000 | 58 | 80 | 0,01 | 1 | nein | €338.00 | ||
3005000 – Additional information about this version

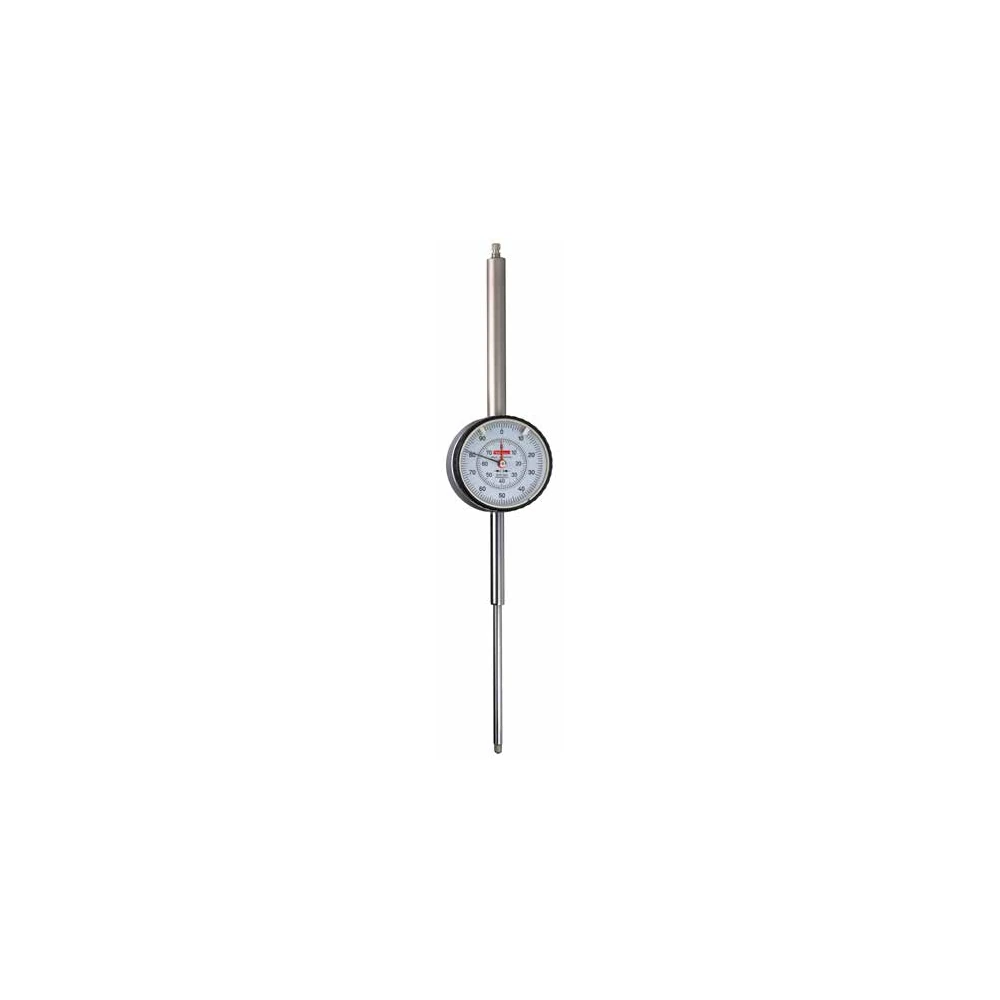

Dial indicator, 80 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 80 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

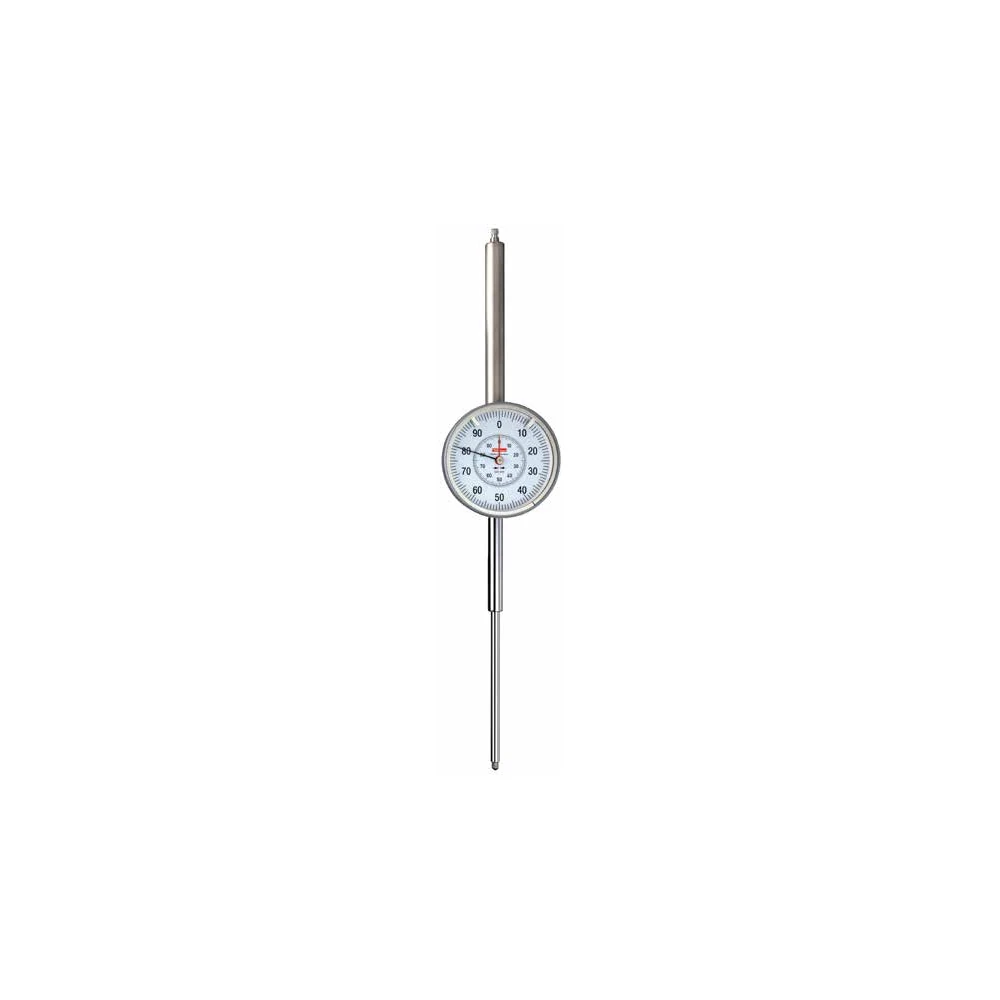

| 3005001 | 80 | 80 | 0,01 | 1 | ja | €349.00 | ||
3005001 – Additional information about this version
Dial indicator, 80 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 80 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
| 3006000 | 58 | 100 | 0,01 | 1 | nein | €430.00 | ||
3006000 – Additional information about this version
Dial indicator, 100 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 100 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||

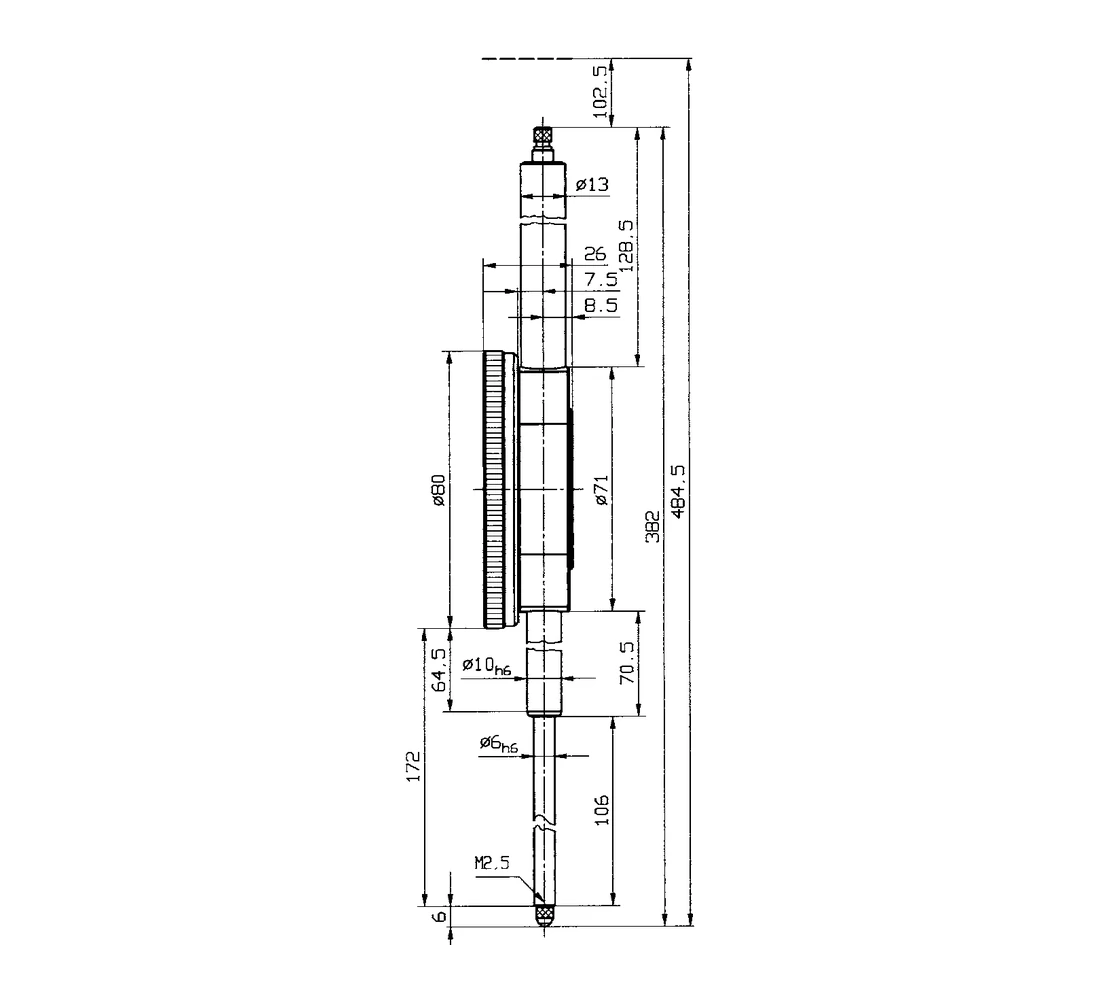

| 3006001 | 80 | 100 | 0,01 | 1 | ja | €461.00 | ||
3006001 – Additional information about this version
Dial indicator, 100 mm range, 0.01 mm graduation is a version of the Standard dial indicators product family. Technical features: Measuring range: 100 mm; Graduation: 0,01 mm; Standard: DIN EN ISO 463; Plunger / clamping stem: Nichtrostender Stahl, gehärtet.
|
||||||||
Our offering is exclusively for business and public-sector customers. All prices are net prices in euros, excluding VAT, packaging and shipping. Prices are imported automatically from product and price master data. Transmission, input, allocation or system errors may occur despite regular checks. The display is not a legal offer; only our individually checked quotation or order confirmation is binding. B2B terms
